Data Center Switchgear
Compare medium- and low-voltage switchgear on voltage class, continuous current, interrupting rating, and internal-arc class. Selection logic and used-market intelligence for data center buyers.
About this Category
Medium- and low-voltage switchgear lineups for utility, industrial, and data center distribution. Verified breaker counts, bus rating, voltage class, and arc-flash documentation across new OEM, refurbished, and used inventory.
Featured Models
The 10 switchgear dossiers to read first, ranked on tracked availability, documented specifications, and published pricing rather than alphabetically. All 41 dossiers in the category are listed further down the page.
- Eaton Corporation plc (Cutler-Hammer/Westinghouse heritage) Magnum DS low-voltage switchgear and breakers — $8K–$22K used · lead time 1-4 weeks (deep dealer stock)
- Eaton Corporation plc Pow-R-Line panelboards and switchboards (category fit flagged) — $675–$8K used · lead time Same-day to 2 weeks
- Eaton Corporation plc (Westinghouse heritage) VacClad-W metal-clad switchgear with VCP-W breakers (5-38 kV) — $4K–$38K used
- Schneider Electric SE (Square D) Masterpact MTZ air circuit breaker (MTZ1/MTZ2/MTZ3) — $2K–$33K used · lead time 1-4 weeks
- Schneider Electric SE (Square D) PowerPact molded case circuit breakers (B/H/J/L/M/P/R frames) — $500–$7K used · lead time Same-day to 2 weeks
- Siemens AG (Smart Infrastructure, Electrical Products) — backlog misattributed SENTRON 3WL air circuit breaker (phase-out October 2026) — 630-6,300 A · $5K–$15K used
- ABB Ltd (Electrification) UniGear ZS1 air-insulated switchgear — 4,000 A
- Schneider Electric SE MCset air-insulated metal-clad switchgear (to 17.5/24 kV) — 4,000 A · lead time Repair/quote channel only
- ABB Ltd (Electrification) ZX1.2 gas-insulated switchgear (legacy) — 2,500 A · lead time No used channel (F-gas stranded)
- Eaton Corporation plc Power Xpert XGIS gas-insulated switchgear (ANSI, 38 kV) — 2,500 A · lead time No used channel (sealed SF6 GIS)
Data Center Switchgear Models (41)
Every model below has a specification dossier with verified ratings, pricing context, and lead-time intelligence.

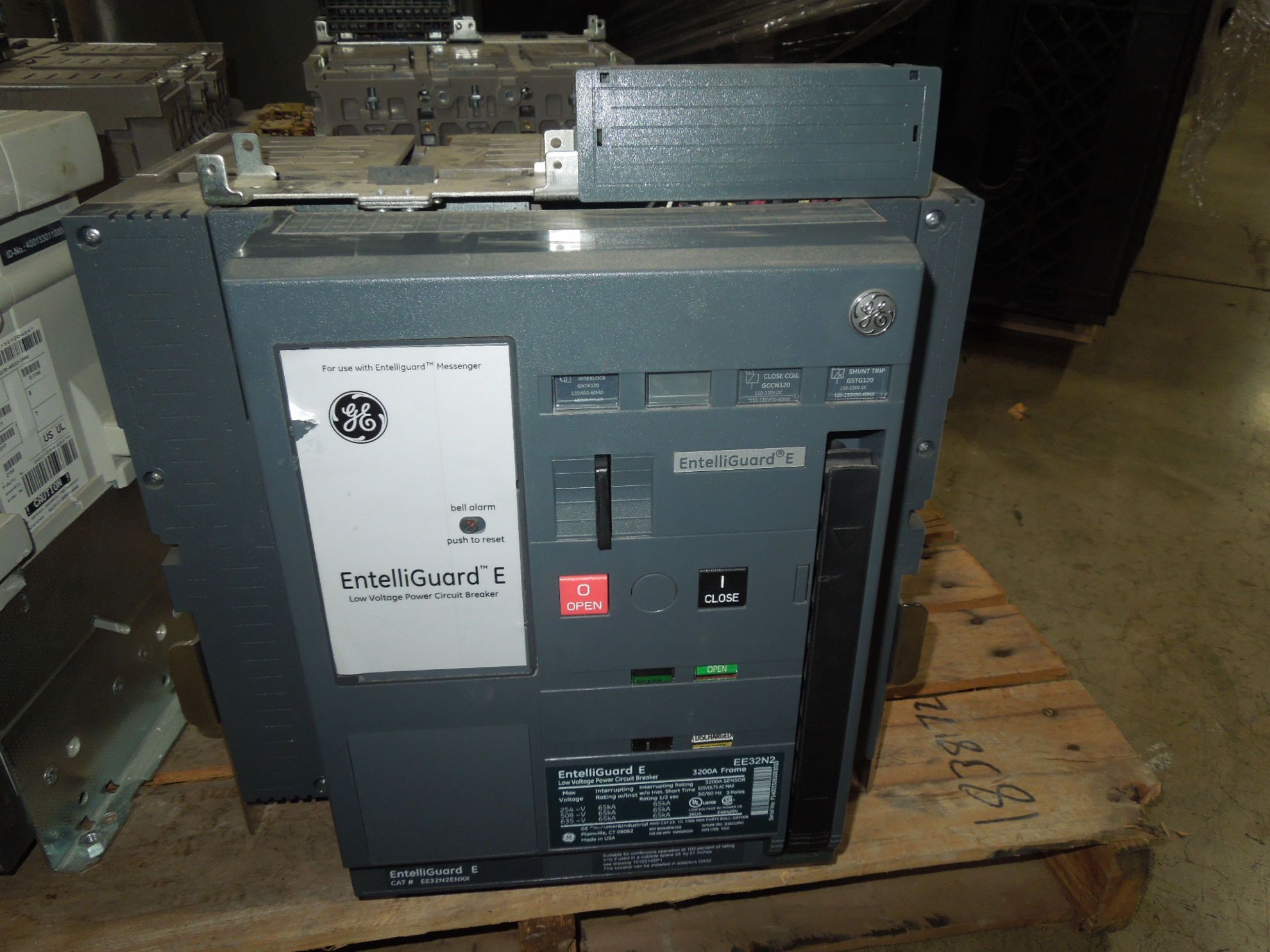

ABB Inc. (ex-GE Industrial Solutions) EntelliGuard E LV power circuit breaker (Entellisys-only) — ABB Inc. (ex-GE Industrial Solutions)
ABB Inc. (ex-GE Industrial Solutions) EntelliGuard G LV power circuit breaker (previous generation) — ABB Inc. (ex-GE Industrial Solutions)
ABB Ltd (Electrification) SafePlus compact gas-insulated switchgear — ABB Ltd (Electrification)

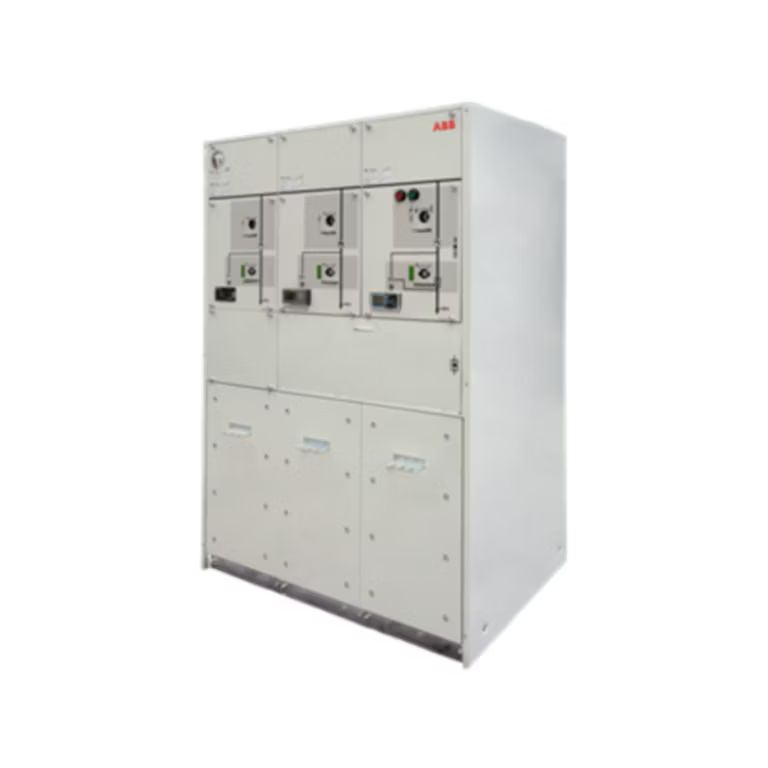

ABB Ltd (Electrification) SafeRing Air ring main unit — ABB Ltd (Electrification)

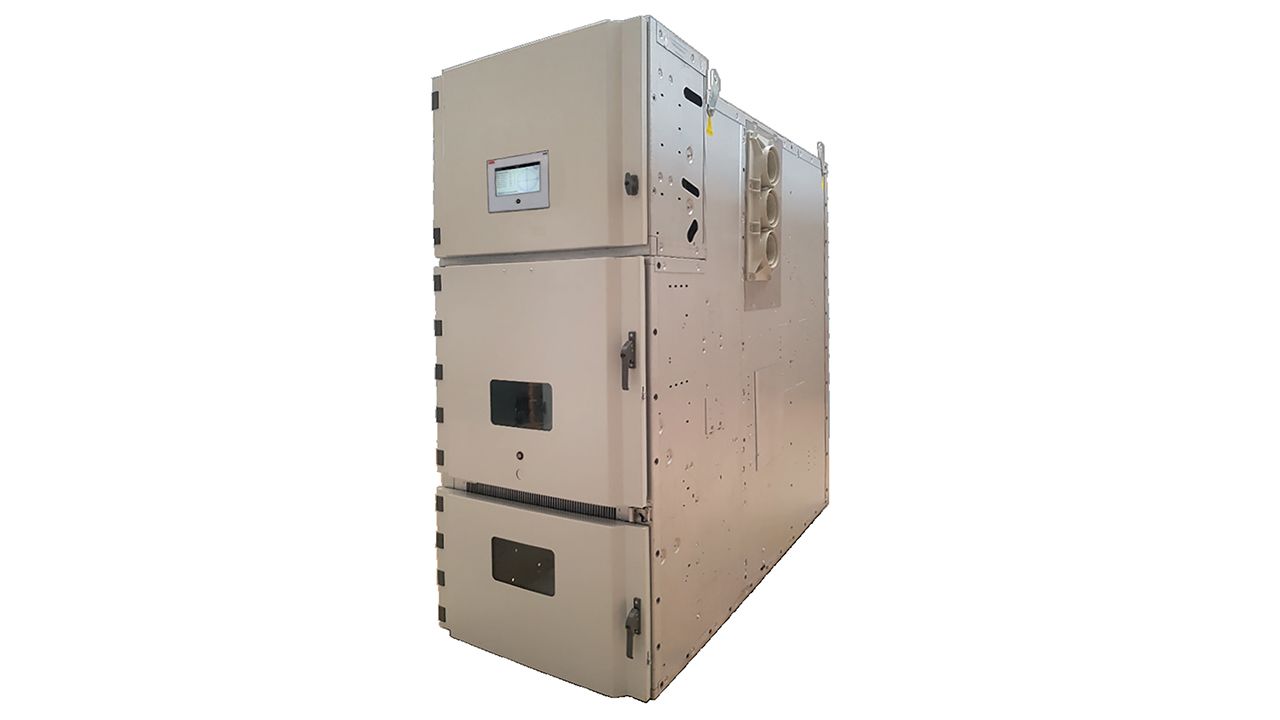

ABB Ltd (Electrification) UniGear Digital (option package across the UniGear family) — ABB Ltd (Electrification)
ABB Ltd (Electrification) UniGear ZS1 air-insulated switchgear — ABB Ltd (Electrification)
ABB Ltd (Electrification) UniGear ZS2 air-insulated switchgear (36 kV) — ABB Ltd (Electrification)

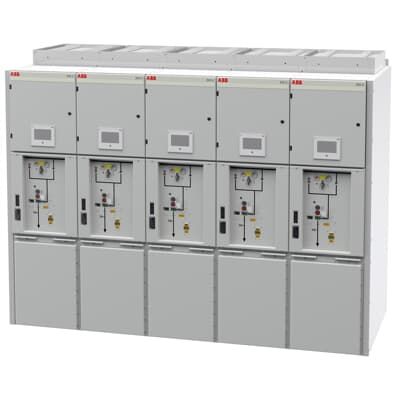

ABB Ltd (Electrification) ZX0 gas-insulated switchgear (legacy; successor PrimeGear ZX0) — ABB Ltd (Electrification)
ABB Ltd (Electrification) ZX1.2 gas-insulated switchgear (legacy) — ABB Ltd (Electrification)

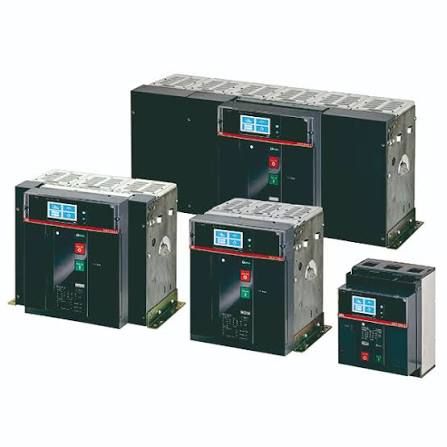

ABB SACE (ABB Group) SACE Emax 2 air circuit breaker (E1.2-E6.2) — ABB SACE (ABB Group)

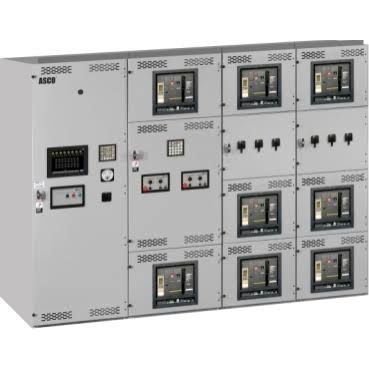

ASCO Power Technologies, a Schneider Electric business 4000 Series generator paralleling switchgear — ASCO Power Technologies, a Schneider Electric business

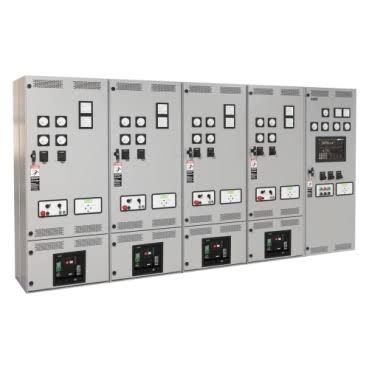

ASCO Power Technologies, a Schneider Electric business 7000 Series Low-Voltage Power Control System — ASCO Power Technologies, a Schneider Electric business
Caterpillar Inc. (Electric Power) EMCP 4.4 Master Control Panel with XLM and EGP switchgear — Caterpillar Inc. (Electric Power)

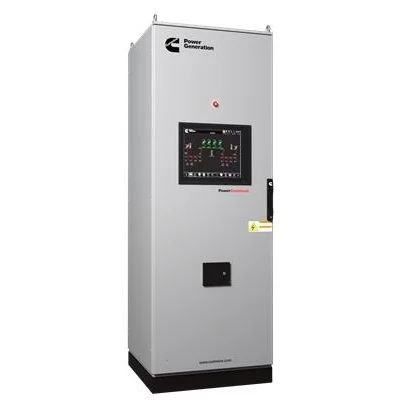

Cummins Inc. (Power Systems) PowerCommand DMC2000/6000/8000 digital master control — Cummins Inc. (Power Systems)

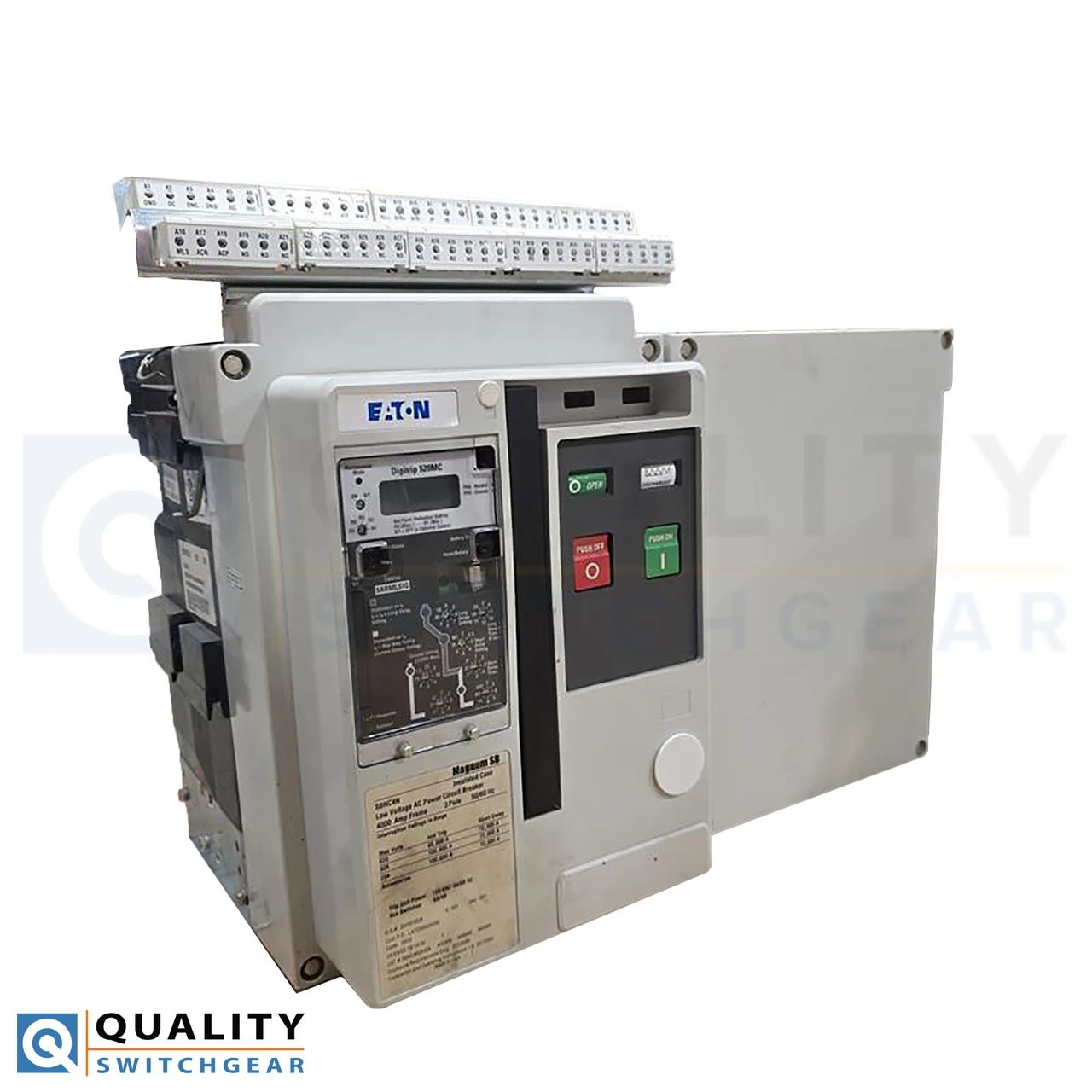

Eaton Corporation plc Magnum SB insulated-case power circuit breaker — Eaton Corporation plc
Eaton Corporation plc Pow-R-Line panelboards and switchboards (category fit flagged) — Eaton Corporation plc

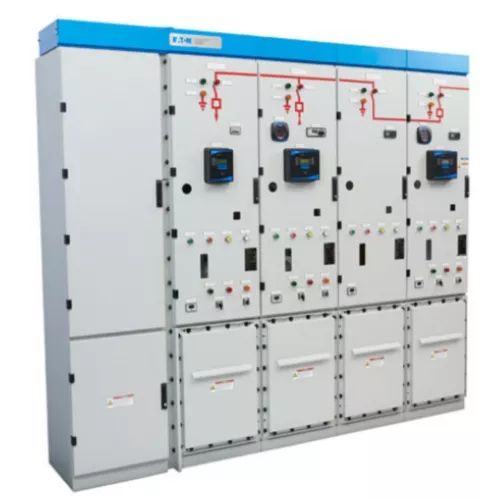

Eaton Corporation plc Power Xpert XGIS gas-insulated switchgear (ANSI, 38 kV) — Eaton Corporation plc

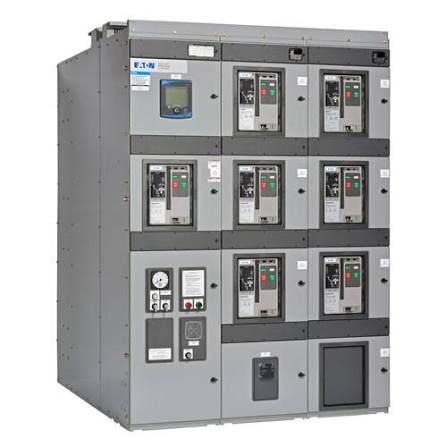

Eaton Corporation plc (Cutler-Hammer/Westinghouse heritage) Magnum DS low-voltage switchgear and breakers — Eaton Corporation plc (Cutler-Hammer/Westinghouse heritage)

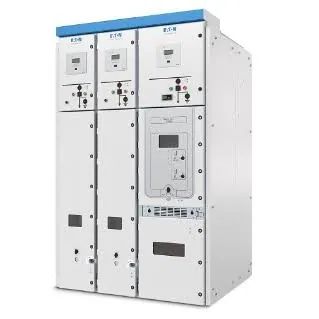

Eaton Corporation plc (EMEA/APAC MV) Power Xpert UX primary switchgear (IEC, to 36 kV via UX 36) — Eaton Corporation plc (EMEA/APAC MV)

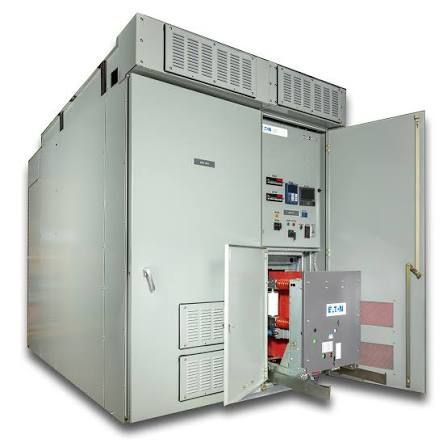

Eaton Corporation plc (Westinghouse heritage) VacClad-W metal-clad switchgear with VCP-W breakers (5-38 kV) — Eaton Corporation plc (Westinghouse heritage)

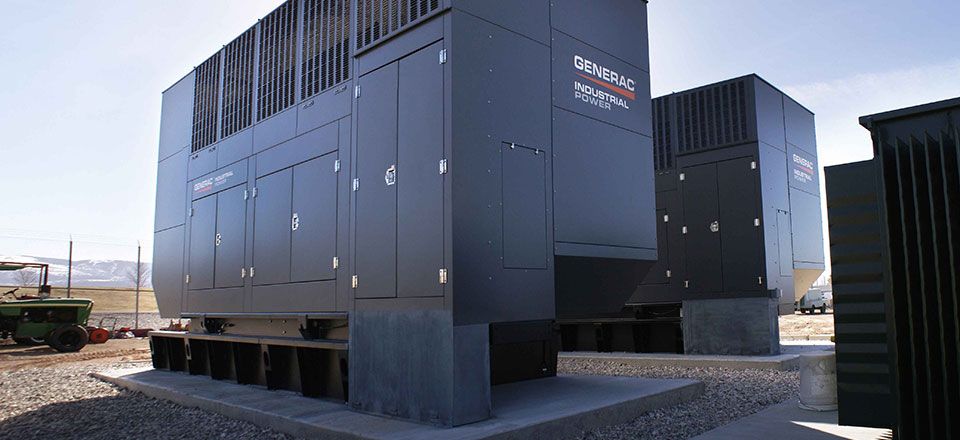

Generac Power Systems, Inc. (Industrial) MPS Modular Power System paralleling (PowerManager legacy branding) — Generac Power Systems, Inc. (Industrial)

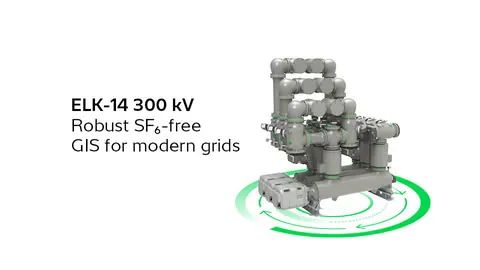

Hitachi Energy Ltd EconiQ eco-efficient portfolio (HV, not MV) — Hitachi Energy Ltd

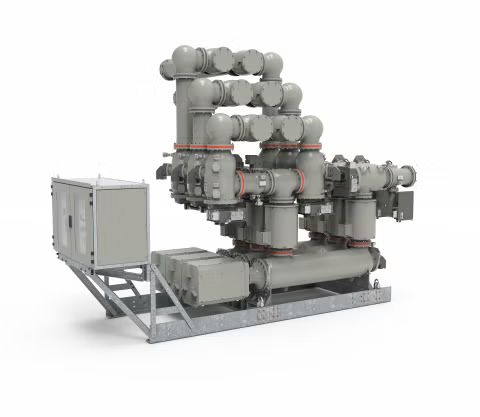

Hitachi Energy Ltd ELK gas-insulated switchgear family (72.5 kV and above) — Hitachi Energy Ltd
Mitsubishi Electric Corporation (Energy Systems) C-GIS cubicle-type gas-insulated switchgear (12-72.5 kV) — Mitsubishi Electric Corporation (Energy Systems)
Powell Industries, Inc. PowlVac metal-clad switchgear (5-38 kV) and PowlVac-AR — Powell Industries, Inc.

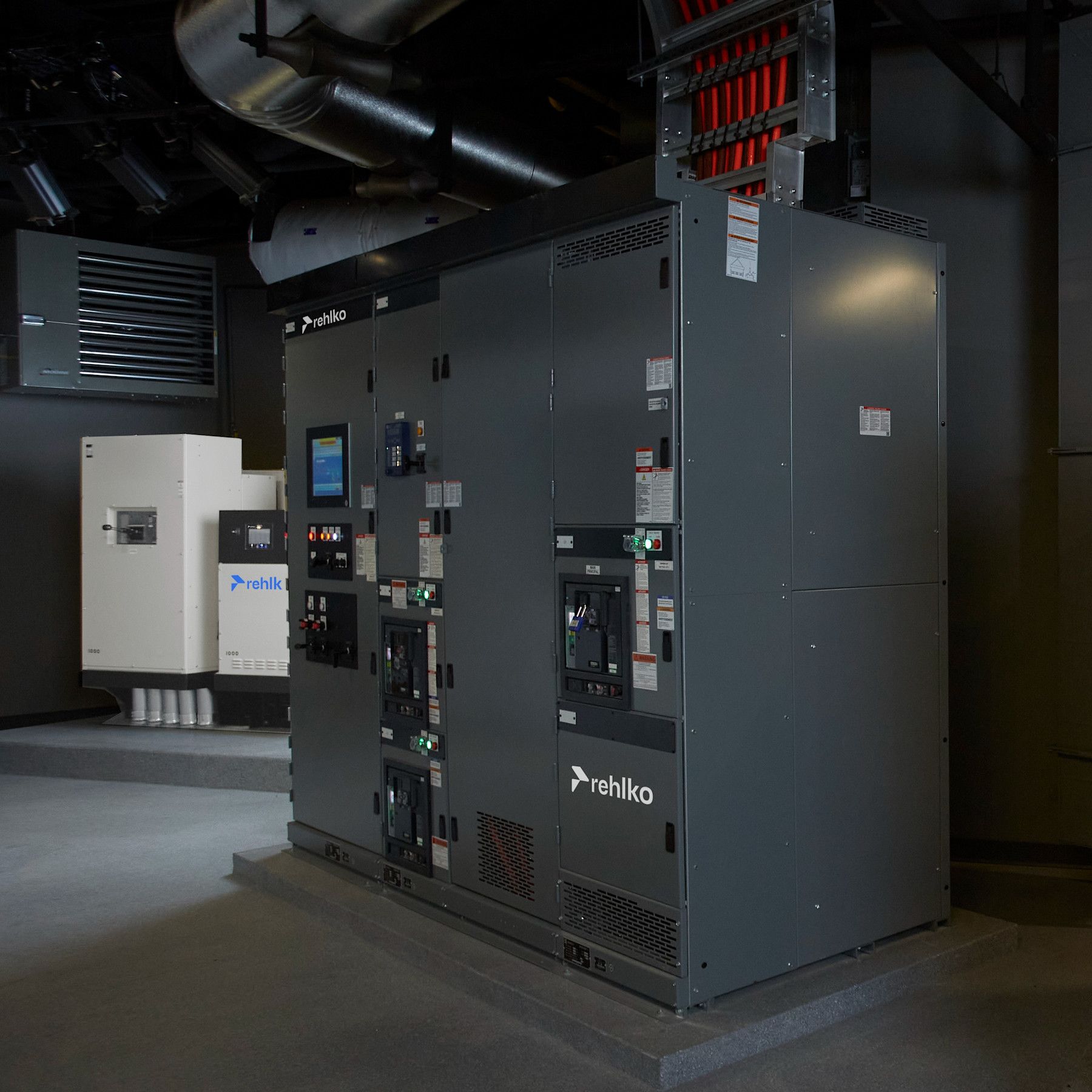

Rehlko (formerly Kohler Energy), Power Systems PD-Series paralleling switchgear (PD-2000/3000/4000) — Rehlko (formerly Kohler Energy), Power Systems

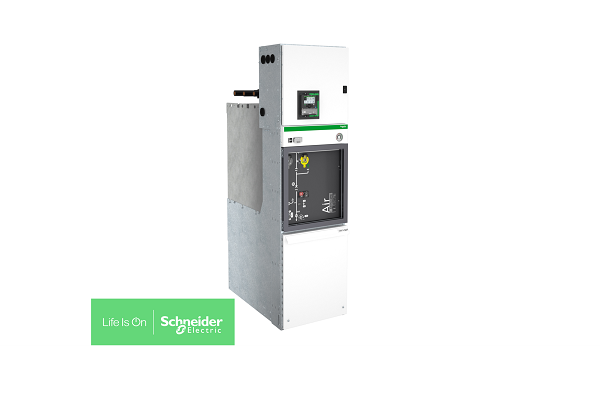

Schneider Electric SE GM AirSeT SF6-free primary GIS — Schneider Electric SE
Schneider Electric SE MCset air-insulated metal-clad switchgear (to 17.5/24 kV) — Schneider Electric SE
Schneider Electric SE PIX air-insulated metal-clad switchgear (to 24 kV) — Schneider Electric SE
Schneider Electric SE Premset shielded-solid-insulation MV switchgear — Schneider Electric SE

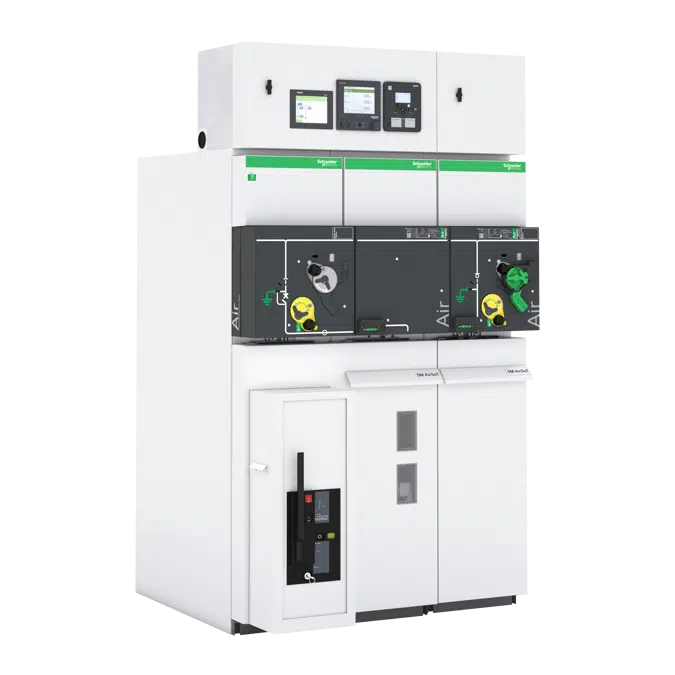

Schneider Electric SE SM AirSeT SF6-free modular switchboard — Schneider Electric SE

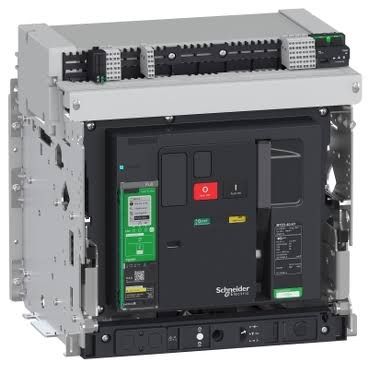

Schneider Electric SE (Square D) Masterpact MTZ air circuit breaker (MTZ1/MTZ2/MTZ3) — Schneider Electric SE (Square D)

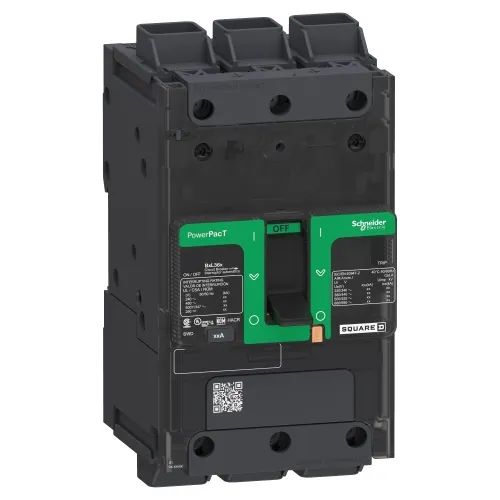

Schneider Electric SE (Square D) PowerPact molded case circuit breakers (B/H/J/L/M/P/R frames) — Schneider Electric SE (Square D)
Siemens AG (Smart Infrastructure, Electrical Products) — backlog misattributed SENTRON 3WA air circuit breaker (current generation) — Siemens AG (Smart Infrastructure, Electrical Products) — backlog misattributed
Siemens AG (Smart Infrastructure, Electrical Products) — backlog misattributed SENTRON 3WL air circuit breaker (phase-out October 2026) — Siemens AG (Smart Infrastructure, Electrical Products) — backlog misattributed

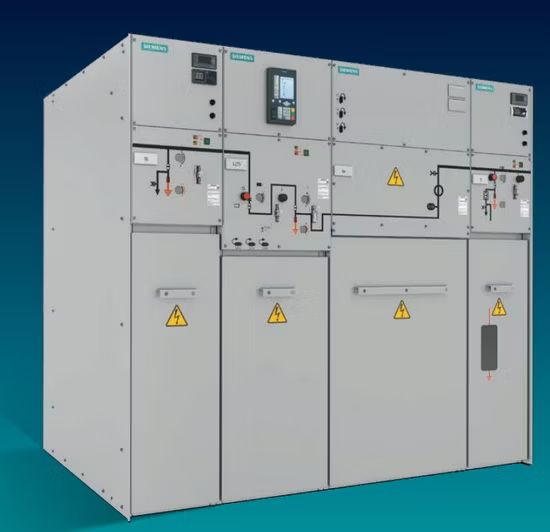

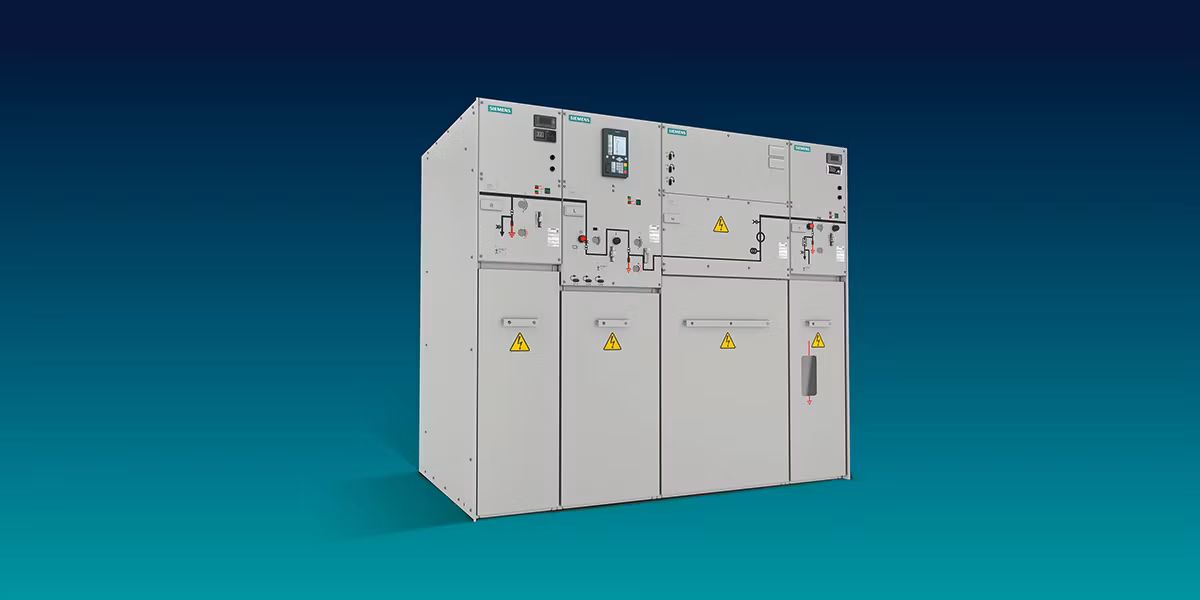

Siemens AG (Smart Infrastructure) SIMOSEC metal-enclosed MV switchgear (to 24 kV) — Siemens AG (Smart Infrastructure)
Siemens AG (Smart Infrastructure) — backlog misattributed to Siemens Energy 8DA10 gas-insulated switchgear (to 40.5 kV) — Siemens AG (Smart Infrastructure) — backlog misattributed to Siemens Energy
Siemens AG (Smart Infrastructure) — backlog misattributed to Siemens Energy 8DB10 gas-insulated switchgear (double busbar) — Siemens AG (Smart Infrastructure) — backlog misattributed to Siemens Energy
Siemens AG (Smart Infrastructure) — backlog misattributed to Siemens Energy 8DJH ring main unit family (12-36 kV; blue SF6-free variants) — Siemens AG (Smart Infrastructure) — backlog misattributed to Siemens Energy
Siemens AG (Smart Infrastructure) — backlog misattributed to Siemens Energy NXAIR air-insulated switchgear family — Siemens AG (Smart Infrastructure) — backlog misattributed to Siemens Energy
Siemens AG (Smart Infrastructure) — backlog misattributed to Siemens Energy NXPLUS C compact gas-insulated switchgear (to 24 kV) — Siemens AG (Smart Infrastructure) — backlog misattributed to Siemens Energy
Compare Data Center Switchgear (41 models)
Every published model in this category, compared on the specifications a data center buyer filters on first. Values come from each model dossier; an em dash means the specification is not documented, never an estimate.
| Model | OEM | Type | Voltage class | Continuous current | Interrupting / withstand | Internal arc | Lead time |
|---|---|---|---|---|---|---|---|
| Power Xpert UX primary switchgear (IEC, to 36 kV via UX 36) | Eaton Corporation plc (EMEA/APAC MV) | MV SF6-free | 3.6-24 kV (UX); 36 kV (UX 36) | 630-4,000 A | to 50 kA / 3 s | AFLR to 50 kA / 1 s | New: 52-104 weeks (IEC MV class by voltage) · Used: No secondary channel exists |
| VacClad-W metal-clad switchgear with VCP-W breakers (5-38 kV) | Eaton Corporation plc (Westinghouse heritage) | MV air-insulated | 5 kV – 38 kV | 1,200A – 4,000A (main bus) | 25 kA – 63 kA symmetrical | Type 2B per IEEE C37.20.7 (optional) | New: 60-80 weeks (15 kV metal-clad); 78-104 weeks (38 kV) · Used: 1-8 weeks (breakers); lineups opportunistic |

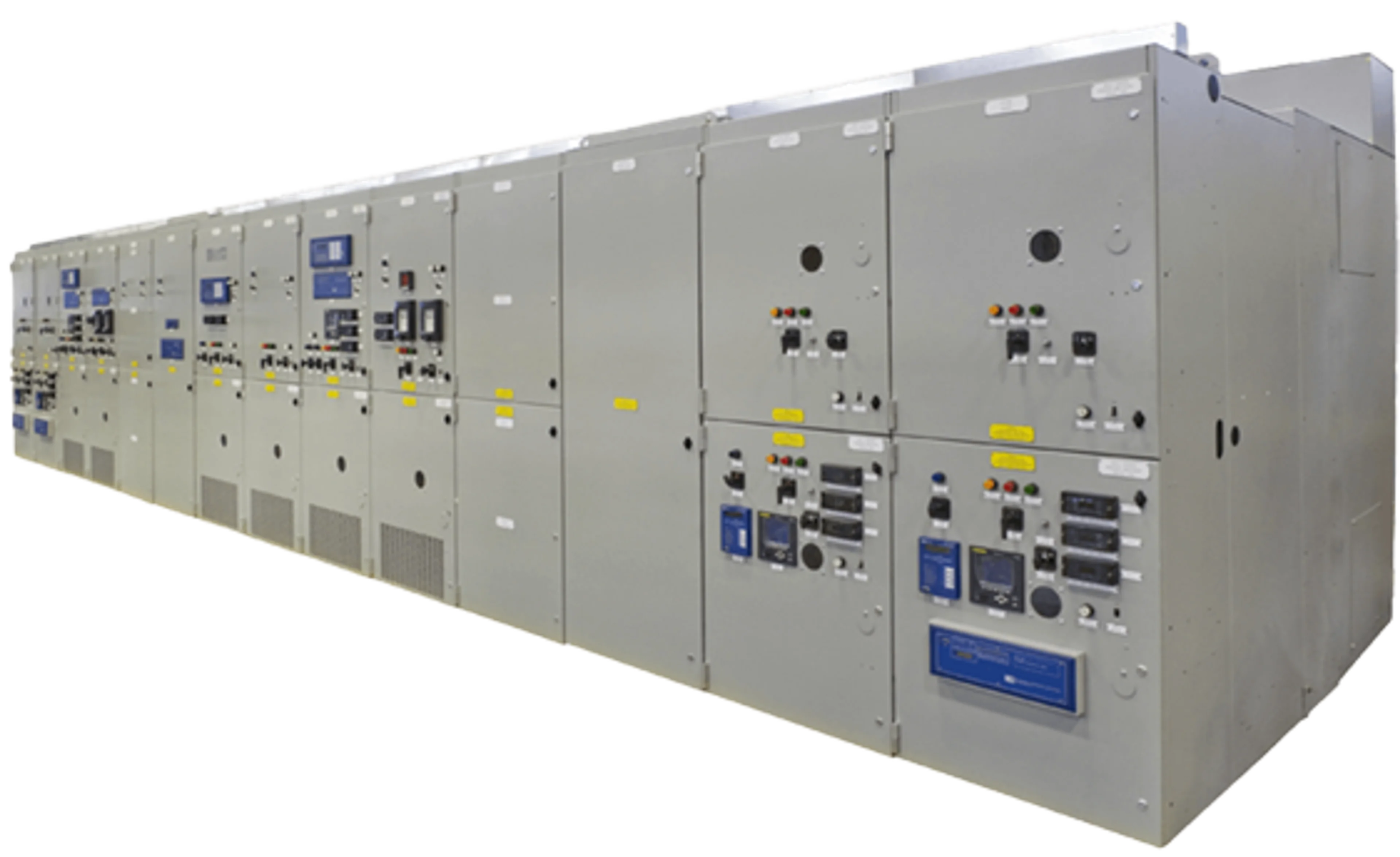

| PowlVac metal-clad switchgear (5-38 kV) and PowlVac-AR | Powell Industries, Inc. | MV air-insulated | ~5-38 kV | — | — | PowlVac-AR | New: 60-80 weeks (metal-clad class) · Used: 1-8 weeks |

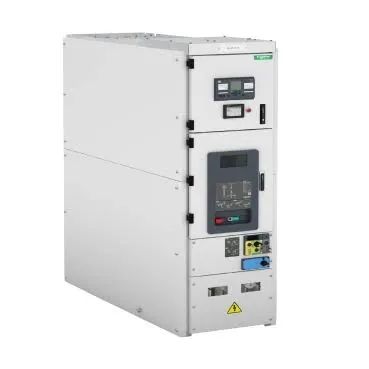

| MCset air-insulated metal-clad switchgear (to 17.5/24 kV) | Schneider Electric SE | MV air-insulated | 7.2 / 12 / 17.5 kV (24 kV variant) | 4,000 A | 50 kA (17.5 kV incomer) | — | New: 60-80 weeks (metal-clad class) · Used: Repair/quote channel only |

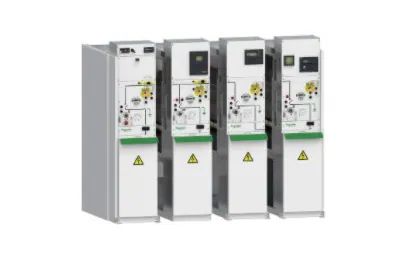

| Premset shielded-solid-insulation MV switchgear | Schneider Electric SE | MV solid-insulated | 7.2 / 12 / 17.5 kV | 1,250 A | — | IAC A-FLR 21-25 kA / 1 s | New: 52-72 weeks (metal-enclosed class) · Used: No used supply exists |
| ZX0 gas-insulated switchgear (legacy; successor PrimeGear ZX0) | ABB Ltd (Electrification) | MV gas-insulated | 12 / 24 kV | — | 25 kA/3 s; peak 62.5 kA | IAC AFL / AFLR 25 kA 1 s | New: Successor PrimeGear: 52-72 weeks (MV class) · Used: No used channel (F-gas stranded) |

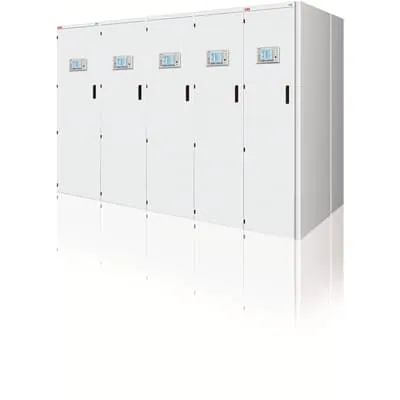

| ZX1.2 gas-insulated switchgear (legacy) | ABB Ltd (Electrification) | MV gas-insulated | 12 / 24 / 36 kV | 2,500 A | — | IAC AFLR 31.5 kA 1 s | New: Successors: 52-104 weeks by class · Used: No used channel (F-gas stranded) |

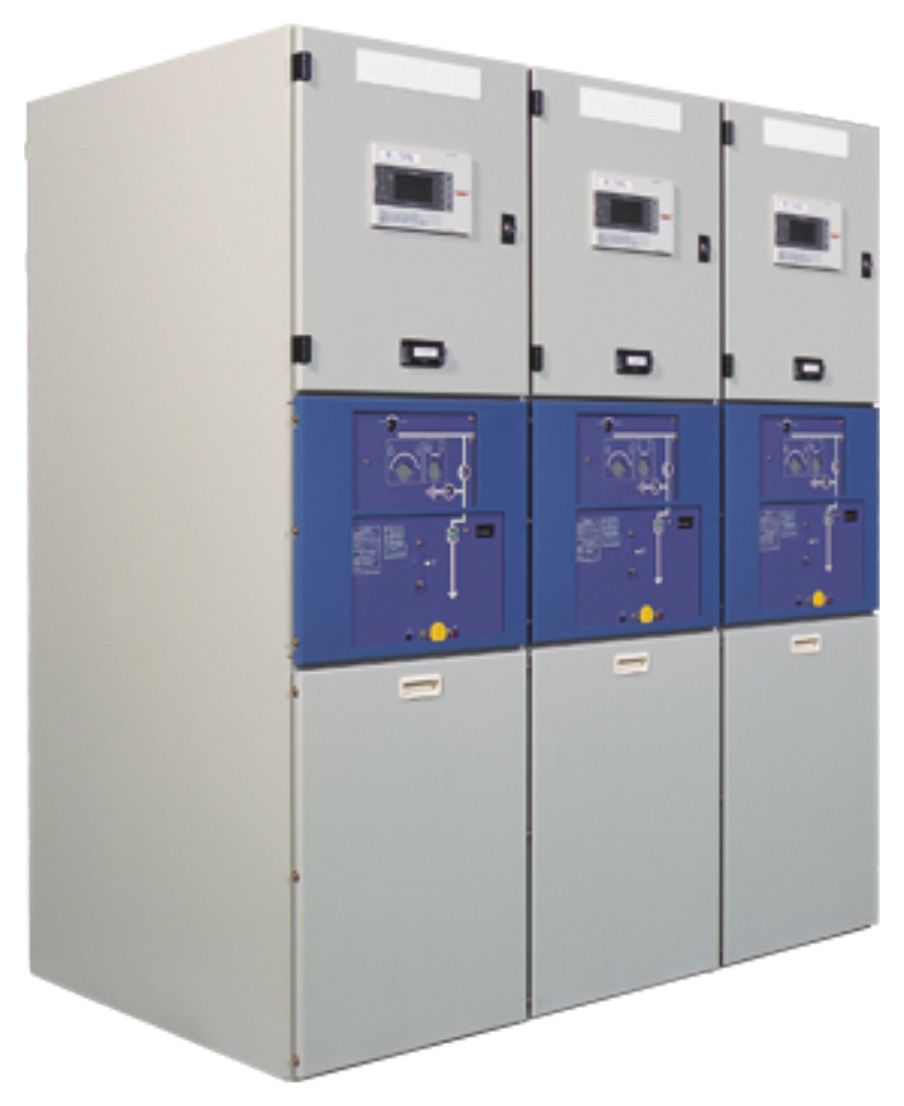

| C-GIS cubicle-type gas-insulated switchgear (12-72.5 kV) | Mitsubishi Electric Corporation (Energy Systems) | MV gas-insulated | ~12-72.5 kV | — | — | — | New: 60-104 weeks (MV GIS class) · Used: No used channel observed |

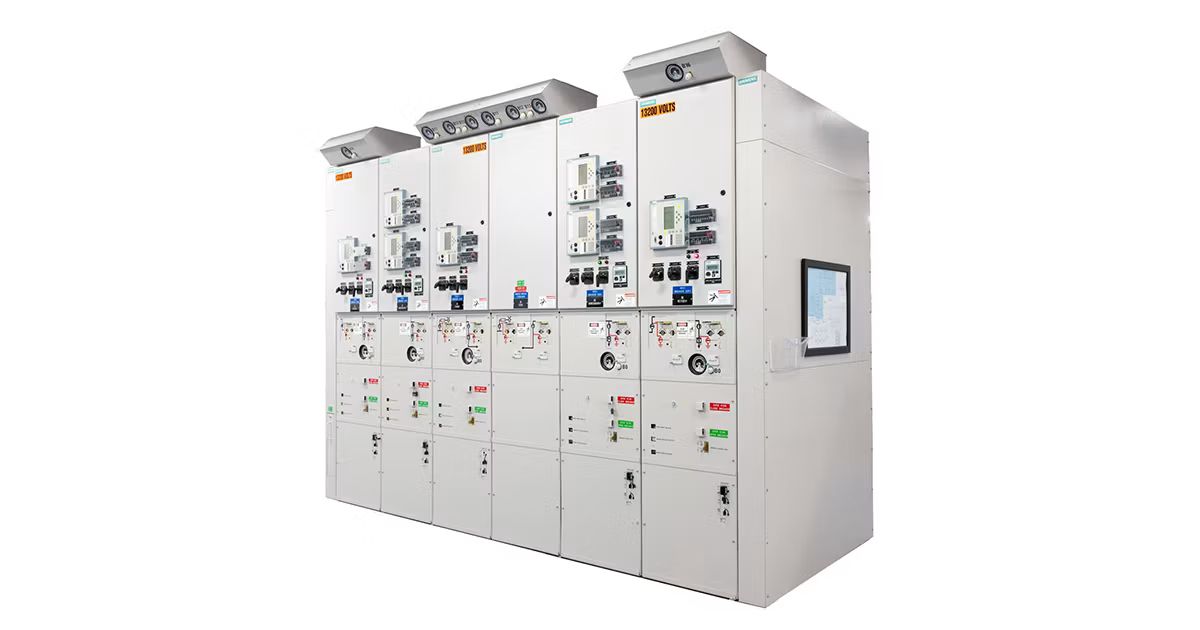

| 8DA10 gas-insulated switchgear (to 40.5 kV) | Siemens AG (Smart Infrastructure) — backlog misattributed to Siemens Energy | MV gas-insulated | 12 / 24 / 40.5 kV | 5,000 A | 40 kA / 3 s | IAC A FL / FLR 40 kA 1 s | New: 60-104 weeks (MV GIS class) · Used: No used channel (sealed-for-life) |
| 8DB10 gas-insulated switchgear (double busbar) | Siemens AG (Smart Infrastructure) — backlog misattributed to Siemens Energy | MV gas-insulated | 12 / 24 / 40.5 kV | 5,000 A | 40 kA / 3 s | IAC A FL / FLR 40 kA 1 s | New: 60-104 weeks (MV GIS class) · Used: No used channel (sealed-for-life) |
| SafeRing Air ring main unit | ABB Ltd (Electrification) | MV gas-insulated | 24 kV | 630 A | 20 kA / 3 s at 24 kV | IAC A FLR 20 kA 1 s | New: 52-72 weeks (MV secondary class) · Used: No used channel exists |

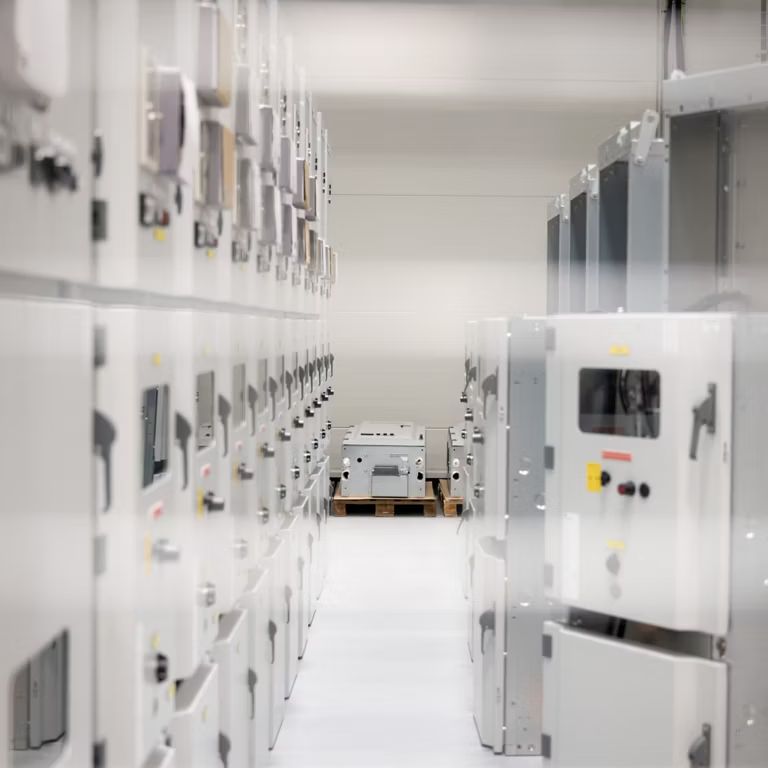

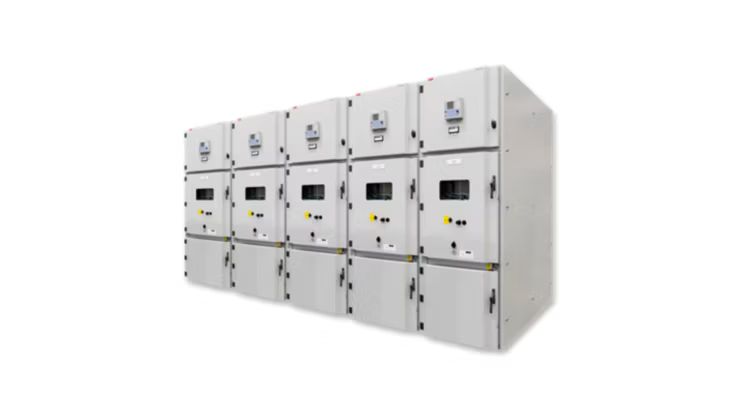

| UniGear ZS1 air-insulated switchgear | ABB Ltd (Electrification) | MV air-insulated | 24 kV | 4,000 A | 63 kA | IAC A-FLR | New: 52-80 weeks (15 kV metal-clad class) · Used: Breaker-level: 1-8 weeks; lineups rare |

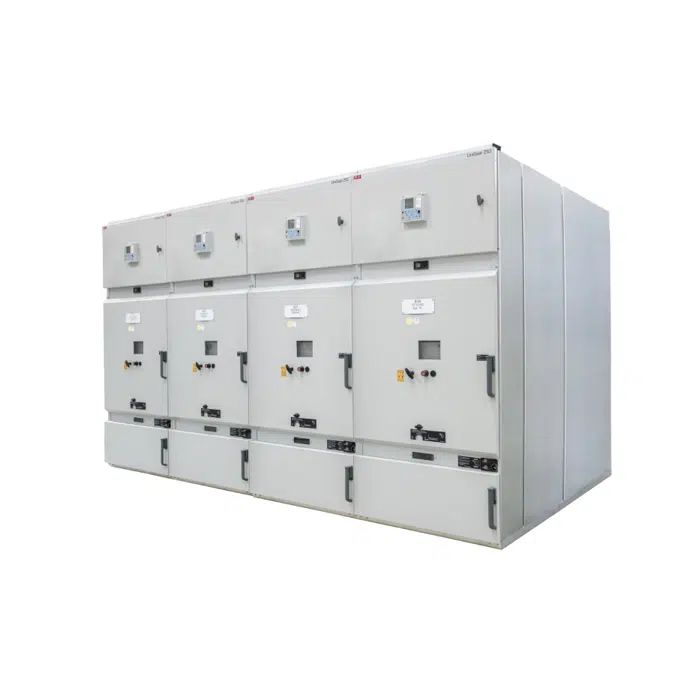

| UniGear ZS2 air-insulated switchgear (36 kV) | ABB Ltd (Electrification) | MV air-insulated | Up to 24 kV | Up to 4,000A | Up to 50 kA | IAC AFLR classified | New: 78-104 weeks (38 kV class) · Used: Auction-lot dependent |
| GM AirSeT SF6-free primary GIS | Schneider Electric SE | MV SF6-free | 24 kV | — | — | — | New: 60-80 weeks (MV metal-clad class) · Used: No used supply exists (line <5 years old) |
| PIX air-insulated metal-clad switchgear (to 24 kV) | Schneider Electric SE | MV air-insulated | to 24 kV | to 4,000 A | to 40 kA | — | New: 60-80 weeks (metal-clad class) · Used: Repair/quote channel only |
| SM AirSeT SF6-free modular switchboard | Schneider Electric SE | MV SF6-free | 24 kV | — | — | — | New: 32-50 weeks (secondary/pad-mount class proxy) · Used: No used supply exists |
| SIMOSEC metal-enclosed MV switchgear (to 24 kV) | Siemens AG (Smart Infrastructure) | MV metal-enclosed | Up to 24 kV | Up to 2,500A | Up to 25 kA | IAC A FL / FLR to 21 kA 1 s | New: 52-72 weeks (MV secondary class) · Used: No open used channel |

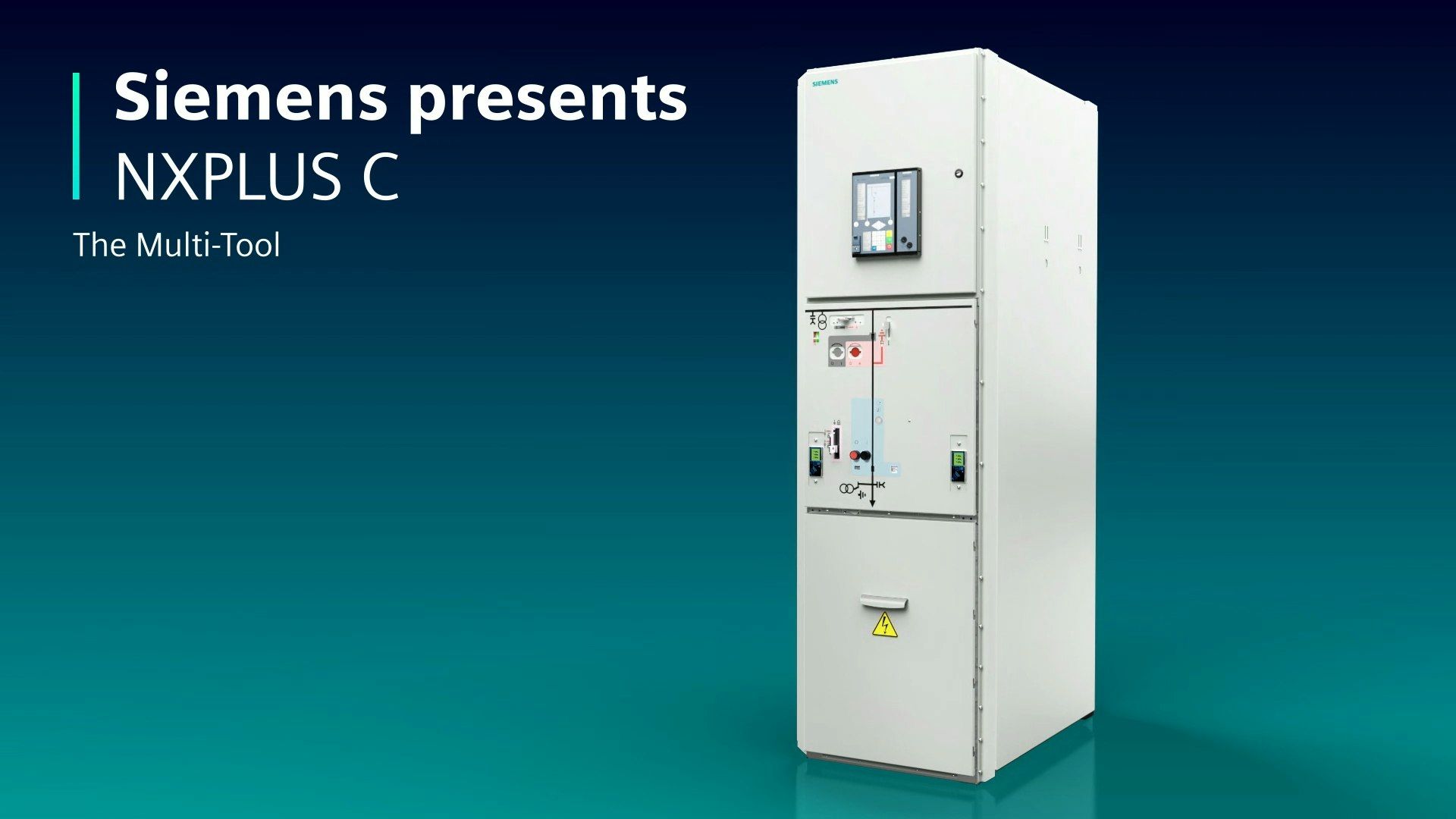

| NXPLUS C compact gas-insulated switchgear (to 24 kV) | Siemens AG (Smart Infrastructure) — backlog misattributed to Siemens Energy | MV gas-insulated | 24 kV | 2,500 A | 31.5 kA | — | New: 60-104 weeks (MV GIS class) · Used: No used channel (sealed-for-life) |
| Power Xpert XGIS gas-insulated switchgear (ANSI, 38 kV) | Eaton Corporation plc | MV gas-insulated | 38 kV | 2,500 A | 31.5 kA | — | New: 78-104 weeks (38 kV class); Bellevue NE plant adds capacity 1H 2027 · Used: No used channel (sealed SF6 GIS) |

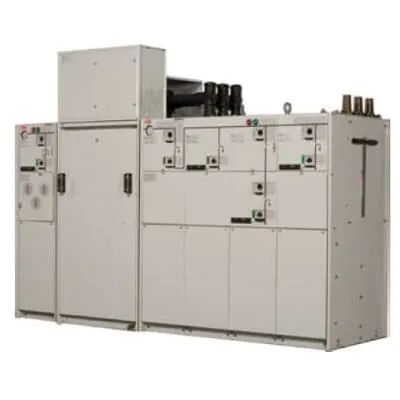

| SafePlus compact gas-insulated switchgear | ABB Ltd (Electrification) | MV gas-insulated | 40.5 kV | 630 A | 25 kA/3 s (12/36/40.5 kV); 20 kA/3 s (24 kV) | IAC A FLR 20 kA 1 s | New: 52-72 weeks (MV secondary class) · Used: No liquid used channel |
| ELK gas-insulated switchgear family (72.5 kV and above) | Hitachi Energy Ltd | HV switchgear | 72.5-550 (ELK-3 to 550) kV | to 6,300 A | to 80 kA | — | New: Transmission-project scheduled (multi-year typical) · Used: No secondary market |
| EntelliGuard E LV power circuit breaker (Entellisys-only) | ABB Inc. (ex-GE Industrial Solutions) | LV breaker (ACB) | 240 / 480 / 600 V AC | — | 50-100 kA | — | New: Renewal-parts channel only (legacy product) · Used: 1-4 weeks (dealer stock) |
| Magnum SB insulated-case power circuit breaker | Eaton Corporation plc | LV breaker (ACB) | 635 V AC | — | 150 kA (current-limiting) | — | New: Switchboard class 32-41 weeks; breakers via distribution · Used: 1-4 weeks (dealer stock) |

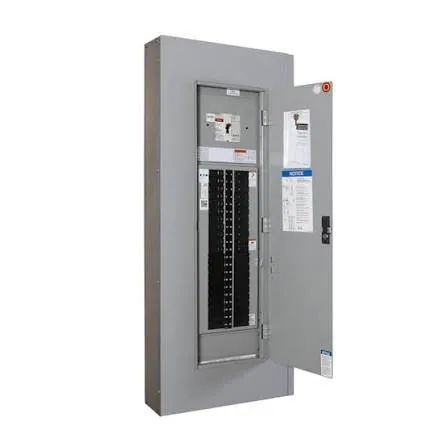

| Pow-R-Line panelboards and switchboards (category fit flagged) | Eaton Corporation plc | LV switchgear | Up to 635V AC | 800A – 5,000A | 42 kA – 200 kA | — | New: 21-32 weeks (panelboards); 32-41 weeks (switchboards) · Used: Same-day to 2 weeks |
| SACE Emax 2 air circuit breaker (E1.2-E6.2) | ABB SACE (ABB Group) | LV breaker (ACB) | 1,150 V AC / 1,000 V DC | 6,300 A (E6.2) | 200 kA at 440 V | — | New: Orderable; ABB scaling LV production on data center demand · Used: 1-4 weeks (dealer/gray stock) |

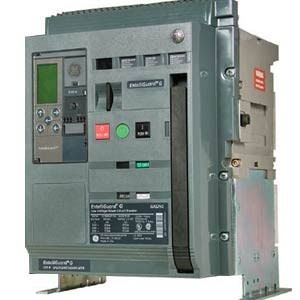

| EntelliGuard G LV power circuit breaker (previous generation) | ABB Inc. (ex-GE Industrial Solutions) | LV breaker (ACB) | — | 400-6,000 A | 200 kAIC | — | New: Replacement breakers ship via ABB (limited phase) · Used: 1-4 weeks (dealer stock) |
| UniGear Digital (option package across the UniGear family) | ABB Ltd (Electrification) | MV air-insulated | — | — | — | — | New: Follows host UniGear panel (52-80 weeks class) |
| 4000 Series generator paralleling switchgear | ASCO Power Technologies, a Schneider Electric business | Paralleling | — | — | — | — | New: 45-90 weeks (engineered switchgear class) · Used: No whole-lineup channel; components 1-8 weeks |
| 7000 Series Low-Voltage Power Control System | ASCO Power Technologies, a Schneider Electric business | Paralleling | — | — | — | — | New: 45-90 weeks (engineered switchgear class) · Used: No PCS lineup channel; ATS components 1-4 weeks |
| EMCP 4.4 Master Control Panel with XLM and EGP switchgear | Caterpillar Inc. (Electric Power) | Paralleling | — | — | — | — | New: 45-90 weeks (engineered switchgear class) · Used: Dealer channel; no open used market |
| PowerCommand DMC2000/6000/8000 digital master control | Cummins Inc. (Power Systems) | Paralleling | — | — | — | — | New: 45-90 weeks (engineered switchgear class) · Used: Distributor channel; no open used market |
| Magnum DS low-voltage switchgear and breakers | Eaton Corporation plc (Cutler-Hammer/Westinghouse heritage) | LV switchgear | — | 1,600-10,000 A | 200 kA | 85 kA (IEEE C37.20.7) | New: 54 weeks (LV switchgear class) · Used: 1-4 weeks (deep dealer stock) |
| MPS Modular Power System paralleling (PowerManager legacy branding) | Generac Power Systems, Inc. (Industrial) | Paralleling | — | — | — | — | New: Dealer-quoted; engineered-class comparison 45-90 weeks · Used: Dealer channel; no open used market |

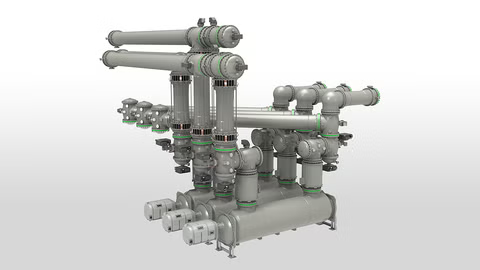

| EconiQ eco-efficient portfolio (HV, not MV) | Hitachi Energy Ltd | HV switchgear | — | — | — | — | New: Transmission-project scheduled · Used: No secondary market |
| PD-Series paralleling switchgear (PD-2000/3000/4000) | Rehlko (formerly Kohler Energy), Power Systems | Paralleling | — | — | — | — | New: 45-90 weeks (engineered switchgear class) · Used: Dealer/service channel; no open used market |

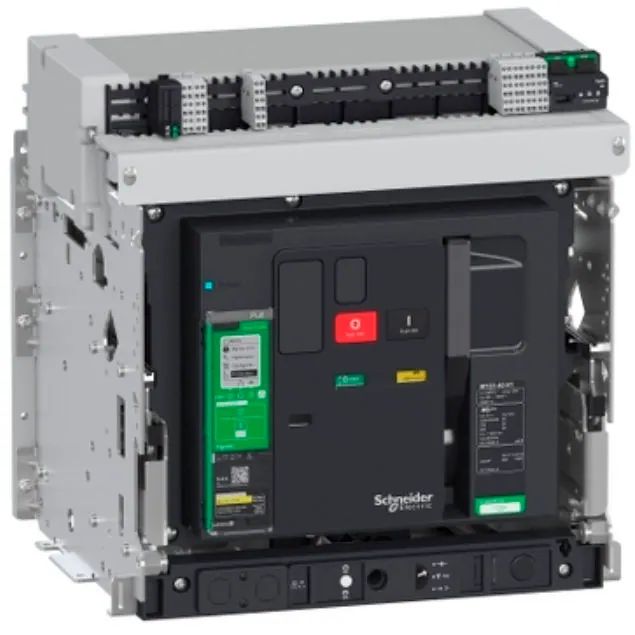

| Masterpact MTZ air circuit breaker (MTZ1/MTZ2/MTZ3) | Schneider Electric SE (Square D) | LV breaker (ACB) | — | — | — | — | New: Distributor stock to weeks (common frames); lineup integration 52-72 weeks · Used: 1-4 weeks |
| PowerPact molded case circuit breakers (B/H/J/L/M/P/R frames) | Schneider Electric SE (Square D) | LV breaker (MCCB) | — | — | 25 kA @600 V; 65 kA @480 V | — | New: Same-day to weeks (distributor stock, common frames) · Used: Same-day to 2 weeks |

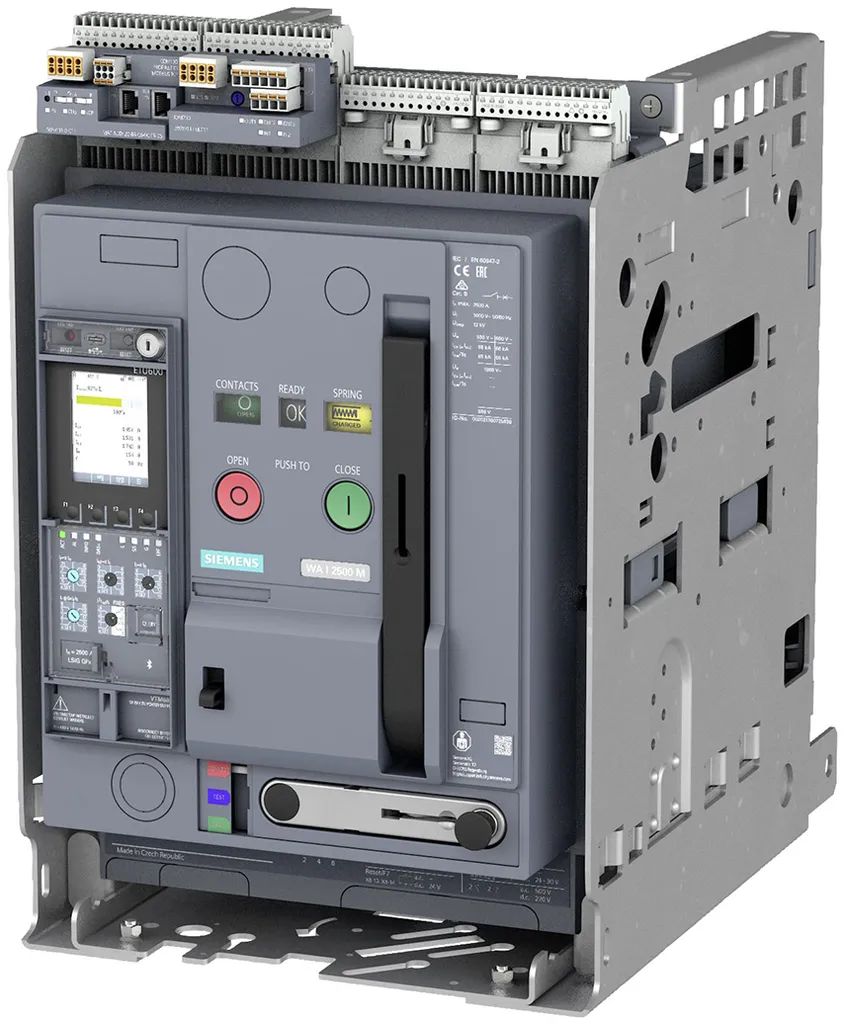

| SENTRON 3WA air circuit breaker (current generation) | Siemens AG (Smart Infrastructure, Electrical Products) — backlog misattributed | LV breaker (ACB) | — | 630-6,300 A | to 150 kA | — | New: Distributor quote; Siemens expanding US capacity (165M USD Carolinas) · Used: No meaningful used channel yet |

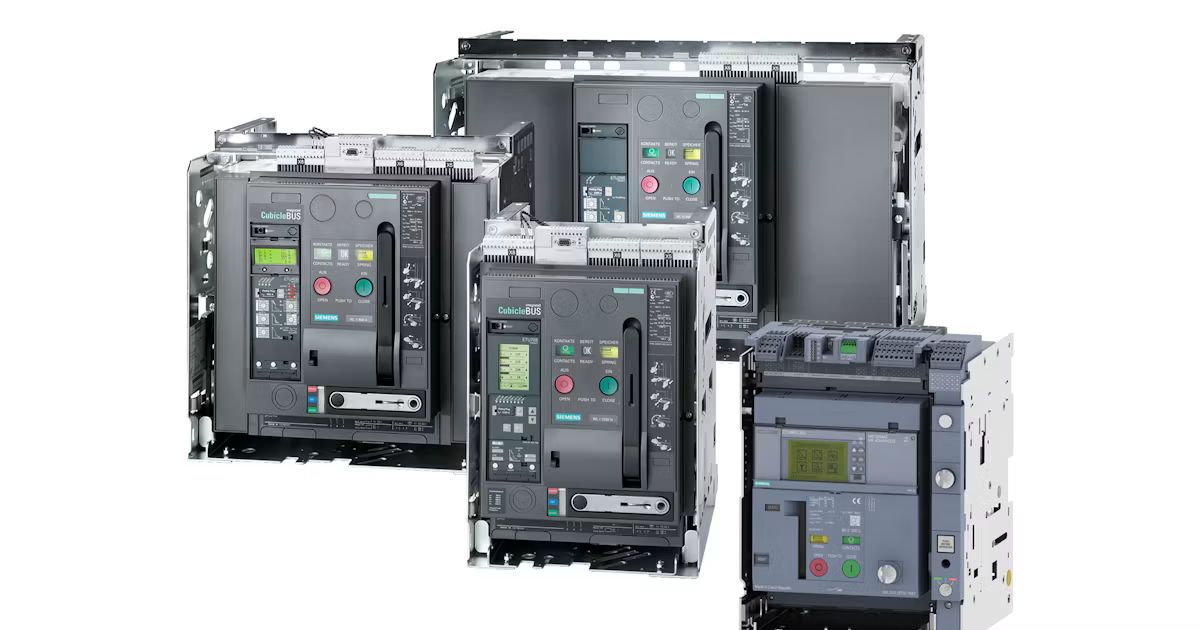

| SENTRON 3WL air circuit breaker (phase-out October 2026) | Siemens AG (Smart Infrastructure, Electrical Products) — backlog misattributed | LV breaker (ACB) | — | 630-6,300 A | — | — | New: Orderable until October 2026; then retrofit/spares only · Used: 1-4 weeks (dealer and eBay stock) |

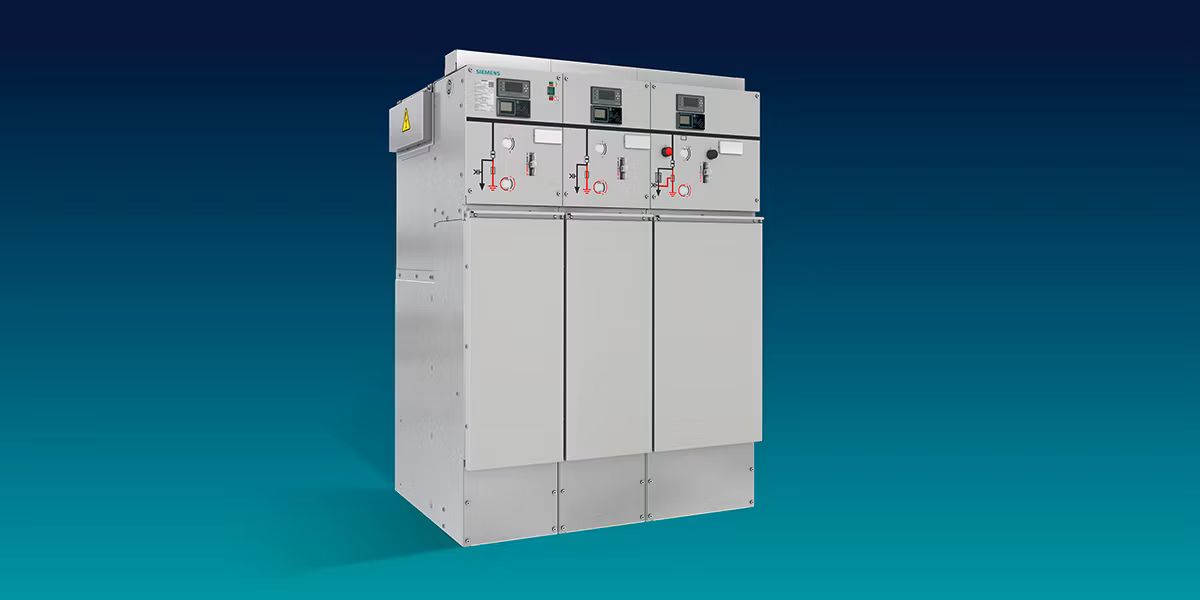

| 8DJH ring main unit family (12-36 kV; blue SF6-free variants) | Siemens AG (Smart Infrastructure) — backlog misattributed to Siemens Energy | MV gas-insulated | — | — | — | IAC A FL / FLR 25 kA 1 s | New: 52-72 weeks (MV secondary class) · Used: Gray-market quote-only; no credible US channel |

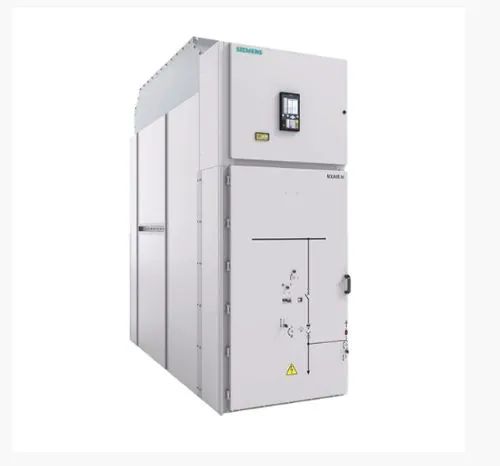

| NXAIR air-insulated switchgear family | Siemens AG (Smart Infrastructure) — backlog misattributed to Siemens Energy | MV air-insulated | — | — | — | — | New: 52-80 weeks (metal-clad class) · Used: Quote-only overseas resellers; no US channel |
Which Switchgear Do You Need
Service entrance and main distribution below 600 V
Drawout low-voltage switchgear is built and tested to ANSI/UL 1066 with power circuit breakers that can be racked out and maintained; a switchboard is built to UL 891 with fixed or plug-in devices and costs less. If the bus has to stay energised while a device is serviced, the switchgear line is the one to shortlist.
Medium-voltage distribution in a constrained room
Metal-clad air-insulated lineups are the ANSI default and the easiest to service, but they take floor area and clearance. Gas-insulated and solid-insulated designs shrink the footprint and seal the primary parts against humidity and contamination, at a higher unit price and with a sealed pressure system to account for in the maintenance plan.
The project is written against SF6 phase-down
The EU F-gas regulation and several US state rules are closing on SF6 in new medium-voltage equipment, and every major OEM now ships a fluorinated-gas-free alternative using dry air, vacuum interruption, or a synthetic-air mixture. These carry their own type-test evidence and are not always dimensionally interchangeable with the SF6 unit they replace.
Arc flash is driving the design
Internal-arc classification describes what the enclosure does when a fault happens inside it: where the gas is vented, and how long the doors stay shut. It is a construction rating, not a protection setting, so it cannot be added later. Pair it with a reduced-energy let-through or maintenance-mode trip setting on the breaker. Switchgear Maintenance Best Practices: A Field Guide for Power Teams covers the detail.
Several generators have to share one bus
Paralleling switchgear synchronises multiple generator sets onto a common bus and manages load sharing, load shed, and the transfer sequence. The decision is mostly about the control layer: engine-mounted controls handle small sets, while a dedicated paralleling lineup earns its cost once the plant has redundancy, utility paralleling, or a closed-transition return.
Used and Surplus Switchgear
A used lineup only fits if voltage class, bus rating, breaker type, and section width match the existing gear, which is what the table above documents. SecondWatt holds no stock and sets no price: send the ratings you need and the request is routed to sellers holding matching equipment. Switchgear Pricing 2026: PPI Up 14%, 15 kV Metalclad $549,800-$779,029 has the pricing detail. List equipment you hold.
Pricing Tiers
- New OEM — direct manufacturer with full warranty and lead times of 12–36 months.
- Gray Market — surplus new inventory at discounted pricing, available immediately.
- Refurbished — overhauled units with restored specs and limited warranty.
- Used — operational units with documented run-time and condition reports.
