ABB SafePlus compact gas-insulated switchgear
Manufacturer: ABB
ABB SafePlus compact switchgear, sealed-tank secondary distribution to 40.5 kV with an SF6-free Air variant
This model is part of SecondWatt’s switchgear research catalogue. Specifications and price observations are included where supported by sources. Equipment availability and commercial terms require confirmation.
ABB SafePlus dossier: sealed-tank compact switchgear to 40.5 kV with SF6-free Air variant, F-gas compliance, market structure, inspection checklist.

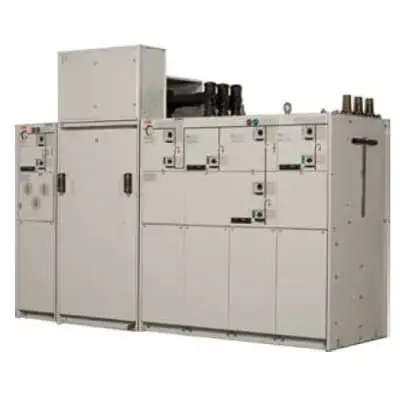

SafePlus is ABB's extendible compact gas-insulated switchgear for secondary distribution, sibling to the SafeRing RMU and built on the same sealed stainless-steel tank. The SF6 version reaches 40.5 kV; the SF6-free SafePlus Air version, insulated with dry air, covers up to 24 kV, and ABB documents F-gas Regulation (EU) 2024/573 compliance on the product page with a March 2026 catalog for the Air line.
Ratings center on 630 A busbars with short-time withstand to 25 kA/3 s at 12/36/40.5 kV (20 kA/3 s at 24 kV) and internal arc classification IAC A FLR 20 kA 1 s per IEC 62271-200. ABB cites more than 40,000 dry-air functional units in operation across the SafeRing/SafePlus Air platform.
Chinese 'SafePlus-type' clones circulate on trade platforms and are locally built copies rather than ABB surplus.
Why it matters
SafePlus shows why MV gas-insulated gear resists secondary trading: sealed tanks, F-gas liability, and utility fleets that decommission rather than resell. With the EU barring new SF6 MV switchgear from 2026 and ABB shipping dry-air versions at scale, legacy SF6 units are a stranded-asset class, intelligence buyers need before bidding on surplus lots.
Who buys it
Utilities, campus operators, and data center MV rings specify SafePlus new; there is no meaningful used channel to buy from. For a buyer the value is intelligence rather than sourcing: track the SF6-to-Air transition, screen out clone listings, and route decommissioned units toward certified gas handling rather than resale.
Role in the data center
Campus medium-voltage ring and loop switching at 12-24 kV where a sealed compact tank fits an electrical room that cannot take an air-insulated lineup.
Key specifications
| SF6 voltage ceiling | 40.5 kV |
|---|---|
| Air (SF6-free) ceiling | 24 kV |
| Busbar current | 630 A |
| Short-time withstand | 25 kA/3 s (12/36/40.5 kV); 20 kA/3 s (24 kV) |
| Internal arc class | IAC A FLR 20 kA 1 s |
| F-gas compliance | EU 2024/573 documented |
| Dry-air fleet | 40,000+ functional units |
| Air catalog | 1YVA000027 Rev A, 03-2026 |
| Air (SF6-free) short-time withstand | 20 kA / 3 s |
| Arc mitigation option | active arc suppressor device available |
Technical summary
SF6 version: up to 40.5 kV. SafePlus Air (dry air, SF6-free): up to 24 kV. Busbar: 630 A. Short-time withstand: 25 kA/3 s (12/36/40.5 kV); 20 kA/3 s (24 kV). Internal arc: IAC A FLR 20 kA 1 s (IEC 62271-200). Tank: sealed welded stainless steel. Compliance: F-gas Regulation (EU) 2024/573. Tank: sealed welded stainless steel, extendible configurations. Dry-air fleet: 40,000+ functional units in operation. Air-line catalog: Rev A, March 2026.
Major variations
Two insulation eras on one platform: SF6-filled SafePlus to 40.5 kV and the dry-air SafePlus Air to 24 kV. SafePlus is the extendible compact switchgear; SafeRing is the fixed-configuration ring main unit built on the same welded stainless tank. Functional units cover load-break switch, switch-fuse, and vacuum circuit breaker ways in multi-way combinations. Listing note for buyers: 'SafeRing/SafePlus-type' units offered on Chinese trade platforms are locally built copies rather than ABB surplus.
Configurations and options
The configuration is built from functional units, load-break switch, switch-fuse and vacuum circuit-breaker ways, combined into multi-way extendible arrangements, and the way count is the main driver of price and panel length. The insulation choice is the other axis and it is not a trim level: the SF6 build reaches 40.5 kV while the dry-air SafePlus Air build stops at 24 kV. Ratings to confirm on a nameplate are the voltage class, the 630 A busbar, short-time withstand of 25 kA/3 s at 12, 36 and 40.5 kV or 20 kA/3 s at 24 kV, and internal arc classification IAC A FLR 20 kA 1 s. An active arc suppressor is an option rather than standard.
Compatibility and dependencies
The tank is a sealed welded stainless steel enclosure that cannot be opened or repaired in the field, so the interfaces are the whole compatibility question: cable terminations, fuse links on switch-fuse ways, the busbar coupling to adjacent units, and the operating mechanism interlocks. Construction is to IEC 62271-200 with the internal arc classification assigned by installation arrangement, which means the room has to provide the clearances the IAC A FLR classification was tested with. Extending an existing lineup requires matching-generation ABB units rather than another vendor's ring main unit, and any SF6 unit brings certified gas handling into every move, extension and decommissioning task.
Pricing and availability
Trend: rising Lead time, new: 52-72 weeks (MV secondary class). Lead time, used or refurbished: No liquid used channel. Warranty, used: 1-year typical from reconditioning dealers.
Lifecycle and maintenance
Gas-insulated switchgear targets 35-40 year service from sealed-for-life compartments with minimal maintenance: density monitoring, PD surveys, and mechanism service. Sealed tanks cannot be repaired in the field, so gas loss or internal fault usually ends the asset. EU F-gas and CARB rules add end-of-life SF6 recovery and reporting obligations that must be priced into any SF6 unit, while SF6-free designs (clean air, dry air, C4-FN mixtures) remove that liability entirely.
Thermal and emissions profile
The regulatory story is the insulation gas: SF6 carries a global warming potential of 24,300 and an atmospheric lifetime near 3,200 years. EU Regulation 2024/573 bars placing new SF6 switchgear at or below 24 kV on the EU market from 2026-01-01, extends to 52-145 kV classes from 2028, above 24 to 52 kV from 2030, and above 145 kV from 2032. California's CARB rule phases out acquisition of new SF6 gas-insulated equipment from 2025 on a staged schedule. Legacy SF6 gear remains legal to operate but faces stranded-asset discounts and end-of-life gas recovery obligations.
Common failure points
- Gas leakage — Density alarms and lockout; insulation margin lost as pressure falls
- Partial discharge in compartments — PD at spacers, particles, or terminations progressing to internal fault
- Operating mechanism — Spring and motor failures on switch and breaker drives
- Cable terminations — Tracking in cable boxes and poorly seated plug-in connectors
- Density monitor drift — False alarms or missed low-gas conditions from drifted gauges
- End-of-life gas liability — SF6 recovery and reporting costs land on the owner at decommissioning
Inspection checklist
Gas density: verify density monitors against nameplate fill (150 kPa class systems); alarm thresholds intact. Leak rate: review gas top-up logs; leakage above 0.5% per year fails modern acceptance. Gas quality: test SF6 moisture and decomposition before transfer; SO2 presence flags internal arcing. F-gas compliance: verify EU 2024/573 and CARB status; new SF6 MV gear is barred from the EU market from 2026. Partial discharge: UHF or acoustic survey per IEC 60270 practice; PD is the dominant latent defect. Vacuum interrupters: hipot test breaking units; interruption is vacuum even in gas-insulated designs. Mechanism: exercise and verify spring charge; check counters against 10,000-operation class ratings. Terminations: inspect cable boxes for tracking; verify stress cones and plug-in connectors seated.
Procurement channels
New units come through ABB channels only. Any 'SafePlus-type' offer on a trade platform should be treated as a clone until proven otherwise.
Regional notes
An IEC line built for European-style secondary distribution networks at 12-40.5 kV, predominantly 50 Hz, with no ANSI equivalent listing. EU Regulation 2024/573 bars new SF6 switchgear at and below 24 kV from 2026, which is why ABB documents F-gas compliance on the product page and why the dry-air Air version exists. California's SF6 rule caps utility emissions at 1% per year from 2020 and phases out new SF6 equipment from 2025, so a decommissioned SF6 unit carries recovery obligations in both jurisdictions rather than resale value.
