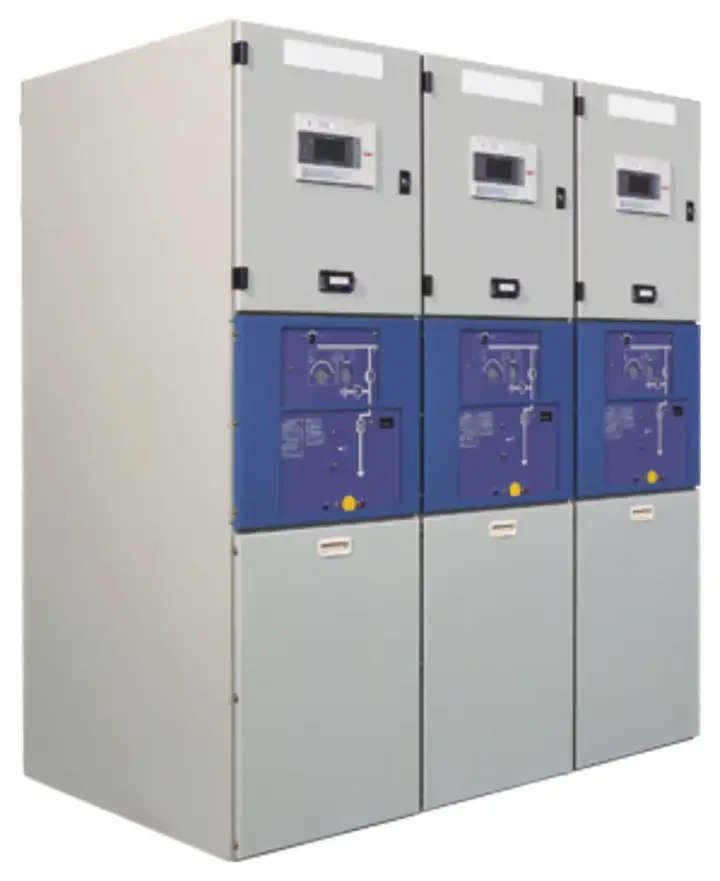

Mitsubishi Electric C-GIS cubicle-type gas-insulated switchgear (12-84 kV)

Manufacturer: Mitsubishi Electric

Mitsubishi Electric C-GIS cubicle switchgear from 12 kV to the 72/84 kV class, including a dry-air HG-VA model

This model is part of SecondWatt’s switchgear research catalogue. Specifications and price observations are included where supported by sources. Equipment availability and commercial terms require confirmation.

Mitsubishi Electric C-GIS: cubicle gas-insulated switchgear at 12/24 kV and 72/84 kV, dry-air and SF6 models, service-network risk on imported units.

Why it matters

C-GIS is the Japanese entrant in a compact-GIS market otherwise dominated by European OEMs, and its 72.5 kV ceiling reaches duties where alternatives narrow. For a US buyer, the practical issue is service-network risk on imported sealed gear: third-party support for sealed Japanese gas-insulated switchgear is thin, so a Mitsubishi service relationship should be confirmed before acquisition.

Who buys it

Asian utilities and industrials specify C-GIS directly; US and EU exposure arrives through imported package substations and Japanese corporate facilities. Owners of US-landed C-GIS need Mitsubishi service relationships confirmed, because third-party support for sealed Japanese GIS is thin.

Role in the data center

Compact medium-voltage switching inside imported package substations and Japanese-affiliated facilities, and at the 72/84 kV models, subtransmission-class switching at a campus intake. It is rarely specified directly by US campus developers, which is precisely why an inherited C-GIS lineup is a spares and service question before it is an electrical one.

Key specifications

Technical summary

Type: cubicle-type gas-insulated switchgear with vacuum interruption inside sealed gas-insulated enclosures. Medium-voltage model (HS-X): 12 and 24 kV, main busbars 630/1,250 A, short-time withstand 25 kA/3 s, to IEC 62271-200. Subtransmission models: HG-VA at 72 kV with dry-air insulation and HG-VG at 72/84 kV with SF6, both 800/1,200 A and 25/31.5 kA. Portfolio: Mitsubishi Electric Energy Systems switchgear. Competitive set: Siemens 8DA10 and NXPLUS C, ABB ZX, Eaton XGIS. Market: Japan and Asia primary, global selective. Class lead time: 60-104 weeks for MV gas-insulated switchgear. Secondary market: none observed.

Major variations

Two bands rather than one continuous range. The HS-X medium-voltage cubicles cover 12 and 24 kV at 630/1,250 A and 25 kA/3 s. Above them, HG-VA at 72 kV uses dry-air insulation while HG-VG at 72/84 kV uses SF6, both at 800/1,200 A and 25/31.5 kA, which means the insulation medium, and therefore the end-of-life gas obligation, changes with the model rather than with the voltage. Detailed per-model rating tables are published in Japanese-market catalogs rather than on the global pages.

Configurations and options

Two model bands rather than one range, and they are not interchangeable. HS-X medium-voltage cubicles are 12 and 24 kV with 630 or 1,250 A main busbars and 25 kA/3 s short-time withstand to IEC 62271-200. Above them, HG-VA at 72 kV is dry-air insulated and HG-VG at 72 and 84 kV is SF6-insulated, both at 800 or 1,200 A and 25 or 31.5 kA. Insulation medium therefore changes with the model rather than with the voltage, and it decides whether the asset carries an end-of-life gas obligation. Detailed per-model rating tables are published in Japanese-market catalogues rather than on the global pages.

Compatibility and dependencies

Cubicles are sealed with vacuum interruption inside a gas-insulated enclosure, so the interfaces are cable terminations, busbar couplings between cubicles, density monitoring and protection relay wiring, and the sealed interior is not field-serviceable. Construction on the medium-voltage models is to IEC 62271-200, so the internal arc classification depends on the room reproducing the tested arrangement and clearances. The dependency that catches North American owners is service rather than hardware: third-party support for sealed Japanese gas-insulated switchgear is thin, and cubicles reach US sites inside imported package substations, so a written Mitsubishi Electric service relationship should be confirmed before a facility containing C-GIS changes hands.

Pricing and availability

Trend: rising Lead time, new: 60-104 weeks (MV GIS class). Lead time, used or refurbished: No used channel observed. Warranty, used: 1-year typical from reconditioning dealers.

Lifecycle and maintenance

Gas-insulated switchgear targets 35-40 year service from sealed-for-life compartments with minimal maintenance: density monitoring, PD surveys, and mechanism service. Sealed tanks cannot be repaired in the field, so gas loss or internal fault usually ends the asset. EU F-gas and CARB rules add end-of-life SF6 recovery and reporting obligations that must be priced into any SF6 unit, while SF6-free designs (clean air, dry air, C4-FN mixtures) remove that liability entirely.

Thermal and emissions profile

The regulatory story is the insulation gas: SF6 carries a global warming potential of 24,300 and an atmospheric lifetime near 3,200 years. EU Regulation 2024/573 bars placing new SF6 switchgear at or below 24 kV on the EU market from 2026-01-01, extends to 52-145 kV classes from 2028, above 24 to 52 kV from 2030, and above 145 kV from 2032. California's CARB rule phases out acquisition of new SF6 gas-insulated equipment from 2025 on a staged schedule. Legacy SF6 gear remains legal to operate but faces stranded-asset discounts and end-of-life gas recovery obligations.

Common failure points

• Gas leakage — Density alarms and lockout; insulation margin lost as pressure falls
• Partial discharge in compartments — PD at spacers, particles, or terminations progressing to internal fault
• Operating mechanism — Spring and motor failures on switch and breaker drives
• Cable terminations — Tracking in cable boxes and poorly seated plug-in connectors
• Density monitor drift — False alarms or missed low-gas conditions from drifted gauges
• End-of-life gas liability — SF6 recovery and reporting costs land on the owner at decommissioning

Inspection checklist

Gas density: verify density monitors against nameplate fill (150 kPa class systems); alarm thresholds intact. Leak rate: review gas top-up logs; leakage above 0.5% per year fails modern acceptance. Gas quality: test SF6 moisture and decomposition before transfer; SO2 presence flags internal arcing. F-gas compliance: verify EU 2024/573 and CARB status; new SF6 MV gear is barred from the EU market from 2026. Partial discharge: UHF or acoustic survey per IEC 60270 practice; PD is the dominant latent defect. Vacuum interrupters: hipot test breaking units; interruption is vacuum even in gas-insulated designs. Mechanism: exercise and verify spring charge; check counters against 10,000-operation class ratings. Terminations: inspect cable boxes for tracking; verify stress cones and plug-in connectors seated.

Procurement channels

The acquisition risk on US-landed units is the service network rather than the hardware: third-party support for sealed Japanese gas-insulated switchgear is thin, so a Mitsubishi service relationship should be confirmed in writing before a facility containing C-GIS changes hands.

Regional notes

An IEC 62271-200 product built primarily for Japanese and wider Asian utility and industrial networks, with selective reach elsewhere and no ANSI listing. US exposure comes through imported package substations and Japanese-affiliated industrial projects rather than direct specification, which is what creates the orphaned-spares problem on this line. Frequency and voltage class have to be checked cubicle by cubicle, since the Japanese market runs both 50 Hz and 60 Hz. The 72 kV HG-VA build uses dry air and carries no F-gas obligation, while the 72/84 kV HG-VG build is SF6 and does.
