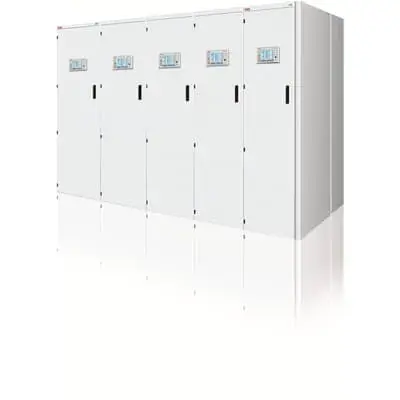

ABB ZX1.2 gas-insulated switchgear
Manufacturer: ABB
ABB ZX1.2 single-busbar SF6 switchgear to 36 kV, a legacy line now off the current ZX portfolio
This model is part of SecondWatt’s switchgear research catalogue. Specifications and price observations are included where supported by sources. Equipment availability and commercial terms require confirmation.
ABB ZX1.2 dossier: legacy single-busbar SF6 switchgear to 36 kV and 31.5 kA, F-gas stranded-asset analysis, successor paths, inspection checklist.
ZX1.2 is ABB's legacy single-busbar SF6 gas-insulated switchgear for primary distribution at 12, 24, and 36 kV (higher on request), with busbars and feeders to 2,500 A, breaking current to 31.5 kA with 80 kA making, and internal arc classification IAC AFLR 31.5 kA 1 s, built in partitioned gas compartments that limit fault propagation. It has dropped off ABB's current ZX portfolio, which lists ZX2, ZX0.2, and PrimeGear ZX0 and refers ZX0/ZX1.2 inquiries to sales; successors for new business are ZX0.2 and PrimeGear ZX0, with ZX2 retained to 40.5 kV.
As with ZX0, EU F-gas Regulation 2024/573 turns decommissioned ZX1.2 fleets into a gas-recovery pipeline rather than a resale market, and replacement is an engineered substitution project, not a catalog purchase.
Partitioned SF6 gear coming out of EU networks signals where gas-recovery services and replacement orders will land.
Why it matters
ZX1.2 rounds out the pattern across legacy SF6 MV GIS: strong ratings, sealed construction, and negative residual value in regulated markets. The F-gas dates and gas inventories that drive that pattern are what a buyer needs to avoid bidding on a stranded asset.
Who buys it
Existing ZX1.2 owners buy service and spares through ABB; nobody buys used units. Replacement demand flows to SF6-free GIS (PrimeGear, blue GIS, GM AirSeT) and, in the US, to ANSI equivalents; decommissioning contractors buy the gas-handling work, not the asset.
Role in the data center
Legacy EU-style primary gas-insulated switchgear at 12-36 kV. It is relevant to campus work mainly as the fleet being replaced by SF6-free successors, and as a reminder that a sealed SF6 lineup inherited with a building is a future gas-recovery liability rather than a resale asset.
Key specifications
| Voltage classes | 12 / 24 / 36 kV |
|---|---|
| Current ceiling | 2,500 A |
| Breaking / making current | 31.5 / 80 kA |
| Internal arc | IAC AFLR 31.5 kA 1 s |
| Compartmentation | partitioned SF6 gas compartments |
| Status | legacy; refer-to-sales |
| ZX2 sibling ceiling | 40.5 kV / 3,150 A / 40 kA |
| Catalogue | TK 501/15 (BIL tables) |
| Busbar arrangement | single busbar |
| Successor lines | ZX0.2 and PrimeGear ZX0; ZX2 retained to 40.5 kV |
Technical summary
Voltage: 12 / 24 / 36 kV (higher on request). Busbar and feeders: up to 2,500 A. Breaking current: up to 31.5 kA; making 80 kA. Internal arc: IAC AFLR 31.5 kA 1 s (AFL variant available). Insulation: SF6 in partitioned compartments. Status: legacy; absent from current ZX portfolio. Compartmentation: partitioned gas compartments limit fault propagation. Successors: ZX0.2, PrimeGear ZX0; ZX2 retained to 40.5 kV. Standard: IEC 62271 series (per catalogue TK 501/15).
Major variations
Single-busbar panels across breaker, load-break and metering duties at 12, 24 and 36 kV, with higher classes built on request, and internal arc classification available as IAC AFL or AFLR depending on accessibility. Within the ZX family, ZX0 is the block design, ZX1.2 the single-bus primary line, and ZX2 the double-bus capable line retained to 40.5 kV. BIL values by voltage class are published in catalogue TK 501/15 rather than in the 2014 brochure, so acceptance documents should cite the catalogue.
Configurations and options
Single-busbar panels were built for breaker, load-break and metering duties at 12, 24 and 36 kV, with higher classes on request, and the order variables that set price were the voltage class, the busbar and feeder rating up to 2,500 A, the breaking duty up to 31.5 kA with 80 kA making, and the internal arc classification, available as IAC AFL or AFLR according to accessibility. Partitioned gas compartments rather than one tank are the design's defining feature and they change spares content. BIL values by voltage class are published in catalogue TK 501/15 rather than in the 2014 brochure, so acceptance documents should cite the catalogue.
Compatibility and dependencies
Partitioned gas compartments limit fault propagation, but each compartment is sealed, so a fault or gas loss in one section ends that section rather than being repaired in place. Interfaces are cable terminations, busbar couplings, the density monitoring contacts and the relay wiring. Ratings must be matched to the upstream source: 2,500 A busbars and 31.5 kA breaking with 80 kA making are the ceiling, and the making current governs where the panel can be closed onto a fault. Within the family, ZX0 is the block design and ZX2 is the double-bus-capable line retained to 40.5 kV; none of the three interchange. Removal and relocation both require certified SF6 handling.
Pricing and availability
Trend: rising Lead time, new: Successors: 52-104 weeks by class. Lead time, used or refurbished: No used channel (F-gas stranded). Warranty, used: 1-year typical from reconditioning dealers.
Lifecycle and maintenance
Gas-insulated switchgear targets 35-40 year service from sealed-for-life compartments with minimal maintenance: density monitoring, PD surveys, and mechanism service. Sealed tanks cannot be repaired in the field, so gas loss or internal fault usually ends the asset. EU F-gas and CARB rules add end-of-life SF6 recovery and reporting obligations that must be priced into any SF6 unit, while SF6-free designs (clean air, dry air, C4-FN mixtures) remove that liability entirely.
Thermal and emissions profile
The regulatory story is the insulation gas: SF6 carries a global warming potential of 24,300 and an atmospheric lifetime near 3,200 years. EU Regulation 2024/573 bars placing new SF6 switchgear at or below 24 kV on the EU market from 2026-01-01, extends to 52-145 kV classes from 2028, above 24 to 52 kV from 2030, and above 145 kV from 2032. California's CARB rule phases out acquisition of new SF6 gas-insulated equipment from 2025 on a staged schedule. Legacy SF6 gear remains legal to operate but faces stranded-asset discounts and end-of-life gas recovery obligations.
Common failure points
- Gas leakage — Density alarms and lockout; insulation margin lost as pressure falls
- Partial discharge in compartments — PD at spacers, particles, or terminations progressing to internal fault
- Operating mechanism — Spring and motor failures on switch and breaker drives
- Cable terminations — Tracking in cable boxes and poorly seated plug-in connectors
- Density monitor drift — False alarms or missed low-gas conditions from drifted gauges
- End-of-life gas liability — SF6 recovery and reporting costs land on the owner at decommissioning
Inspection checklist
Gas density: verify density monitors against nameplate fill (150 kPa class systems); alarm thresholds intact. Leak rate: review gas top-up logs; leakage above 0.5% per year fails modern acceptance. Gas quality: test SF6 moisture and decomposition before transfer; SO2 presence flags internal arcing. F-gas compliance: verify EU 2024/573 and CARB status; new SF6 MV gear is barred from the EU market from 2026. Partial discharge: UHF or acoustic survey per IEC 60270 practice; PD is the dominant latent defect. Vacuum interrupters: hipot test breaking units; interruption is vacuum even in gas-insulated designs. Mechanism: exercise and verify spring charge; check counters against 10,000-operation class ratings. Terminations: inspect cable boxes for tracking; verify stress cones and plug-in connectors seated.
Procurement channels
ABB sales handles legacy spares and service; the current ZX portfolio page directs ZX1.2 enquiries to sales. Decommissioned units route to certified SF6 recovery, which is a cost line rather than a credit.
Regional notes
A European IEC line at 12-36 kV, predominantly 50 Hz, absent from ABB's current ZX portfolio and handled by referral to sales, with no ANSI listing or North American channel. EU Regulation 2024/573 sets SF6 switchgear cutoffs at 2026 for 24 kV and below and 2028 for the classes above, so the European fleet is on a replacement path where removed units route to certified gas recovery. California's 1%-per-year emission cap from 2020 and its new-equipment phase-out from 2025 apply the same pressure to any US redeployment.
