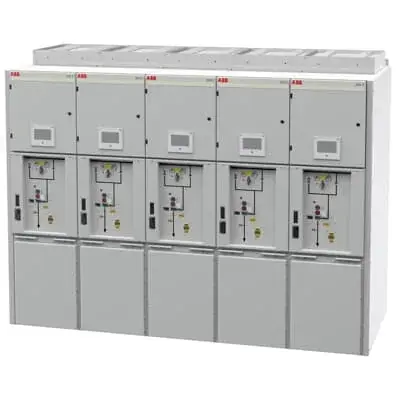

ABB ZX0 gas-insulated switchgear
Manufacturer: ABB
ABB ZX0 block-design SF6 switchgear, the legacy line whose successor PrimeGear ZX0 ships SF6-free at 12 kV
This model is part of SecondWatt’s switchgear research catalogue. Specifications and price observations are included where supported by sources. Equipment availability and commercial terms require confirmation.
ABB ZX0 dossier: legacy SF6 block switchgear at 12/24 kV with 11 kg gas inventories, F-gas stranding, PrimeGear ZX0 successor, inspection checklist.
The original ZX0 is a block-design SF6 gas-insulated MV switchgear for secondary and primary distribution at 12 and 24 kV, now legacy: ABB's current ZX portfolio lists ZX2, ZX0.2, and PrimeGear ZX0, and directs ZX0/ZX1.2 inquiries to sales. The legacy datasheet (DS 2446) documents 1,250 A breaker feeders, 25 kA/3 s with 62.5 kA peak, BIL 75 kV at 12 kV and 125 kV at 24 kV, internal arc IAC AFL/AFLR 25 kA 1 s, and sealed enclosures holding up to 11 kg of SF6 per block with built-in leakage monitoring.
The successor matters more to buyers: PrimeGear ZX0 runs 12 kV SF6-free on dry air (24 kV on SF6) at up to 2,500 A and 25 kA, marketed as the first switchgear that lets customers switch to a green insulation gas at any point.
No used ZX0 unit was listed anywhere in August 2026. Sealed SF6 blocks with F-gas liabilities are effectively unsaleable in the EU after Regulation 2024/573, so decommissioned ZX0 fleets are a gas-recovery pipeline, not a resale market.
Why it matters
ZX0 illustrates stranded-asset mechanics: an 11 kg SF6 block that leaked value the day the F-gas dates were set. Its built-in leakage monitor once exempted owners from routine leak checks; now the same gas inventory defines the decommissioning bill.
Who buys it
EU-style utilities and industrials own the ZX0 fleet; new buyers take PrimeGear ZX0 or competing SF6-free GIS. Secondary-market interest is limited to spares for existing blocks and to decommissioning services, since used SF6 blocks cannot be placed on the EU market and carry recovery obligations elsewhere.
Role in the data center
Legacy compact medium-voltage switching in EU-style campus and utility networks at 12-24 kV. For new campus work the relevant asset is the SF6-free PrimeGear successor rather than used ZX0 stock, and an installed ZX0 block should be treated as a decommissioning and gas-recovery item on the capital plan.
Key specifications
| Voltage classes | 12 / 24 kV |
|---|---|
| Breaker feeder current | 1,250 A |
| Short-time withstand | 25 kA/3 s; peak 62.5 kA |
| BIL | 75 / 125 kV (12 / 24 kV class) |
| Internal arc | IAC AFL / AFLR 25 kA 1 s |
| SF6 per block | up to 11 kg (sealed, monitored) |
| Status | legacy; refer-to-sales on ZX portfolio page |
| Successor ratings | PrimeGear ZX0: 2,500 A / 25 kA; 12 kV dry air |
| Load-break feeder current | 630 A |
| Construction standard | VDE 0671 part 200 (IEC 62271-200) |
Technical summary
Voltage: 12 / 24 kV. Feeders: 1,250 A breaker; 630 A load-break. Short-time withstand: 25 kA/3 s; peak 62.5 kA. BIL: 75 kV (12 kV) / 125 kV (24 kV). Internal arc: IAC AFL 25 kA 1 s (wall) / AFLR (free-standing). SF6 inventory: up to 11 kg per block, sealed, leakage-monitored. Standard: VDE 0671 part 200 (IEC 62271-200). Status: legacy; ZX portfolio directs inquiries to sales. Successor: PrimeGear ZX0 (12 kV dry air / 24 kV SF6, 2,500 A, 25 kA).
Major variations
Block-design panels in ring, breaker and metering configurations at 12 and 24 kV, with wall-standing (IAC AFL) and free-standing (IAC AFLR) arrangements carrying different accessibility classes. The family line runs from the original SF6 ZX0, ZX1.2 and ZX2 designs to the current ZX0.2 and PrimeGear ZX0, with ZX2 retained at up to 40.5 kV, 3,150 A single bus and 40 kA. Treat the legacy ZX0 and the current PrimeGear ZX0 as separate products, because they share a name but not a gas, a rating table or a spares list.
Configurations and options
Block-design panels were ordered as ring, breaker and metering configurations at 12 or 24 kV, with the wall-standing arrangement classified IAC AFL and the free-standing arrangement IAC AFLR, so the mounting choice changed the arc classification rather than being a site decision made later. Feeder ratings are 1,250 A on breaker ways and 630 A on load-break ways, with 25 kA/3 s short-time withstand, 62.5 kA peak, and BIL of 75 kV at 12 kV or 125 kV at 24 kV. The item that most changes cost of ownership is the sealed SF6 inventory, up to 11 kg per block with built-in leakage monitoring. The successor PrimeGear ZX0 is a different product running dry air at 12 kV.
Compatibility and dependencies
Sealed blocks are not field-repairable, so compatibility sits at the interfaces: cable connections, busbar couplings between blocks, the density monitoring signal and the protection relay wiring. Construction is to VDE 0671 part 200, the German adoption of IEC 62271-200, and the IAC AFL or AFLR classification only holds with the mounting arrangement and clearances it was tested in. Replacing a block within an installed run means a matching legacy block rather than a current ZX0.2 or PrimeGear ZX0 panel, which share the family name but not the gas, the rating table or the spares list. Any move or removal requires certified SF6 handling.
Pricing and availability
Trend: rising Lead time, new: Successor PrimeGear: 52-72 weeks (MV class). Lead time, used or refurbished: No used channel (F-gas stranded). Warranty, used: 1-year typical from reconditioning dealers.
Lifecycle and maintenance
Gas-insulated switchgear targets 35-40 year service from sealed-for-life compartments with minimal maintenance: density monitoring, PD surveys, and mechanism service. Sealed tanks cannot be repaired in the field, so gas loss or internal fault usually ends the asset. EU F-gas and CARB rules add end-of-life SF6 recovery and reporting obligations that must be priced into any SF6 unit, while SF6-free designs (clean air, dry air, C4-FN mixtures) remove that liability entirely.
Thermal and emissions profile
The regulatory story is the insulation gas: SF6 carries a global warming potential of 24,300 and an atmospheric lifetime near 3,200 years. EU Regulation 2024/573 bars placing new SF6 switchgear at or below 24 kV on the EU market from 2026-01-01, extends to 52-145 kV classes from 2028, above 24 to 52 kV from 2030, and above 145 kV from 2032. California's CARB rule phases out acquisition of new SF6 gas-insulated equipment from 2025 on a staged schedule. Legacy SF6 gear remains legal to operate but faces stranded-asset discounts and end-of-life gas recovery obligations.
Common failure points
- Gas leakage — Density alarms and lockout; insulation margin lost as pressure falls
- Partial discharge in compartments — PD at spacers, particles, or terminations progressing to internal fault
- Operating mechanism — Spring and motor failures on switch and breaker drives
- Cable terminations — Tracking in cable boxes and poorly seated plug-in connectors
- Density monitor drift — False alarms or missed low-gas conditions from drifted gauges
- End-of-life gas liability — SF6 recovery and reporting costs land on the owner at decommissioning
Inspection checklist
Gas density: verify density monitors against nameplate fill (150 kPa class systems); alarm thresholds intact. Leak rate: review gas top-up logs; leakage above 0.5% per year fails modern acceptance. Gas quality: test SF6 moisture and decomposition before transfer; SO2 presence flags internal arcing. F-gas compliance: verify EU 2024/573 and CARB status; new SF6 MV gear is barred from the EU market from 2026. Partial discharge: UHF or acoustic survey per IEC 60270 practice; PD is the dominant latent defect. Vacuum interrupters: hipot test breaking units; interruption is vacuum even in gas-insulated designs. Mechanism: exercise and verify spring charge; check counters against 10,000-operation class ratings. Terminations: inspect cable boxes for tracking; verify stress cones and plug-in connectors seated.
Procurement channels
Legacy spares and service run through ABB sales; the ZX portfolio page directs ZX0 enquiries to sales rather than listing the product. No open used market exists. Decommissioned blocks route to certified SF6 recovery, an obligation to price in before the crane is booked.
Regional notes
A European IEC product at 12 and 24 kV, built to VDE 0671 part 200 and predominantly 50 Hz, with no ANSI listing. EU Regulation 2024/573 bars new SF6 switchgear at and below 24 kV from 2026, so the installed European fleet is on a replacement path and the units coming out carry certified gas recovery obligations rather than resale value in their home market. California's rule caps SF6 emissions at 1% per year from 2020 and phases out new SF6 equipment from 2025, which closes the obvious export route as well.
