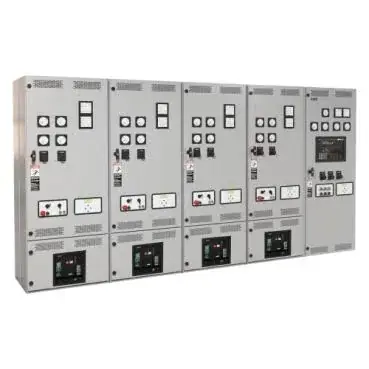

ASCO Power Technologies 7000 Series Low-Voltage Power Control System

Manufacturer: ASCO Power Technologies

ASCO 7000 Series Power Control System, the custom-engineered top tier that shares its name with an ATS family

This model is part of SecondWatt’s switchgear research catalogue. Specifications and price observations are included where supported by sources. Equipment availability and commercial terms require confirmation.

ASCO 7000 Series Power Control System dossier: custom generator paralleling lineups, the ATS naming trap, controls lifecycle, and inspection checklist.

Why it matters

Power control systems are the brains of every large standby plant, and their 15-20 year controls lifecycle against 30-plus year iron is the defining economic fact of the category. The ATS-versus-PCS distinction, with the 399.99 USD versus engineered-lineup contrast, is the single most expensive mis-purchase to avoid in paralleling gear.

Who buys it

Hospitals, hyperscale and colocation data centers, and universities with large multi-generator plants buy 7000 Series PCS new; existing owners buy controls modernization. Used-market buyers land on 7000 Series ATS units, a different product.

Role in the data center

Generator plant control for large standby fleets: paralleling, start sequencing, load add and shed, and the utility-interface logic behind the critical bus in hyperscale and hospital plants. It is the layer that turns a row of engines into a power plant, and its controls generation is what decides whether an inherited plant can be recommissioned or has to be retrofitted.

Key specifications

Technical summary

Type: custom-engineered LV power control system (paralleling). Range position: top tier above Series 300 and 4000 Series. Functions: generator paralleling, synchronizing, load add/shed, distribution, utility interface. Listing: UL-listed engineered lineups. Owner: Schneider Electric (ASCO business, since 2017). Naming trap: distinct from the 7000 Series ATS family. Controls: redundant PLC and HMI architectures per specification. Used market: no public priced PCS lineups. Class lead time: 45-90 weeks.

Major variations

Configurations scale by generator count, bus rating, utility-interface scheme (open, closed or soft transition) and distribution scope, and medium-voltage variants exist for larger plants alongside the low-voltage power control system. Controls architecture is specified per project, typically with redundant PLCs and HMIs. Below it in the range sit the configurable 4000 Series and the packaged Series 300. The ASCO 7000 Series automatic transfer switch family shares only the series number: different product, different enclosure, different controls.

Configurations and options

Everything on a 7000 Series Power Control System is specified rather than selected: generator count, bus continuous rating, breaker frames, the utility-interface scheme, and the depth of load add and shed logic. The interface scheme changes both price and commissioning time most, since open, closed and soft transition impose different protection, metering and utility-approval requirements. Controls architecture, typically redundant PLCs and HMIs, is written into the specification, and medium-voltage variants exist alongside the low-voltage system. A used lineup's nameplate says little here; the controls generation and the availability of program files and as-built drawings decide whether it can be recommissioned.

Compatibility and dependencies

The system has to interoperate in three directions at once: down to engine controls it starts and synchronises, across to the breakers whose close and trip circuits it drives, and up to the utility through an interface scheme the serving utility has approved. Closed and soft transition schemes add protection and metering requirements at that interface that open transition does not. Bus continuous rating and short-circuit withstand must cover the paralleled generator contribution and the utility source together. Sequence timing needs re-verification against NFPA 110 after any controls work. One naming point prevents a real purchasing error: the ASCO 7000 Series automatic transfer switch family shares the series number and nothing else, being a different product with a different enclosure and different controls.

Pricing and availability

Trend: rising Lead time, new: 45-90 weeks (engineered switchgear class). Lead time, used or refurbished: No PCS lineup channel; ATS components 1-4 weeks. Warranty, used: 1-year typical from reconditioning dealers.

Lifecycle and maintenance

Paralleling switchgear iron lasts 30+ years but its control systems turn over every 15-20: PLCs, HMIs, and network hardware go obsolete long before bus and breakers wear out. OEM modernization programs (Kohler switchgear service, ASCO, Eaton, Russelectric) replace controls in place with sequence re-verification and load testing, typically warranted 1-2 years. A used lineup's value concentrates in its breakers and bus; controls should be assumed a retrofit cost unless current.

Thermal and emissions profile

Switchgear produces no combustion emissions; the regulatory profile is electrical safety and materials. NFPA 70B became a standard in its 2023 edition, making maintenance programs mandatory rather than recommended, and arc-flash rules (NFPA 70E) govern work practices. LV air-insulated gear carries no F-gas exposure, and construction standards (UL 891, UL 1558, IEEE C37.20.1) plus arc-resistant options under IEEE C37.20.7 define the safety envelope buyers should verify.

Common failure points

• PLC and HMI obsolescence — Discontinued controllers and dead touchscreens risk weeks of downtime
• Program and settings loss — No PLC backup means no recovery after controller failure
• Control power systems — Failed batteries and chargers disable the entire paralleling function
• Breaker mechanisms — Sticky electrically-operated breakers miss the paralleling window
• Synchronizer drift — Out-of-window closures stress generators and trip protection
• Sensing and CT wiring — Bad CT/PT inputs corrupt load share and metering

Inspection checklist

Controls vintage: identify PLC generation and firmware; controllers older than 15 years risk obsolescence downtime. PLC redundancy: verify dual-master architecture; fail one controller and confirm bumpless transfer. HMI: verify touchscreen, alarm history, and event logs; displays are common 10-15 year failures. Synchronizer: test sync-check phase, voltage, and frequency windows against settings. Breakers: exercise every generator and tie breaker; 5-cycle class closing required for paralleling duty. Load add/shed: test priority sequencing through all programmed stages (typically 8). Protection: injection-test generator and feeder relays; verify device 32 reverse-power and 25 sync elements. Transfer modes: test open transition and any closed-transition mode; verify the 100 ms utility-parallel limit.

Procurement channels

Schneider and ASCO channels supply new power control systems and controls modernization for installed lineups.

Regional notes

A North American UL-listed engineered product for 60 Hz emergency and standby systems, designed around NFPA 110 and NEC Article 700 practice and supported through ASCO and Schneider Electric channels since the 2017 acquisition. Utility-interface schemes, particularly closed and soft transition, are approved by the serving utility, so an interface engineered for one utility's requirements does not transfer to another territory without review. No IEC equivalent exists to import.
