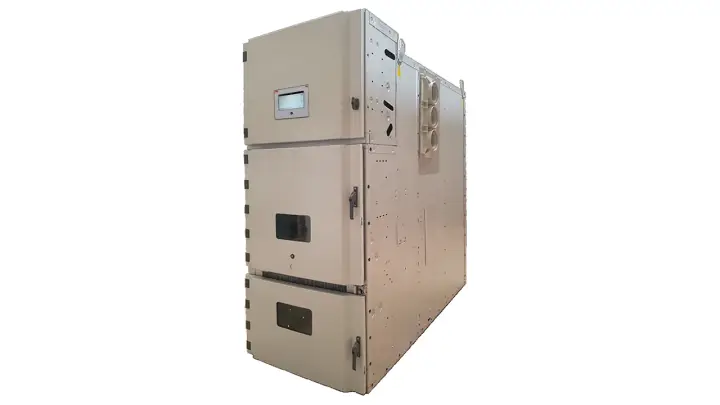

ABB UniGear Digital
Manufacturer: ABB
ABB UniGear Digital, the sensor and IEC 61850 option set that turns UniGear panels into digital switchgear
This model is part of SecondWatt’s switchgear research catalogue. Specifications and price observations are included where supported by sources. Equipment availability and commercial terms require confirmation.
ABB UniGear Digital dossier: KECA/KEVA sensors, Relion IEDs, and IEC 61850 across the UniGear family, host ratings, buyer guidance, inspection notes.
UniGear Digital is not a standalone switchgear frame: it is the digital configuration of the UniGear family, replacing conventional instrument transformers with KECA current and KEVA voltage sensors wired to Relion protection IEDs over IEC 61850 including GOOSE messaging. ABB introduced the concept in 2014 and extended it across UniGear ZS1 (12/17.5/24 kV), UniGear 550, 500R, and the MCC variant in 2015, citing more than 500,000 UniGear panels installed in over 100 countries as the addressable base.
The engineering case is measurement and copper: sensor accuracy across a wide current range eliminates CT saturation issues, panels standardize because sensors cover many ratings, and ABB claims roughly 250 MWh of losses avoided per typical substation over 30 years. Base electrical ratings are those of the host UniGear ZS1 panel: to 24 kV, 4,000 A, 63 kA.
No used UniGear Digital panel was listed in August 2026, and none should be expected under that name: on the secondary market a digital panel is a ZS1 with sensors, and its value concentrates in the Relion IED generation and firmware support status.
Why it matters
Digital MV switchgear is where electronics obsolescence meets 40-year iron: sensors and IEDs turn over on IT cycles while the panels outlive them. Treating UniGear Digital as a configuration rather than a separate frame is what tells a buyer where to look on a 'digital' panel: the Relion IED generation and its firmware support status, not the busbar.
Who buys it
Utilities and industrial buyers specifying new UniGear lineups choose the Digital option for sensor-based protection and IEC 61850 integration; data center MV rooms take it for condition-monitoring hooks. Used-market buyers encounter it as an attribute of ZS1 panels, where IED vintage decides whether the digital layer is an asset or a retrofit liability.
Role in the data center
The digital protection and monitoring layer on campus medium-voltage switchgear, feeding IEC 61850 and GOOSE data to power management and building management systems. On the secondary market it is an attribute to verify on a used UniGear ZS1 panel rather than a product to source on its own.
Key specifications
| Package type | digital option across UniGear family |
|---|---|
| Sensors | KECA current / KEVA voltage |
| Protection IEDs | ABB Relion family |
| Communications | IEC 61850 incl. GOOSE |
| Host panel ratings (ZS1) | to 24 kV / 4,000 A / 63 kA |
| Claimed loss avoidance | ~250 MWh / 30 years / substation |
| Installed UniGear base | 500,000+ panels / 100+ countries |
| Family extension announced | 2015-06-17 |
| Applies to | UniGear ZS1, UniGear 550, UniGear 500R and MCC |
| Concept introduced | 2014 |
Technical summary
Type: option package across UniGear ZS1 / 550 / 500R / MCC. Sensors: KECA current, KEVA voltage (replace CTs/VTs). Protection: Relion IEDs. Communications: IEC 61850 incl. GOOSE. Host ZS1 ratings: to 24 kV, 4,000 A, 63 kA. Claimed loss avoidance: ~250 MWh per substation over 30 years. Addressable base: 500,000+ UniGear panels, 100+ countries. Applies to: ZS1, UniGear 550, 500R, and MCC variants. Concept launch 2014; family extension announced 2015-06-17.
Major variations
The digital package applies across UniGear ZS1 in single-busbar, double-busbar and double-level arrangements, and across UniGear 550, UniGear 500R and the MCC variant. Sensor sets and Relion IED models vary by panel duty, so two panels carrying the same UniGear Digital label can differ materially in protection functions, accuracy class and firmware support horizon. On a used panel the IED generation, not the busbar rating, is what decides whether the digital layer is an asset or a retrofit cost.
Configurations and options
This is a configuration ordered on a new UniGear panel rather than a separate frame, and what changes price is the sensor and IED content: KECA current and KEVA voltage sensors replacing conventional CTs and VTs, the Relion IED model chosen for the bay duty, and the protection and metering functions licensed in it. Host panel choice sets the electrical envelope, whether ZS1, UniGear 550, UniGear 500R or the MCC variant. Two panels carrying the same UniGear Digital label can differ materially in protection functions, accuracy class and firmware support horizon, so on a used panel the IED generation and firmware baseline are the items that matter, not the busbar rating.
Compatibility and dependencies
The digital layer replaces instrument transformers with low-power sensors, so the protection scheme has to be built around IEDs that accept sensor inputs; a conventional relay expecting a 1 A or 5 A CT secondary will not drop in. Communications run on IEC 61850 including GOOSE messaging, which the station bus, power management system and any building management gateway must support. ABB's engineering guide 1VLG500007 defines the sensor and IED pairing, so a panel offered without a documented firmware baseline should be priced with sensor and IED replacement included. Host panel ratings are those of the underlying UniGear, up to 24 kV, 4,000 A and 63 kA on ZS1.
Pricing and availability
Trend: rising Lead time, new: Follows host UniGear panel (52-80 weeks class). Lead time, used or refurbished: No listings under this name. Warranty, used: 1-year typical from reconditioning dealers.
Lifecycle and maintenance
Metal-clad MV switchgear routinely serves 40+ years: vacuum interrupters rated for 10,000-30,000 operations far outlast the mechanical duty standby service imposes, so lineup life is governed by insulation condition and relay/controls vintage. Breakers recondition readily and trade as units, while lineups modernize in place with digital relays and retrofit breakers. ANSI/NETA MTS acceptance testing at purchase plus PD surveys in service are the condition gates.
Thermal and emissions profile
Switchgear produces no combustion emissions; the regulatory profile is electrical safety and materials. NFPA 70B became a standard in its 2023 edition, making maintenance programs mandatory rather than recommended, and arc-flash rules (NFPA 70E) govern work practices. LV air-insulated gear carries no F-gas exposure, and construction standards (UL 891, UL 1558, IEEE C37.20.1) plus arc-resistant options under IEEE C37.20.7 define the safety envelope buyers should verify.
Common failure points
- Vacuum interrupters — Loss of vacuum ends interrupting capability with no external sign
- Insulation tracking and PD — Partial discharge across dusty or damp insulation progressing to flashover
- Racking and interlocks — Damaged racking screws and defeated interlocks from forced operation
- Protection relays — Obsolete or drifted relays mis-operate under fault
- Instrument transformers — CT/VT failures disable metering and protection inputs
- Space heater failure — Condensation-driven tracking in unheated outdoor or humid gear
Inspection checklist
Vacuum integrity: hipot test each interrupter per OEM procedure (e.g., 36 kV test on 15 kV class). Insulation resistance: megger bus and breakers at 2,500-5,000 V; compare to ANSI/NETA MTS tables. Contact resistance: micro-ohm each pole; investigate imbalance beyond 50% between phases. Partial discharge: ultrasonic and TEV survey; investigate any reading 6 dB above baseline. Contact erosion: measure vacuum interrupter erosion marks against the OEM wear allowance. Racking mechanism: cycle connect/test/disconnect positions 3 times each; verify interlocks and shutters. Mechanism timing: verify open/close times; closing beyond 5 cycles flags mechanism trouble. Bus insulation: inspect epoxy and boots for tracking or corona; clean and torque joints. Instrument transformers: verify CT/VT ratios, insulation, and fusing.
Procurement channels
Ordered as a configuration on new UniGear panels through ABB and its channel partners. On the used market the digital layer travels with its host ZS1 panel and is valued through the Relion IED vintage and firmware support status, so buyers should price sensor and IED replacement into any panel offered as 'digital' without a documented firmware baseline.
Regional notes
An IEC-market option set on IEC-market panels, following the host UniGear build, which ABB produces in IEC, CSA, GB/DL and GOST versions. IEC 61850 with GOOSE is the communications basis, which suits European and utility station architectures; a North American project standardised on DNP3 or Modbus for the same duty needs a gateway. US exposure to a digital UniGear panel is typically inside an imported modular substation rather than a domestically specified lineup.
