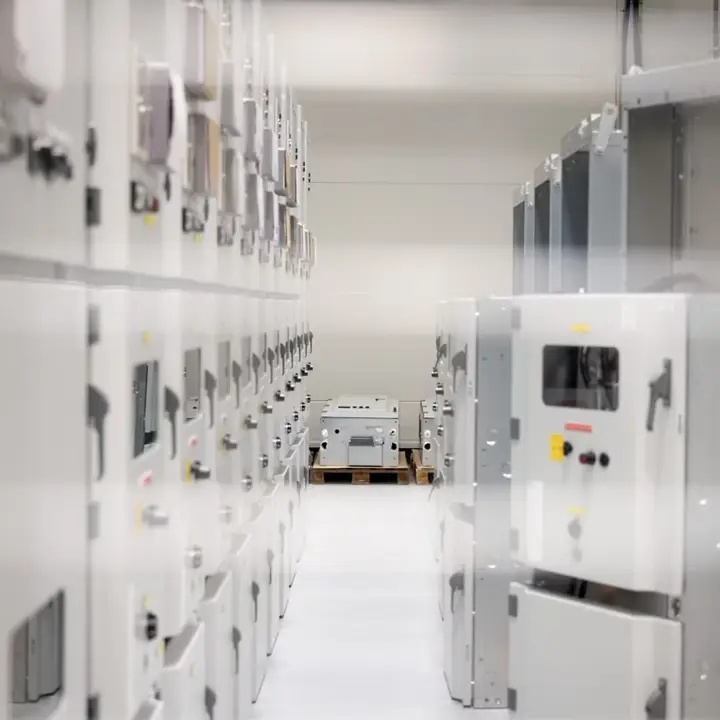

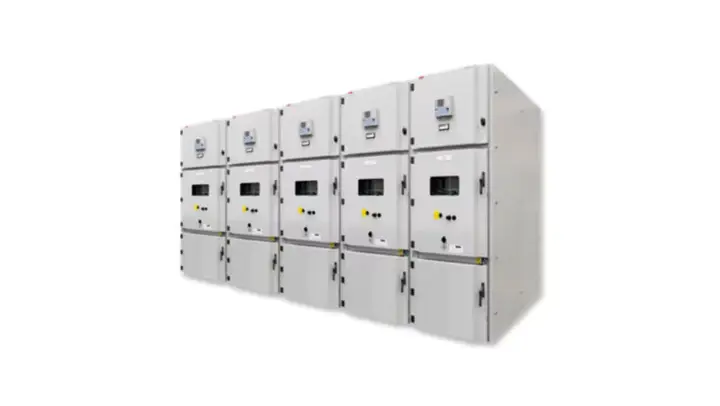

ABB UniGear ZS1 air-insulated switchgear
Manufacturer: ABB
ABB UniGear ZS1 metal-clad switchgear to 24 kV, 4,000 A, and 63 kA, the IEC primary-distribution flagship
This model is part of SecondWatt’s switchgear research catalogue. Specifications and price observations are included where supported by sources. Equipment availability and commercial terms require confirmation.
ABB UniGear ZS1 dossier: metal-clad switchgear to 24 kV, 4,000 A, 63 kA with VD4 breakers, used-market structure, clone warnings, inspection checklist.
UniGear ZS1 is ABB's flagship air-insulated, metal-clad MV switchgear for primary distribution, rated higher than most catalogs assume: up to 24 kV in single and double busbar builds (17.5 kV double-level), busbar currents to 4,000 A, and short-time withstand to 63 kA on single busbar (31.5 kA double busbar, 50 kA double-level). Internal arc classification is IAC A-FLR per IEC 62271-200, with IEC, CSA, GB/DL, and GOST builds and withdrawable VD4-family vacuum breakers.
The installed base exceeds 500,000 UniGear panels across 100+ countries, which should feed a secondary market, yet no genuine used ZS1 lineup was listed in August 2026. What does trade is the breaker: a VD4 12 kV, 630 A unit sold recently at 1,679 USD through Surplus Record, and ABB VD4s carry their own used category. Chinese 'UniGear ZS1-type' clone panels circulate on trade platforms and are not ABB product.
Against 52-80 week new-build leads for the class, breaker-level trading plus panel modernization is how the ZS1 fleet stays serviceable, and where listing demand concentrates.
Why it matters
ZS1 is the largest-fleet IEC metal-clad platform, and its ratings ceiling (63 kA) covers dense urban and industrial faults most AIS cannot. For a buyer the asset is breaker liquidity: VD4s trade with real prices while lineups do not, so per-breaker pricing is the entry point into a 500,000-panel installed base.
Who buys it
Utilities, industrial plants, and IEC-market data centers specify ZS1 new; used demand concentrates in VD4 replacement breakers and spares for existing lineups. EPCs importing IEC-spec modular substations bring ZS1 panels into US projects, creating stateside spares demand the domestic dealer network barely covers.
Role in the data center
Campus medium-voltage primary distribution in IEC-spec builds, taking 11-24 kV feeds into hall-level unit substations and feeding transformer and generator bays. In US projects it usually arrives inside imported modular substations, where VD4 replacement breakers are what keeps the lineup serviceable.
Key specifications
| Voltage ceiling | 24 kV |
|---|---|
| Busbar current | 4,000 A |
| Short-time withstand (single bus) | 63 kA |
| Double busbar withstand | 31.5 kA |
| Internal arc class | IAC A-FLR |
| Breaker family | ABB VD4 withdrawable vacuum |
| Standards builds | IEC, CSA, GB/DL, GOST |
| Observed VD4 sale | 1,679 USD (12 kV, 630 A) |
| Installed base | 500,000+ panels |
| Double-level voltage | 17.5 kV |
| Double-level withstand | 50 kA |
Technical summary
Voltage: up to 24 kV (single/double busbar); 17.5 kV double-level. Busbar current: up to 4,000 A (1,600 A double-level). Short-time withstand: 63 kA single busbar; 31.5 kA double; 50 kA double-level. Internal arc: IAC A-FLR (IEC 62271-200). Breakers: withdrawable ABB VD4 family vacuum. Standards: IEC, CSA, GB/DL, GOST builds. Installed base: 500,000+ UniGear panels, 100+ countries. Digital option: UniGear Digital (KECA/KEVA sensors, Relion IEDs).
Major variations
Single-busbar, double-busbar and double-level builds, each with its own ceiling: 24 kV and 63 kA on single busbar, 31.5 kA on double busbar, and 17.5 kV with 1,600 A and 50 kA on double-level. Regional builds cover IEC, CSA, GB/DL and GOST requirements. The UniGear Digital sensor-and-IED package is a configuration on top of any of these, and UniGear 550 and 500R are the compact siblings while ZS2 extends the family to 36 kV. Listing note: 'ZS1-type' panels from Chinese builders are copies rather than ABB surplus.
Configurations and options
The order variables that change price and panel length are the busbar arrangement, single busbar to 24 kV, 4,000 A and 63 kA, double busbar at 31.5 kA, or double-level at 17.5 kV, 1,600 A and 50 kA; the panel duty, incomer, feeder, bus-tie or metering; the withdrawable VD4-family breaker rating; the protection relay package; and whether the UniGear Digital sensor and IED option is fitted. Standards build is a further axis, since ABB produces IEC, CSA, GB/DL and GOST versions. A used-panel nameplate has to be read for busbar arrangement first, because the fault rating follows it rather than the family name.
Compatibility and dependencies
Bus continuous rating and the 63 kA short-time withstand have to be matched to the actual upstream transformer and network fault level rather than to the family ceiling, because the double-busbar and double-level builds are rated lower. Withdrawable VD4 breakers are family-specific: a VD4 of the wrong rating, pole pitch or truck generation will not rack into a given cassette. Protection is relay-based, so the relay generation and its protocol, IEC 61850 on Relion IEDs in digital panels, set what the station and power management systems can read. Internal arc classification IAC A-FLR under IEC 62271-200 is valid only with the tested clearances, exhaust path and room construction.
Pricing and availability
Trend: rising ABB publishes no list price for a ZS1 panel, and no genuine used lineup was offered on an open channel through August 2026, so this line has no nameplate price history to plot. The nearest dated observation is a component: an ABB VD4 12 kV, 630 A breaker sold at 1,679 USD through Surplus Record. Two documented category-level drivers set direction instead, medium-voltage switchgear up 50% since 2021 per Electrical Trader's 2026-04-01 review, and 52-80 week new-build lead times for the metal-clad class per Terrapin Construction Group, 2026-06-10. Lead time, new: 52-80 weeks (15 kV metal-clad class). Lead time, used or refurbished: Breaker-level: 1-8 weeks; lineups rare. Warranty, used: 1-year typical from reconditioning dealers.
Lifecycle and maintenance
Metal-clad MV switchgear routinely serves 40+ years: vacuum interrupters rated for 10,000-30,000 operations far outlast the mechanical duty standby service imposes, so lineup life is governed by insulation condition and relay/controls vintage. Breakers recondition readily and trade as units, while lineups modernize in place with digital relays and retrofit breakers. ANSI/NETA MTS acceptance testing at purchase plus PD surveys in service are the condition gates.
Thermal and emissions profile
Switchgear produces no combustion emissions; the regulatory profile is electrical safety and materials. NFPA 70B became a standard in its 2023 edition, making maintenance programs mandatory rather than recommended, and arc-flash rules (NFPA 70E) govern work practices. LV air-insulated gear carries no F-gas exposure, and construction standards (UL 891, UL 1558, IEEE C37.20.1) plus arc-resistant options under IEEE C37.20.7 define the safety envelope buyers should verify.
Common failure points
- Vacuum interrupters — Loss of vacuum ends interrupting capability with no external sign
- Insulation tracking and PD — Partial discharge across dusty or damp insulation progressing to flashover
- Racking and interlocks — Damaged racking screws and defeated interlocks from forced operation
- Protection relays — Obsolete or drifted relays mis-operate under fault
- Instrument transformers — CT/VT failures disable metering and protection inputs
- Space heater failure — Condensation-driven tracking in unheated outdoor or humid gear
Inspection checklist
Vacuum integrity: hipot test each interrupter per OEM procedure (e.g., 36 kV test on 15 kV class). Insulation resistance: megger bus and breakers at 2,500-5,000 V; compare to ANSI/NETA MTS tables. Contact resistance: micro-ohm each pole; investigate imbalance beyond 50% between phases. Partial discharge: ultrasonic and TEV survey; investigate any reading 6 dB above baseline. Contact erosion: measure vacuum interrupter erosion marks against the OEM wear allowance. Racking mechanism: cycle connect/test/disconnect positions 3 times each; verify interlocks and shutters. Mechanism timing: verify open/close times; closing beyond 5 cycles flags mechanism trouble. Bus insulation: inspect epoxy and boots for tracking or corona; clean and torque joints. Instrument transformers: verify CT/VT ratios, insulation, and fusing.
Procurement channels
New through ABB; used VD4 breakers through Surplus Record's ABB vacuum-breaker category and dealers (Lenmark observed). No genuine used ZS1 lineup was listed as of August 2026; clone listings on trade platforms require vetting.
Regional notes
An IEC line, with CSA, GB/DL and GOST builds also produced, and no ANSI/IEEE C37.20.2 equivalent, so a 50 Hz ZS1 lineup is not a drop-in for a North American 60 Hz project without significant engineering. US buyers usually meet ZS1 inside imported modular substations, where VD4 replacement breakers keep the lineup serviceable and domestic dealers rarely stock IEC breaker frames. Panels offered on trade platforms as ZS1-type from Chinese builders are locally made copies rather than ABB product.
