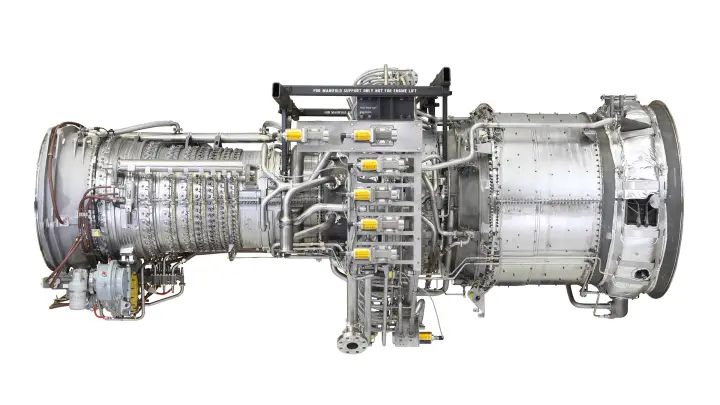

GE Vernova LM2500

22-37 MW aeroderivative gas turbine family for fast-track power, peaking, and data center bridge duty

GE Vernova LM2500 is one of 21 gas turbines tracked in the SecondWatt catalogue, each with specifications, lead times and indicative secondary-market pricing.

GE Vernova LM2500 gas turbine guide: 22-37 MW variants, verified OEM specs, used-market pricing from 1.26M USD, inspection checklist, and failure points.

The GE LM2500 is a two-shaft aeroderivative gas turbine derived from the CF6-6 turbofan, in service since 1969 and still in production. ISO ratings run from 25.06 MW for the base engine through 30.2 MW for the LM2500+ and 36.98 MW for the LM2500+G4, with the packaged LM2500XPRESS delivering 34.5 MW net at 39.4% efficiency. The family has accumulated roughly 140 million operating hours across industrial and naval fleets. Operators deploy the LM2500 wherever fast, compact capacity matters: utility peakers, oil and gas facilities, 36 navies, and now behind-the-meter data center power. It reaches full load in 5 minutes and Crusoe ordered 29 LM2500XPRESS units for roughly 1 GW at the Abilene compute campus. DLE combustors hold NOx to 15 ppm on natural gas. Secondary-market supply is real but tightening. Live 2026 listings include overhauled 22 MW units in Asia asking 1.26-1.45 million USD, ex-naval engines from fleet retirements, and zero-timed cores at US dealers, while most western dealers have shifted to price-on-request. Refurbishment channels such as WattStock CTP and GE-authorized depots return engines to zero-hour condition.

Why it matters

Aeroderivative capacity is the scarcest fast-deploy commodity in the 2026 power market. GE Vernova reservations run into 2031, Wood Mackenzie pegs sector price inflation at 195% since 2019, and data center buyers are absorbing used LM2500 supply for bridge power. A deep global MRO ecosystem and roughly 140 million fleet hours keep used units financeable and insurable.

Who buys it

Data center developers and EPC partners buy LM2500-class units for bridge and prime power blocks, alongside independent power producers building peakers, oil and gas operators, and utilities on island grids. The trigger is delivery: a used or surplus unit ships in weeks against multi-year OEM queues, and Crusoe's 29-unit XPRESS order validated the class for hyperscale campuses.

Role in the data center

Bridge or prime generation block of 22-37 MW per unit behind the meter, deployed in N+1 multi-unit rows feeding medium-voltage switchgear upstream of the UPS plant.

Key specifications

Technical summary

ISO output, LM2500 / LM2500+ / LM2500+G4: 25.06 / 30.20 / 36.98 MW Net output, LM2500XPRESS +G4 DLE: 34.5 MW Net efficiency, XPRESS +G4: 39.4 % Heat rate, XPRESS +G4: 8669 Btu/kWh LHV Pressure ratio, base / plus variants: 18:1 / 22:1 Exhaust flow, +G4: 93 kg/s Exhaust temperature, +G4 packaged: 543 C Shaft speed, 60 Hz direct drive: 3600 rpm NOx with DLE combustor: 15 ppmvd at 15% O2 Start to full load: 5 minutes Hot section inspection interval: 25000 hours Major overhaul interval: 50000 hours

Configurations and options

Used-market units appear as complete gensets (turbine, gearbox for 50 Hz, generator, controls), bare gas generators, or trailer-mounted TM2500 mobile packages. Common options include dual-fuel skids, water injection for NOx control on SAC units, inlet fogging, and Mark V through Mark VIe control generations.

Compatibility and dependencies

Requires high-pressure fuel gas supply, inlet air filtration, and either direct 3,600 rpm coupling at 60 Hz or a reduction gearbox at 50 Hz. DLE units need fuel Wobbe Index control inside the OEM band; water-injected SAC units need demineralized water treatment. Controls integration effort depends on the Mark-series generation installed.

Pricing and availability

Published price range: $1,260,000 – $8,500,000. Trend: up Public asks were flat 2016-2019: 7LM2500 marine pairs at 2.2 million EUR each in July 2016 and TM2500 mobile sets at 8.5 million USD in December 2017. After 2024 western dealers stopped publishing prices; live 2026 asks for overhauled 22 MW units in Asia run 1.26-1.45 million USD while Wood Mackenzie reports sector prices up 195% since 2019. Lead time, new: 36-72 months. Lead time, used or refurbished: 4-16 weeks. Warranty, used: As-is typical; OEM-backed via WattStock CTP refurb.

Lifecycle and maintenance

Hot section inspection falls at 25,000 hours on natural gas and major overhaul at 50,000 hours per Baker Hughes packaging documentation; GE claims fleet reliability above 99.8%. Depot exchanges through GE Vernova, MTU Maintenance, IHI, and EthosEnergy return engines to zero-hour condition, and WattStock CTP refurbishments deliver in six months or less with an OEM-backed warranty. Well-maintained engines run multiple 25,000-hour cycles; 1980s-vintage cores remain in service.

Common failure points

• Gas fuel control valves — Trips and failed starts; top forced-outage count in WTUI fleet data
• Power turbine blades — Vibration and downstream damage after thermal distress during uncompensated starts
• Nitride bearings (4B, 5R, 7B) — Hard-particle contamination in oil analysis
• DLE fuel manifold hoses — Chafe wear from hose-to-bracket contact, fuel leaks
• TLO lube pump splines — Spline fracture causing oil loss and clutch starvation
• T48 thermocouples — Erratic exhaust temperature spread readings

Inspection checklist

Hot section — borescope HPT stage 1 blades for trailing-edge oxidation; reject if hours since hot section inspection exceed 25,000 Gas generator history — verify total hours against the 50,000-hour major overhaul interval; price as a core if the major is due within 5,000 hours Nitride bearings (4B, 5R, 7B) — confirm Service Bulletins 304-306 and 309 compliance and review oil-filter debris records from the last 1,000 hours DLE fuel manifold hoses — inspect for contact wear at P-clamps; reject any hose with chafe-through of the outer braid Fuel control and regulating valves — bench-test gas fuel valves; this system logged 53 forced-outage incidents in one WTUI reporting year Power turbine blades — borescope for thermal distress; a damaged PT blade set carried a roughly 6-month repair lead in fleet reporting Compressor — borescope stages 1-3 leading edges for FOD and erosion; reject blend repairs deeper than OEM limits VBV/VSV variable geometry — cycle through full range and verify actuator response against rigging specification T48 thermocouple harness — verify probes read within a 20 C spread at steady load; replace suspect probes before the acceptance run Sump vent and lube system — check flexible hoses for fretting wear and verify TLO pump spline condition per fleet service reporting Water or steam injection hardware (SAC units) — pressure-test manifolds; verify NOx at 25 ppmvd or better under load where permits require Generator and gearbox (50 Hz sets) — megger stator windings; insulation resistance below 100 megohms warrants a rewind quote Controls — identify Mark IV/V/VI/VIe generation; budget a controls migration for anything older than Mark VI Load test — run a 4-hour test at rated output; reject if output falls more than 5% below ISO-corrected expectation Records — require complete maintenance logs, borescope history, and depot or CTP overhaul certificates with serial-number traceability

Procurement channels

Units trade through dealer-brokers (Power Plants Online, USP&E, Phoenix Equipment), Asian and Middle East trading houses, ex-naval disposal channels, and refurbishment programs (WattStock CTP, GE Vernova depots, MTU Maintenance, IHI). High-value units increasingly move off-market on request.

Regional notes

60 Hz units dominate North American supply; 50 Hz gensets surface from Europe, the Middle East, and Asia, plus ex-naval engines from fleet retirements worldwide. Post-2024 western listings are largely price-on-request; published asks persist mainly at Asian trading houses.
