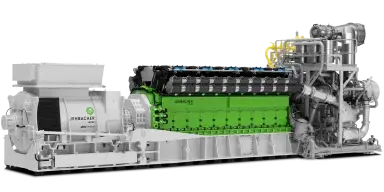

Jenbacher J920 FleXtra
The Jenbacher flagship at 9,542 kW and 48.7%, the best published heat rate in the range at about 7,006 Btu/kWh
Jenbacher J920 FleXtra is one of 23 gas engines tracked in the SecondWatt catalogue, each with specifications, lead times and indicative secondary-market pricing.
Jenbacher J920 FleXtra specs: 9,542 kW at 60 Hz, 48.7% electrical efficiency, a 2 minute start, NOx basis and North American channel and pricing notes.
The Jenbacher J920 FleXtra is the largest engine INNIO offers, rated 9,542 kW at 60 Hz with electrical efficiency up to 48.7%. That is the best published electrical efficiency in the Jenbacher range and works out to about 7,006 Btu/kWh on a lower heating value basis, computed as 3,412.14 divided by 0.487. At 50 Hz it is rated 10,606 kW with 10,300 kW of thermal output. It is the only Jenbacher that publishes a start figure: 10.6 MW of electric power from the start in 2 minutes, quoted at the 50 Hz rating and qualified by site conditions. Published 60 Hz voltage runs 480 V to 13.8 kV, which is North American switchgear range, against 10.5 kV and 11 kV at 50 Hz. INNIO quotes total efficiency of about 94% in combined heat and power service, which requires a thermal host and is not achievable at a data center with no heat sink. The engine was introduced to North America in June 2014, announced by GE while it still owned the business. The current parent is INNIO Group, listed on Nasdaq as INIO since June 2026, and the selling entity is INNIO Jenbacher North America LLC. Neither of the two 2026 gigawatt data center orders used this model; both were built on J624 and J620 engines.
Why it matters
At 48.7% the J920 FleXtra posts the best published electrical efficiency of any Jenbacher, about 610 Btu/kWh better than the J624. It is also the only Jenbacher with a published start time, at 10.6 MW in 2 minutes. That combination puts it head to head with the Wartsila 34SG, which publishes 10.8 MW, 47.6% and the same 2 minutes to full load.
Who buys it
Utilities and independent power producers buying dispatchable gas capacity in 10 MW increments, and large district energy or industrial CHP schemes with a matching thermal load. Also grid support operators who value the published 2 minute start. Buyers who want the best available heat rate in the reciprocating class and can absorb a coarser block size than the Type 6 family offers.
Role in the data center
Prime power at campus scale where the buyer wants the fewest units and the best heat rate. Both 2026 gigawatt orders were built on J624 and J620 engines rather than this model, so its data center track record is thinner than its efficiency figure suggests. A 9,542 kW block is coarse for a phased buildout.
Key specifications
| Electrical output, 60 Hz | 9,542 kW |
|---|---|
| Electrical output, 50 Hz | 10,606 kW |
| Rating basis | DIN ISO 3046 continuous at generator terminals, +5% tolerance standard |
| Electrical efficiency | up to 48.7 % |
| Heat rate (computed) | about 7,006 Btu/kWh LHV |
| Thermal output, 60 Hz | 9,300 kW |
| Thermal efficiency | up to 47.0 % |
| Total efficiency, CHP service | about 94 % |
| Start capability | 10.6 MW from start in 2 minutes, at 50 Hz minutes |
| Voltage range, 60 Hz | 480 V to 13.8 kV volts |
| Voltage range, 50 Hz | 10.5 kV and 11 kV volts |
| Published NOx basis | 250 and 500 mg/Nm3 at 5% O2, dry mg/Nm3 |
| NOx converted to US reference | 45.2 and 90.4 ppmvd at 15% O2 |
| Introduced to North America | June 2014 date |
| Production site | Jenbach, Tyrol, Austria (no North American assembly) location |
Technical summary
Electrical output: 9,542 kW at 60 Hz, DIN ISO 3046 continuous at generator terminals. Electrical output: 10,606 kW at 50 Hz. Electrical efficiency: up to 48.7%. Heat rate: about 7,006 Btu/kWh LHV, computed as 3,412.14 / 0.487. Thermal output: 9,300 kW at 60 Hz, 10,300 kW at 50 Hz. Thermal efficiency: up to 47.0%. Total efficiency in CHP service: about 94%, requires a thermal host. Start capability: 10.6 MW from the start in 2 minutes, quoted at 50 Hz. Voltage: 480 V to 13.8 kV at 60 Hz; 10.5 kV and 11 kV at 50 Hz. Published NOx basis: 250 and 500 mg/Nm3 at 5% O2, dry. Introduced to North America: June 2014.
Configurations and options
SCR and oxidation catalyst are catalogued INNIO options. INNIO publishes no outlet NOx figure for its SCR option as of 31 August 2026. Combined heat and power configuration is what the about 94% total efficiency claim depends on and it requires a thermal host. Hydrogen status, shipping versus announced: INNIO markets Jenbacher engines as Ready for H2, and in April 2026 demonstrated 100% hydrogen operation at 3 MW with the Net Zero Innovation Hub for Data Centers. That was a demonstration, not a shipment. Clarke Energy, an authorised distributor, describes 100% hydrogen as a future conversion whose cost and timeline require individual clarification. No catalogued hydrogen model, commercial availability date or derate figure is published, and this model's own specification block states no hydrogen capability.
Compatibility and dependencies
At 9,542 kW the interconnection, gas supply pressure and air permit are all likely to be governing constraints before the engine is. The about 94% total efficiency figure is unavailable without heat recovery.
Pricing and availability
Comparable secondary-market band: 2000–3150 $ per kW installed. Trend: rising Direction is up on category demand; no J920 FleXtra has been listed publicly as of August 2026. Large-bore machines in this class are sold into engineered projects rather than listed. Where a used unit does surface, hours and overhaul history will set the price rather than build year. Lead time, new: INNIO publishes no lead time for this model. Neither 2026 gigawatt data center order used the Type 9, so factory slots for it are not visibly consumed by the data center backlog in the way Type 6 slots are.. Lead time, used or refurbished: No used J920 FleXtra was listed on the secondary market as of August 2026; no used lead time is published..
Lifecycle and maintenance
INNIO publishes no overhaul interval for the Type 9 as of August 2026, and the up to 60,000 hour figure widely quoted for Jenbacher is a Type 6 distributor figure that does not transfer to this platform. Treat any Type 9 interval quoted by a seller as the seller's own figure until the servicing distributor confirms it in writing. DOE gives 92% minimum availability for reciprocating engines as a class and non-fuel O&M of about 1.3 cents/kWh at the top of its size range, with SCR adding 0.25 cents/kWh. The North American installed population of Type 9 machines is far smaller than Type 6, so parts and specialist labour should be confirmed before purchase rather than assumed.
Thermal and emissions profile
INNIO publishes Type 9 performance against two NOx bases: 250 and 500 mg/Nm3 at 5% O2, dry. Converting with 22.414/46 for NO2 and the oxygen correction 5.9/15.9 gives 45.2 and 90.4 ppmvd at 15% O2. 40 CFR 60 Subpart JJJJ caps lean-burn natural gas engines at or above 500 HP at 1.0 g/HP-hr NOx, which is 82 ppmvd at 15% O2, with CO at 2.0 and VOC at 0.7 g/HP-hr. The low-NOx tune clears that natively at 55% of the limit, while the 500 mg/Nm3 tune sits 10.2% above it and needs SCR. Formaldehyde is excluded from the JJJJ VOC definition and falls under NESHAP RICE Subpart ZZZZ. At 9,542 kW a single unit is large enough that major source permitting thresholds and non-attainment New Source Review become the governing constraint rather than NSPS.
Common failure points
- Pistons, liners and bearings — Rising blow-by and oil consumption with no published interval to measure it against
- Turbocharger — Output short of the 9,542 kW rating at 60 Hz, worse at high ambient
- Ignition system, plugs and coils — Misfire and measured efficiency below 48.7%
- Gas train and fuel quality — Detonation, knock retard and unplanned derate
- Heat recovery equipment — Total efficiency well below the about 94% figure INNIO quotes
- SCR catalyst and urea dosing — NOx creeping toward the 82 ppmvd permit ceiling
Inspection checklist
Hours since major overhaul: INNIO publishes no Type 9 interval, so get the actual overhaul plan in writing from the servicing distributor. Do not apply the Type 6 figure: the up to 60,000 hour number is a Type 6 distributor figure and does not transfer to a Type 9. Oil analysis trend: pull the last 5 samples for wear metals, viscosity and total base number. Oil and oil filter history: Type 6 practice is service about every 1,000 to 2,000 hours, so ask what the Type 9 plan actually specifies. Verified output against the 9,542 kW rating at 60 Hz: witness a load test at site ambient, not ISO conditions. Verified electrical efficiency against 48.7%: the flagship claim is efficiency and it should be measured, not assumed. Start time verification: INNIO publishes 10.6 MW in 2 minutes at 50 Hz, so confirm the equivalent for a 60 Hz build.
Procurement channels
New units go through INNIO Jenbacher North America LLC, Houston, and its authorised distributors Clarke Energy, Enerflex, Northeast Energy Systems and Western Energy Systems. No used J920 FleXtra was listed on the secondary market as of August 2026. There is no North American assembly. The lead production site is Jenbach, Tyrol, Austria, so every unit sold into a US project is an import, against an order book already carrying about 2.6 GW of committed data center capacity through 2028. Treat freight, customs and tariff exposure as live line items.
Regional notes
The Type 9 is listed on the North American site at up to 10,606 kW per engine and publishes a 60 Hz voltage range of 480 V to 13.8 kV, which is North American switchgear range. The North American installed population is nonetheless much smaller than the Type 6 family.
