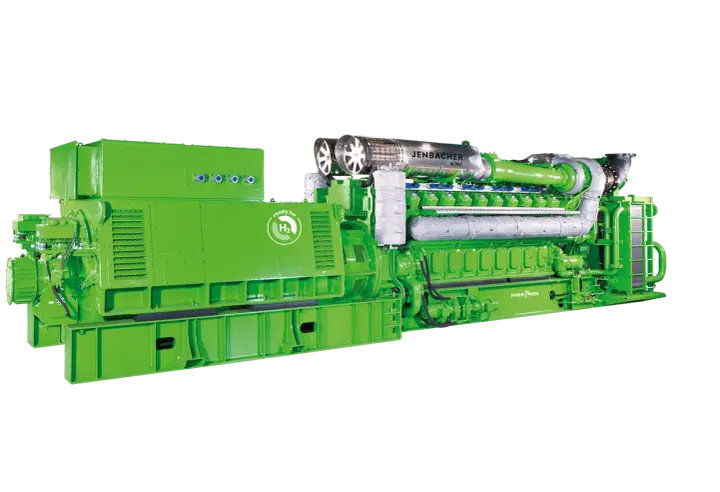

Jenbacher J620 Fast Start
INNIO's own data center engine, 3,091 kW at 60 Hz, trading output for start speed and transient response
Jenbacher J620 Fast Start is one of 23 gas engines tracked in the SecondWatt catalogue, each with specifications, lead times and indicative secondary-market pricing.
Jenbacher J620 Fast Start specs: 3,091 kW at 60 Hz, 43.0% efficiency, and what INNIO's data center engine gives up against a standard J620 unit.
The Jenbacher J620 Fast Start is the one engine in the Jenbacher catalog that INNIO markets at data centers by name. Its product page describes it in exactly those words: a high transient natural gas solution for data center applications. It is a distinct catalog item with its own derated figures, not an option code on a standard J620. At 60 Hz it is rated 3,091 kW at electrical efficiency up to 43.0%, and at 50 Hz 3,114 kW at up to 43.3%. Against the standard J620's 3,349 kW at 44.8%, the Fast Start gives up 258 kW and about 1.8 efficiency points. That trade is the product: start speed and transient response bought with output and heat rate. The 43.0% figure works out to roughly 7,935 Btu/kWh LHV, computed as 3,412.14 divided by 0.430. Published 60 Hz voltage runs 480 V to 13.8 kV, which is North American switchgear range. INNIO does not publish a start time in seconds for this model, which is a real gap given that start speed is the entire argument. Its nearest competitor, the Rolls-Royce mtu Series 4000 L64, does publish one at 2.8 MW in 45 seconds.
Why it matters
This is INNIO's answer to the question the whole category is being asked in 2026: can a reciprocating gas engine follow data center load. It is the only Jenbacher whose own product page names data centers as the application. The 258 kW and 1.8 efficiency points it gives up against a standard J620 quantify exactly what fast response costs on this platform.
Who buys it
Data center developers and behind-the-meter providers whose binding requirement is transient response rather than heat rate, particularly where the engine must pick up step load from an accelerated compute cluster. Also grid support and fast-start peaking operators. Buyers who compared a standard J620 and found its transient capability insufficient for the duty.
Role in the data center
Prime power with load following. This is the only Jenbacher whose own product page names data centers as the application, describing it as a high transient natural gas solution for data center applications. It is aimed at sites where the engine must accept step load rather than run at a flat setpoint.
Key specifications
| Electrical output, 60 Hz | 3,091 kW |
|---|---|
| Electrical output, 50 Hz | 3,114 kW |
| Rating basis | DIN ISO 3046 continuous at generator terminals, +5% tolerance standard |
| Electrical efficiency, 60 Hz | up to 43.0 % |
| Electrical efficiency, 50 Hz | up to 43.3 % |
| Heat rate (computed) | about 7,935 Btu/kWh LHV |
| Voltage range, 60 Hz | 480 V to 13.8 kV volts |
| Voltage range, 50 Hz | 600 V to 11 kV volts |
| Output delta vs standard J620, 60 Hz | 258 lower kW |
| Published NOx basis | 250 and 500 mg/Nm3 at 5% O2, dry mg/Nm3 |
| NOx converted to US reference | 45.2 and 90.4 ppmvd at 15% O2 |
| Major overhaul interval, Type 6 | up to 60,000 operating hours |
| Start time to full load | seconds |
| Production site | Jenbach, Tyrol, Austria (no North American assembly) location |
Technical summary
Electrical output: 3,091 kW at 60 Hz, DIN ISO 3046 continuous at generator terminals. Electrical output: 3,114 kW at 50 Hz. Electrical efficiency: up to 43.0% at 60 Hz, up to 43.3% at 50 Hz. Heat rate: about 7,935 Btu/kWh LHV, computed as 3,412.14 / 0.430. Voltage: 480 V to 13.8 kV at 60 Hz; 600 V to 11 kV at 50 Hz. Delta against standard J620 at 60 Hz: 258 kW lower output, about 1.8 efficiency points lower. Published NOx basis: 250 and 500 mg/Nm3 at 5% O2, dry. Application stated by INNIO: high transient natural gas solution for data center applications.
Configurations and options
SCR and oxidation catalyst are catalogued INNIO options. INNIO publishes no outlet NOx figure for its SCR option as of 31 August 2026. DOE gives 90-95% NOx reduction for SCR at 0.25 cents/kWh on non-fuel O&M. Hydrogen status, shipping versus announced: INNIO markets Jenbacher engines as Ready for H2, and in April 2026 demonstrated 100% hydrogen operation at 3 MW with the Net Zero Innovation Hub for Data Centers. That was a demonstration, not a shipment. Clarke Energy, an authorised distributor, describes 100% hydrogen as a future conversion whose cost and timeline require individual clarification. No catalogued hydrogen model, commercial availability date or derate figure is published, and this model's own specification block states no hydrogen capability.
Pricing and availability
Comparable secondary-market band: 2000–3150 $ per kW installed. Trend: rising Direction is up, on demand rather than on observed transactions, and no price history exists for this model at all. Factory slots are the scarce good while INNIO works through about 2.6 GW of committed US data center orders. On any future used unit the start counter will matter as much as the hour meter, because cycling duty rather than running hours drives wear here. Lead time, new: INNIO publishes no unit lead time for this model. The factory carries about 2.6 GW of committed US data center orders through 2028, so slot availability rather than build time is the constraint to ask about.. Lead time, used or refurbished: No used J620 Fast Start was listed on the secondary market as of August 2026..
Lifecycle and maintenance
Type 6 platform intervals apply: Clarke Energy, an authorised INNIO distributor, gives up to 60,000 operating hours to major overhaul, and RS Motor describes overhauls at 30,000 and 60,000 hours renewing pistons, main bearings and cylinder liners. Oil filter service falls about every 1,000 to 2,000 hours and intermediate maintenance every 10,000 hours. INNIO publishes no interval specific to the Fast Start. On a cycling machine the start counter matters as much as the hour meter, because thermal cycles rather than running hours drive head and liner stress. DOE gives 92% minimum availability for reciprocating engines as a class.
Thermal and emissions profile
INNIO publishes J620 Fast Start performance against two NOx bases: 250 and 500 mg/Nm3 at 5% O2, dry. Converting with 22.414/46 for NO2 and the oxygen correction 5.9/15.9 gives 45.2 and 90.4 ppmvd at 15% O2. 40 CFR 60 Subpart JJJJ caps lean-burn natural gas engines at or above 500 HP at 1.0 g/HP-hr NOx, which is 82 ppmvd at 15% O2, with CO at 2.0 and VOC at 0.7 g/HP-hr. The low-NOx tune clears that natively at 55% of the limit, while the 500 mg/Nm3 tune sits 10.2% above it and needs SCR. Formaldehyde is excluded from the JJJJ VOC definition and falls under NESHAP RICE Subpart ZZZZ instead. Cycling duty complicates SCR because the catalyst spends part of each start below light-off temperature, which is a permitting conversation as much as a technical one.
Common failure points
- Pistons, liners and main bearings — Rising blow-by and oil consumption as the 30,000 hour intermediate approaches
- Thermal cycling on heads and jacket water — Coolant loss or cracking around heads on a unit with a high start count
- Ignition system, plugs and coils — Misfire on start and efficiency below 43.0%
- Turbocharger — Output short of 3,091 kW or sluggish acceleration to load
- Gas train and fuel quality — Detonation, knock retard and unplanned derate
- SCR catalyst and urea dosing — NOx creeping toward the 82 ppmvd permit ceiling
Inspection checklist
Hours since major overhaul: Type 6 majors land at up to 60,000 operating hours and dominate residual value. Hours since top-end work: the 30,000 hour intermediate renews pistons, main bearings and cylinder liners. Intermediate maintenance log: the 10,000 hour service should appear at every interval without gaps. Oil and oil filter history: service falls due about every 1,000 to 2,000 running hours. Oil analysis trend: pull the last 5 samples for wear metals, viscosity and total base number. Start counter against running hours: a unit with 2,000 starts has a different wear history from one with 200 at identical hours. Compression and blow-by cylinder by cylinder: repeated fast starts load rings and liners harder than steady running. Turbocharger condition: confirm output still reaches the 3,091 kW rating at 60 Hz under a real load test.
Procurement channels
New units go through INNIO Jenbacher North America LLC, Houston, and its authorised distributors Clarke Energy, Enerflex, Northeast Energy Systems and Western Energy Systems. There is no North American assembly. The lead production site is Jenbach, Tyrol, Austria, so every unit sold into a US project is an import, against an order book already carrying about 2.6 GW of committed data center capacity through 2028. Treat freight, customs and tariff exposure as live line items.
Regional notes
Published 60 Hz voltage of 480 V to 13.8 kV is North American switchgear range. All five Jenbacher engine types appear on the North American site with 60 Hz ratings.
