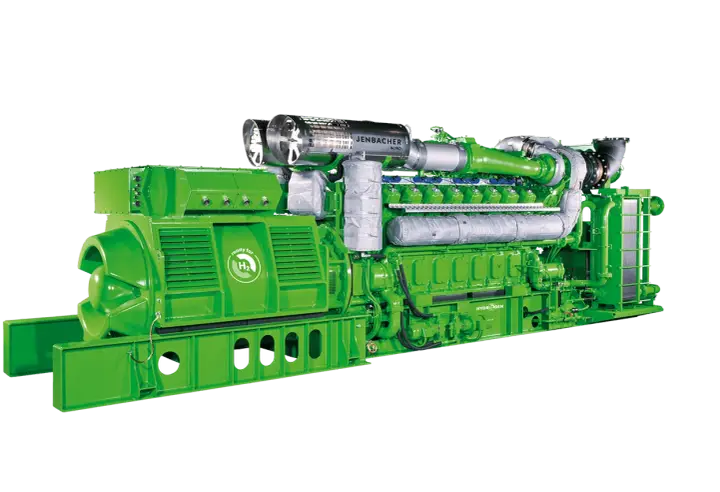

Jenbacher J616
V16 lean-burn engine at 2,779 kW and 45.5%, the entry point to the Type 6 family's 3 MW block
Jenbacher J616 is one of 23 gas engines tracked in the SecondWatt catalogue, each with specifications, lead times and indicative secondary-market pricing.
Jenbacher J616 specs: 2,779 kW at 60 Hz, 45.5% electrical efficiency, 2,906 kW thermal output, NOx basis and the 60,000 hour overhaul interval.
The Jenbacher J616 is a V16 lean-burn gas engine rated up to 2,779 kW at 60 Hz with electrical efficiency up to 45.5%, about 7,499 Btu/kWh on a lower heating value basis. Thermal output reaches 2,906 kW in combined heat and power service, which is more thermal than electrical. INNIO rates it on DIN ISO 3046 continuous at generator terminals with a plus 5% tolerance. That rating basis is not the ISO 8528 standby basis used for diesel standby sets, and the two are not directly comparable. The J616 anchors the low end of the Type 6 family and is well represented on the North American used market. Its 45.5% electrical efficiency is higher than the standard J620's 44.8%, so a buyer is not automatically trading efficiency for the smaller block size. It ships as a bare generator set at 8,300 by 2,200 by 3,000 mm, or containerised across a considerably wider envelope. The Type 6 platform dates to 1989. Neither 2026 gigawatt data center order used this model, both being built on J624 and J620 engines, so its role here is combined heat and power and smaller behind-the-meter projects.
Why it matters
The J616 posts 45.5% electrical efficiency against the standard J620's 44.8%, so the smaller engine has the better heat rate of the two at about 7,499 Btu/kWh. Its thermal output of 2,906 kW exceeds its electrical output, which makes it a stronger combined heat and power proposition than a data center one. For buyers sizing below 3 MW it is the natural Type 6 entry point.
Who buys it
Combined heat and power hosts and district energy operators, particularly where the thermal load is large relative to electrical demand, since thermal output exceeds electrical on this model. Also industrial sites and smaller behind-the-meter projects that need a block below 3 MW. It is a common find on the North American secondary market.
Role in the data center
A secondary role rather than a primary one. Neither 2026 gigawatt order used the J616, both being built on J624 and J620 engines, and at 2,779 kW the block is small for campus scale. It fits smaller behind-the-meter projects and sites where a genuine thermal host makes the 2,906 kW heat output worth capturing.
Key specifications
| Electrical output, 60 Hz | up to 2,779 kW |
|---|---|
| Rating basis | DIN ISO 3046 continuous at generator terminals, +5% tolerance standard |
| Electrical efficiency, 60 Hz | up to 45.5 % |
| Heat rate (computed) | about 7,499 Btu/kWh LHV |
| Thermal output | up to 2,906 kW |
| Cylinder configuration | V16 cylinders |
| Genset dimensions | 8,300 x 2,200 x 3,000 mm |
| Container dimensions | 475-810 x 120-240 x 150-590 inches |
| Published NOx basis | 250 and 500 mg/Nm3 at 5% O2, dry mg/Nm3 |
| NOx converted to US reference | 45.2 and 90.4 ppmvd at 15% O2 |
| NSPS JJJJ NOx ceiling | 1.0 g/HP-hr, or 82 ppmvd at 15% O2 |
| Major overhaul interval | up to 60,000 operating hours |
| Intermediate overhaul | 30,000 operating hours |
| Platform introduced | 1989 year |
| Production site | Jenbach, Tyrol, Austria (no North American assembly) location |
Technical summary
Electrical output: up to 2,779 kW at 60 Hz, DIN ISO 3046 continuous at generator terminals. Electrical efficiency: up to 45.5% at 60 Hz. Heat rate: about 7,499 Btu/kWh LHV, computed as 3,412.14 / 0.455. Thermal output: up to 2,906 kW, which exceeds electrical output. Configuration: V16-cylinder. Genset dimensions: 8,300 x 2,200 x 3,000 mm. Container dimensions: 475-810 x 120-240 x 150-590 inches. Published NOx basis: 250 and 500 mg/Nm3 at 5% O2, dry. Major overhaul: up to 60,000 operating hours (Clarke Energy, distributor figure). Intermediate overhaul: 30,000 operating hours renewing pistons, main bearings and liners. Platform introduced: 1989.
Configurations and options
SCR and oxidation catalyst are catalogued options. INNIO publishes no outlet NOx figure for its SCR option as of 31 August 2026. DOE gives 90-95% NOx reduction for SCR at 0.25 cents/kWh on non-fuel O&M. Hydrogen status, shipping versus announced: INNIO markets Jenbacher engines as Ready for H2, and in April 2026 demonstrated 100% hydrogen operation at 3 MW with the Net Zero Innovation Hub for Data Centers. That was a demonstration, not a shipment. Clarke Energy, an authorised distributor, describes 100% hydrogen as a future conversion whose cost and timeline require individual clarification. No catalogued hydrogen model, commercial availability date or derate figure is published, and this model's own specification block states no hydrogen capability.
Compatibility and dependencies
Pipeline natural gas figures are quoted here and other gases carry different ratings. Because thermal output exceeds electrical output on this model, the value case depends more than usual on having a real heat host.
Pricing and availability
Comparable secondary-market band: 2000–3150 $ per kW installed. Trend: rising Direction is up on category demand rather than on observed transactions. In this category the hour meter sets used price, not the build year: an engine approaching its 60,000 hour major is worth materially less than an older unit fresh out of one. Ask for hours since major and hours since top-end before comparing two asking prices, and confirm whether a quoted 2,000 kW machine is actually a J616. Lead time, new: INNIO publishes no unit lead time. Neither 2026 gigawatt data center order used the J616, so its factory slots are less directly consumed by that backlog than J620 and J624 slots are.. Lead time, used or refurbished: Used J616 machines appear on MachineryTrader at call-for-price as of August 2026; no transaction timing is published..
Lifecycle and maintenance
Clarke Energy, an authorised INNIO distributor, gives Type 6 major overhaul at up to 60,000 operating hours. RS Motor describes overhauls at 30,000 and 60,000 hours renewing pistons, main bearings and cylinder liners, with oil filter service every 1,000 to 2,000 hours and intermediate maintenance every 10,000 hours. Both are distributor or independent figures rather than INNIO-published ones. DOE gives 92% minimum availability for reciprocating engines as a class, with non-fuel O&M between 1.3 and 2.0 cents/kWh across the size range. With the platform in production since 1989, parts and service knowledge for the J616 are deep in North America.
Thermal and emissions profile
INNIO publishes J616 performance against two NOx bases: 250 and 500 mg/Nm3 at 5% O2, dry. Converting with 22.414/46 for NO2 and the oxygen correction 5.9/15.9 gives 45.2 and 90.4 ppmvd at 15% O2. 40 CFR 60 Subpart JJJJ caps lean-burn natural gas engines at or above 500 HP at 1.0 g/HP-hr NOx, which is 82 ppmvd at 15% O2, with CO at 2.0 and VOC at 0.7 g/HP-hr. The low-NOx tune clears that natively at 55% of the limit, while the 500 mg/Nm3 tune sits 10.2% above it and needs SCR. Formaldehyde is excluded from the JJJJ VOC definition and is governed by NESHAP RICE Subpart ZZZZ instead. In a non-attainment area, New Source Review or a LAER determination will require SCR whichever tune is fitted, at about 0.25 cents/kWh on non-fuel O&M per DOE.
Common failure points
- Pistons, liners and main bearings — Rising blow-by and oil consumption as the 30,000 hour intermediate approaches
- Turbocharger — Output short of the 2,779 kW rating, worse at high ambient temperature
- Ignition system, plugs and coils — Misfire and measured efficiency below 45.5%
- Heat exchangers on CHP builds — Thermal output below the 2,906 kW figure
- Gas train and fuel quality — Detonation, knock retard and unplanned derate
- SCR catalyst and urea dosing — NOx creeping toward the 82 ppmvd permit ceiling
Inspection checklist
Hours since major overhaul: Type 6 majors land at up to 60,000 operating hours and set most of the residual value. Hours since top-end work: the 30,000 hour intermediate renews pistons, main bearings and cylinder liners. Intermediate maintenance log: the 10,000 hour service should appear at every interval without gaps. Oil and oil filter history: service falls due about every 1,000 to 2,000 running hours. Oil analysis trend: pull the last 5 samples for wear metals, viscosity and total base number. Compression and blow-by across all 16 cylinders: one weak bank on a V16 hides inside an average. Turbocharger condition: verify the unit still makes its 2,779 kW rating at 60 Hz on a witnessed load test. Aftercooler fouling and jacket water condition: check the coolant circuit for scale and evidence of past overheating.
Procurement channels
New units go through INNIO Jenbacher North America LLC, Houston, and its authorised distributors Clarke Energy, Enerflex, Northeast Energy Systems and Western Energy Systems. Used J616 machines do appear on MachineryTrader, though listed examples were call-for-price as of August 2026. There is no North American assembly. The lead production site is Jenbach, Tyrol, Austria, so every unit sold into a US project is an import, against an order book already carrying about 2.6 GW of committed data center capacity through 2028. Treat freight, customs and tariff exposure as live line items.
Regional notes
Offered at both 50 Hz and 60 Hz; the 60 Hz rating of 2,779 kW is the North American figure quoted here. All five Jenbacher engine types appear on the North American site with 60 Hz ratings. Installed base across the US and Canada is more than 1,000 engines and over 1.7 GW.
