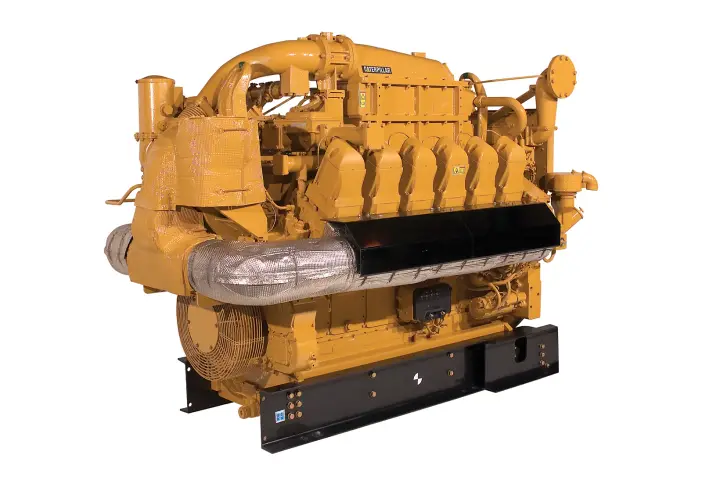

Caterpillar G3512 with FAST RESPONSE
1,000 ekW of natural gas capacity that starts and takes load in as little as 6.5 seconds, EPA certified for non-emergency stationary use
Caterpillar G3512 with FAST RESPONSE is one of 23 gas engines tracked in the SecondWatt catalogue, each with specifications, lead times and indicative secondary-market pricing.
Caterpillar G3512 with FAST RESPONSE: 1,000 ekW standby at 0.8 pf, 60 Hz, load in 6.5 seconds. Specs, pricing evidence and inspection points.
The Cat G3512 with FAST RESPONSE is published at 1,000 ekW at 0.8 power factor, 60 Hz, described on Caterpillar's current product page as a gas standby rating. Two rating bands are published, 700 to 1,000 kW and 525 to 750 kW, and the G3512K variant is published separately at 1,502 to 1,530 kW. Caterpillar states the set can start and accept load in as quickly as 6.5 seconds depending on site conditions. There is a duty label worth resolving before purchase. Caterpillar's 2017 launch release introduced the G3512 at 750 or 1,000 kW for continuous power applications, while the current product page labels the same 1,000 ekW figure a gas standby rating. Confirm on the quotation which duty a given ekW number refers to, because a standby rating and a continuous rating are not interchangeable. The set carries US EPA certification for non-emergency stationary use, meets NFPA 110 Level 1 Type 10 and is UL 2200 listed. It runs natural gas with hydrogen blends up to 5 percent. Caterpillar names data centers first among its target applications, alongside office buildings, retail complexes, schools, government buildings, universities and research facilities.
Why it matters
It brings the fast-response gas argument down to the 0.5 to 1 MW block, where most of the non-hyperscale market actually buys. A 6.5 second start to load on pipeline gas, with EPA non-emergency certification already in hand, removes the two objections that usually push a buyer back to diesel at this size.
Who buys it
Buyers who need sub-megawatt to one-megawatt granularity rather than a 2 MW block, typically campus, healthcare, municipal and light industrial sites. Data center operators building smaller behind-the-meter plants or adding incremental capacity. Load management and hybrid applications, which Caterpillar names directly for this model.
Role in the data center
Behind-the-meter prime and non-emergency standby capacity at 0.5 to 1 MW granularity, for sites too small for a 2 MW block or where incremental capacity is being added to an existing plant. Caterpillar names data centers first among the applications for this model. It is also the model Caterpillar positions for load management and hybrid applications, which is the pairing with battery storage that the larger Monarch deployment uses at scale.
Key specifications
| Gas standby rating | 1,000 ekW at 0.8 pf, 60 Hz |
|---|---|
| Published rating band, upper | 700 to 1,000 kW |
| Published rating band, lower | 525 to 750 kW |
| G3512K variant rating | 1,502 to 1,530 kW |
| Launch rating, 2017 release | 750 or 1,000 kW at 60 Hz, continuous applications |
| Start and accept load | as quickly as 6.5 seconds, site dependent |
| Fuel | Natural gas, hydrogen blend to 5 percent fuel type |
| Emissions certification | US EPA certified for non-emergency stationary use certification |
| Codes and listings | NFPA 110 Level 1 Type 10, UL 2200 listed compliance |
| Frequency | 60 Hz |
| Subpart JJJJ NOx ceiling for this class | 1.0 g/HP-hr or 82 ppmvd at 15 percent O2 regulatory limit |
| Installed project cost, reciprocating gas class | 2,000 to 3,150 USD per kW installed, not equipment price |
Technical summary
Rating: 1,000 ekW at 0.8 power factor, 60 Hz, labelled a gas standby rating on the product page. Published rating bands: 700 to 1,000 kW and 525 to 750 kW. G3512K variant: 1,502 to 1,530 kW. Launch specification, 2017: 750 kW or 1,000 kW at 60 Hz for continuous power applications. Start and accept load: as quickly as 6.5 seconds, site conditions dependent. Fuel: natural gas, hydrogen blend up to 5 percent. Certification: US EPA certified for non-emergency stationary use; meets NSPS non-emergency. Codes: NFPA 110 Level 1 Type 10, UL 2200 listed. Markets: North America including the United States, Canada and Mexico.
Major variations
The G3512K is published separately at 1,502 to 1,530 kW and is a different machine despite the shared root designation. Two rating bands are published for the base G3512, 700 to 1,000 kW and 525 to 750 kW. MWM is Caterpillar. Caterpillar Energy Solutions GmbH of Mannheim was renamed from MWM GmbH on 1 November 2013 and the MWM brand continues. The Cat CG-series is the MWM TCG engine under a Cat badge, and the published numbers prove it rather than merely suggesting it. The CG260 and the MWM TCG 2032 both publish 260/320 mm bore and stroke and match on output and efficiency to the decimal, at 3,333, 4,300 and 4,500 kWe and 43.9, 44.1 and 44.6 percent electrical. The CG170 and the TCG 2020/3020 share 170/195 mm and 53.1, 70.8 and 88.5 L. The CG132B-16 and the TCG 3016 V16 share 132/160 mm and 35 L. For a North American buyer the badge decides the support, not the hardware.
Configurations and options
The FAST RESPONSE designation marks the fast-start package, which Caterpillar sells across a portfolio spanning 175 kW to 2.5 MW. Hydrogen blending is published up to 5 percent on this model. The model sits in the Cat 3500 family by designation, and the G3516 TA sheet describes that family as 170 mm bore by 190 mm stroke, but Caterpillar publishes no G3512-specific bore, stroke or displacement.
Compatibility and dependencies
The G3516 and the 3516B diesel share the Cat 3500 block. Caterpillar publishes 170 mm bore, 190 mm stroke, 69 L and a V16 layout on both. They are not the same engine: the diesel is a 14.0:1 compression-ignition unit with electronic unit injection, while the gas set is spark-ignited with a gas fuel train and a different emissions package. What carries across is parts overlap, shared service tooling and a Cat technician base already fluent in the 3500 platform. What does not carry across is ratings, duty, overhaul intervals or the emissions rule. Diesel sets fall under 40 CFR 60 Subpart IIII for compression ignition; this one falls under Subpart JJJJ for spark ignition.
Pricing and availability
Comparable secondary-market band: 2000–3150 $ per kW installed. Trend: rising Condition in this category is dominated by hours to overhaul, not by model year or cosmetic state. A 40,000-hour engine three years from a major is worth materially less than an older unit fresh out of one, and the resale boards rarely publish hours at all. That is why the used spread is so wide. Ask for hours since major and hours since top-end before any other question, and treat a listing without an hour meter reading as unpriceable. Lead time, new: No Caterpillar-published lead time. Global Power Supply publishes 26 to 39 weeks for natural gas gensets of 70 to 500 kW in 2026 and no band above 500 kW, so the lower G3512 rating band sits just inside the only published figure and the upper band sits outside it. Its planning guidance is to begin procurement 12 to 18 months ahead for large installations. Caterpillar publishes no lead time for any gas genset and Cat dealer pages do not quote one.. Lead time, used or refurbished: Immediate where inventory exists. G3512 units appear regularly in the Texas and western Canada resale channel across 550 kW, 615 kW, 750 kW and 1,000 kW ratings, though almost all are listed at request price..
Lifecycle and maintenance
Caterpillar publishes no MTBF, no overhaul interval and no maintenance schedule in hours for the G3512. The only Cat-published interval anywhere in the gas line is up to 4,000 operating hours on the CG170 series. MWM publishes 48,000 to 80,000 hours to major overhaul on the CG-series engines Caterpillar also owns, and those are different engines under a different brand. Field evidence is thin at this size: a 550 kW G3512 built in 2000 was still transacting in 2026, which says the platform has a long service life without fixing a number to it.
Thermal and emissions profile
Caterpillar publishes no NOx, carbon monoxide or formaldehyde figure for the G3512, only that the set is US EPA certified for non-emergency stationary use and meets NSPS non-emergency requirements. The governing rule is 40 CFR 60 Subpart JJJJ, which caps lean-burn natural gas non-emergency spark-ignition engines at or above 500 HP at 1.0 g/HP-hr NOx, or 82 ppmvd at 15 percent O2. Caterpillar publishes 0.50 and 1.00 g/bhp-hr tunes on other models in its gas range, and the 1.00 figure sits exactly on the federal ceiling with no margin. Selective catalytic reduction becomes a capital line item where a local permit rather than the federal rule governs, typically in a non-attainment area.
Common failure points
- Detonation from low methane number gas — Knock under load, rising exhaust temperature, controller retarding timing
- Spark plugs and ignition coils — Misfire, rough running, rising carbon monoxide, output derate
- Charge-air and aftercooler fouling — Rising charge air temperature, output derate on hot days, fuel consumption creeping up
- Exhaust valve and seat recession — Compression falling on one cylinder, exhaust spread widening, hard starting
- Emissions drift past Subpart JJJJ — Annual stack test returns NOx above 1.0 g/HP-hr or 82 ppmvd at 15 percent O2
- Duty misquotation at purchase — A 1,000 ekW standby rating sold or specified as though it were a continuous rating
Inspection checklist
Hours since major overhaul: a 40,000-hour engine near a major prices well below a fresher unit. Hours since top-end: sibling CG-series engines call head work at 16,000 to 40,000 hours. Duty on the nameplate: Caterpillar labels 1,000 ekW standby while the 2017 release said continuous. Power factor: the 1,000 ekW figure is quoted at 0.8 pf, not 1.0 pf. Rating band on the quotation: 700 to 1,000 kW and 525 to 750 kW are both published for this model. Confirm it is not a G3512K: that variant is published at 1,502 to 1,530 kW, a different machine. Start-to-load timing witnessed: Caterpillar claims as quickly as 6.5 seconds; time it on site. EPA certification paperwork: confirm the non-emergency stationary certificate travels with the unit. Engine manufacture date: the Subpart JJJJ 1.0 g/HP-hr ceiling binds engines built after 1 July 2010.
Procurement channels
New units go through Cat dealers and Cat dealer pages price as Request a Quote. Named dealers holding gas stock include Quinn, Hawthorne, Empire, Western States, Cleveland Brothers, Carter, Stowers, Foley, Holt, Milton, Mustang, Ring Power, Toromont, Wheeler and Boyd CAT. The used channel is quote-driven and deep in Texas and western Canada. DEPCO Power Systems publishes more numbers than anyone else; Industrial Motor Power, Power Generation Enterprises, McKain, Powersafe, Collicutt, Lenmark, NineX, Aaron Equipment and Worldwide Power Products carry inventory but mostly withhold price. Price opacity is the defining feature here.
Regional notes
A 60 Hz North American product. Caterpillar lists the United States, Canada and Mexico among its markets and describes the set as suited to the North American non-emergency emissions market. Caterpillar's own claim for the Cat dealer network is 24/7 service, 99 percent parts availability and a 24-hour response guarantee. That is a Caterpillar claim rather than a measured figure. It is still the commercial argument that matters most in this category, because every large competitor is European or thinner on the ground in North America.
