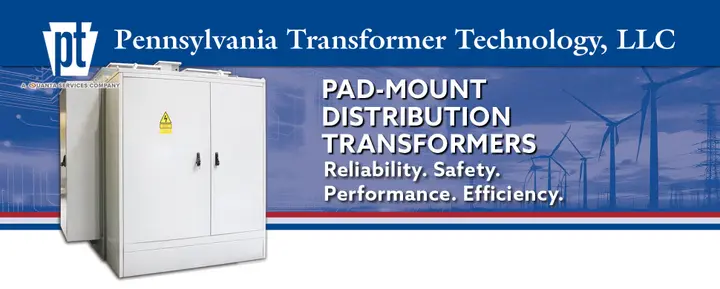

Pennsylvania Transformer Technology Pad-mounted transformers (500-7,500 kVA)
Pennsylvania Transformer pad-mounts to 7,500 kVA and 46 kV from the 1929-founded, Quanta-owned Canonsburg plant
This model is part of SecondWatt’s transformer research catalogue. Specifications and price observations are included where supported by sources. Equipment availability and commercial terms require confirmation.
Pennsylvania Transformer pad-mount dossier: 500-7,500 kVA with 46 kV primaries, Quanta ownership, FR3 options, class pricing comps, inspection points.
Pennsylvania Transformer Technology (PTT), founded 1929 and headquartered in Canonsburg, Pennsylvania, became a Quanta Services company and runs a 1-million-sq-ft, 18-building, 90-acre Canonsburg campus with 765 kV test capability plus a Raeford, North Carolina plant for smaller units with 161 kV test capability, under ISO 9001:2015.
The pad-mount line runs 500-7,500 kVA with primaries to 46 kV, above the 34.5 kV ceiling most pad-mount makers stop at. Secondaries cover 480Y/277, 208Y/120, 4,160 V, and custom windings; construction offers dead-front and live-front compartments, loadbreak switches, Bay-O-Net fusing, pressure relief, electrostatic shield options, and mineral oil or FR3 fill, with ANSI/IEEE compliance stated.
The Quanta connection matters commercially: PTT capacity feeds Quanta's utility construction pipeline, which absorbs output before it reaches open distribution.
Why it matters
A 46 kV pad-mount primary eliminates an intermediate transformation at campuses served above 34.5 kV, a spec few competitors match. Vertical integration into Quanta signals where the market is going: constructors locking transformer capacity upstream, tightening the open secondary market, with class leads already at 40-65 weeks.
Who buys it
Utilities and EPCs, including Quanta's own construction businesses, take most PTT pad-mount output; industrial and data center buyers specify PTT where 46 kV primaries or electrostatic shields are required. Used-market buyers should expect scarce PTT-badged supply and rely on class pricing when units do appear.
Role in the data center
Campus pad-mount distribution at 2,000-7,500 kVA, including direct 46 kV-primary service where the utility delivers above the 34.5 kV that most pad-mount lines top out at. That capability lets a site skip an intermediate step-down stage and take utility service straight to the hall block.
Key specifications
| kVA range | 500-7,500 kVA |
|---|---|
| Primary ceiling | 46 kV |
| Secondary options | 480Y/277, 208Y/120, 4160 V, custom |
| Protection | loadbreak switches, Bay-O-Net fusing |
| Fluid options | mineral oil or FR3 |
| Canonsburg campus | 1M sq ft / 18 buildings / 90 acres / 765 kV test |
| Raeford NC plant | 56,000 sq ft / 161 kV test |
| Ownership | Quanta Services company |
| Class design standard | IEEE C57.12.34 |
| Compartment styles | dead-front or live-front |
| Shielding option | electrostatic shield |
| Pressure relief | pressure relief device |
| Founded | 1929 |
| Quality certification | ISO 9001:2015 |
Technical summary
Range: 500-7,500 kVA. Primary: up to 46 kV. Secondaries: 480Y/277, 208Y/120, 4,160 V, custom. Compartments: dead-front or live-front. Protection: loadbreak switches, Bay-O-Net fusing, pressure relief. Options: electrostatic shield, FR3 fill. Compliance: ANSI/IEEE stated; class standard IEEE C57.12.34. Plants: Canonsburg PA (765 kV test), Raeford NC (161 kV test). Founded 1929; Quanta Services company; ISO 9001:2015.
Major variations
Compartment style, fluid and shielding are the three axes. Dead-front or live-front changes the switching procedure; mineral oil or FR3 changes the fire posture and the insurer's view; an electrostatic shield is specified for harmonic-sensitive loads. Secondary voltages cover 480Y/277, 208Y/120 and 4,160 V as published options with custom windings beyond that. The 46 kV primary capability defines the high end of the line and is the reason to quote PTT where the utility delivers above 34.5 kV and a standard pad-mount would not reach.
Configurations and options
The line runs 500-7,500 kVA with primaries to 46 kV, above the 34.5 kV ceiling most pad-mount makers stop at, and secondaries of 480Y/277, 208Y/120, 4,160 V or custom windings. Compartments are dead-front or live-front. Protection options are loadbreak switches, Bay-O-Net fusing and pressure relief. The two options that most change the commercial case are an electrostatic shield, specified for harmonic-sensitive or noise-sensitive secondary loads, and the fluid, mineral oil or FR3 natural ester. ANSI and IEEE compliance is stated on the pad-mount page without specific BIL values as of August 2026, so BIL comes off the order data sheet and is the first number to confirm on a resale nameplate alongside impedance and the tap arrangement.
Compatibility and dependencies
The interface is the standard pad-mount one: dead-front separable connectors or live-front bushings, a loadbreak switch where the unit has to sectionalize on a loop, and Bay-O-Net fusing that has to coordinate with the upstream feeder protection rather than duplicate it. The 46 kV primary capability is the reason to quote this line, because it lets a site take utility service above 34.5 kV without an intermediate step-down stage; it also means the arrester scheme and the BIL have to be checked at the higher class. Impedance has to match the interrupting duty of the switchboard downstream. The electrostatic shield is specified where the secondary feeds harmonic-rich or noise-sensitive equipment. FR3 against mineral oil changes fire separation and moves the dissolved gas baseline. The unit needs a pad, conduit stub-ups, secondary terminations and grounding to the utility's standard.
Pricing and availability
Comparable secondary-market band: 4950–104000 $ per unit. Trend: rising Electrical Trader's price history, published 2026-04-01, puts power transformer prices up 77% between 2019 and 2026, with distribution classes at the top of a 45-95% spread, on copper up roughly 70% and grain-oriented electrical steel up 80-100% from 2020 to 2025, together 50-55% of production cost. Annual increases have eased from 34.58% in 2022 to 8-10% in 2025, with 3-5% forecast for 2026. Terrapin Construction Group put pad-mount lead times at 0-5 MVA at 40-65 weeks on 2026-06-10. Lead time, new: 40-65 weeks (pad-mount class); PTT-specific figures unpublished. Lead time, used or refurbished: 1-8 weeks (class channel). Warranty, used: 3-year typical from major US rebuilders.
Lifecycle and maintenance
Liquid-filled transformers routinely serve 30-40 years with annual oil screening, DGA on a 1-2 year cadence (or continuous online monitoring on critical units), and gasket or bushing service as tests dictate. Major US rebuilders remanufacture units to like-new condition with warranties up to 3 years (T&R Electric, Sunbelt Solomon), and reconditioned stock ships in days against 65-210 week new-build queues. Remaining paper life, estimated by furan testing, governs end-of-life valuation.
Thermal and emissions profile
Transformers produce no combustion emissions; the regulatory profile is efficiency and fluid. US distribution-class units fall under DOE 10 CFR 431 Subpart K efficiency standards, amended in 2024 with compliance from 2029 requiring 10-30% lower losses than 2016 levels. Fluid choice drives fire and environmental posture: mineral oil versus FR3 natural ester with a 360 C fire point and ready biodegradability. Legacy units require PCB screening, with clean units documented below 2 ppm.
Common failure points
- Bushings — Moisture ingress and partial discharge leading to flashover or tank rupture
- Gaskets and seals — Oil seepage at bushings, valves, and radiator headers
- Tap changer — Contact wear and mechanism faults; leading maintenance component in fleet surveys
- Winding insulation — Dielectric failure, the most common failure mode in CIGRE TB 642 data
- Tank corrosion — Base and cabinet rust on pad-mounted units
- Moisture in oil — Reduced dielectric strength and accelerated paper aging
Inspection checklist
Oil quality: dielectric breakdown, moisture, and acidity tests; verify PCB content documented below 2 ppm on older units. DGA: dissolved gas analysis per IEEE C57.104; investigate any combustible-gas trend rise between 2 consecutive samples. Insulation resistance: megger HV/LV/ground; polarization index of 2.0 or higher passes. Turns ratio: TTR on all tap positions; deviation beyond 0.5% from nameplate fails. Winding resistance: verify three-phase balance within 2% between phases. Bushings and wells: inspect for cracks, tracking, and oil weep; replace suspect bushing wells before energization. Gaskets and seals: inspect bushings, valves, and radiator headers; oil seepage is the top pad-mount defect. Tank and cabinet: corrosion survey at base and sills; enclosure integrity per IEEE C57.12.28 class requirements.
Procurement channels
Direct and Quanta-affiliated channels for new units, quoted per project with no published list pricing. No PTT-badged unit carried an open price in Surplus Record's pad-mount category in August 2026. Buyers pricing the class use the eight-point pad-mount benchmark of 4,950-104,000 USD across 150-3,250 kVA, and rebuilders supply reconditioned equivalents with warranties up to three years.
Regional notes
This is a North American 60 Hz product built to the IEEE C57.12.34 pad-mount class standard at Canonsburg, Pennsylvania, which tests to 765 kV, and Raeford, North Carolina, which tests to 161 kV. US units in scope fall under the DOE distribution transformer rules at 10 CFR 431 Subpart K, amended by the final rule published 2024-04-22 with a 2029 compliance date. Domestic manufacture avoids the import side of the Section 232 50% derivative tariffs effective 2025-08-18. Quanta Services ownership matters to availability rather than to specification, because plant capacity feeds Quanta's own utility construction pipeline.
