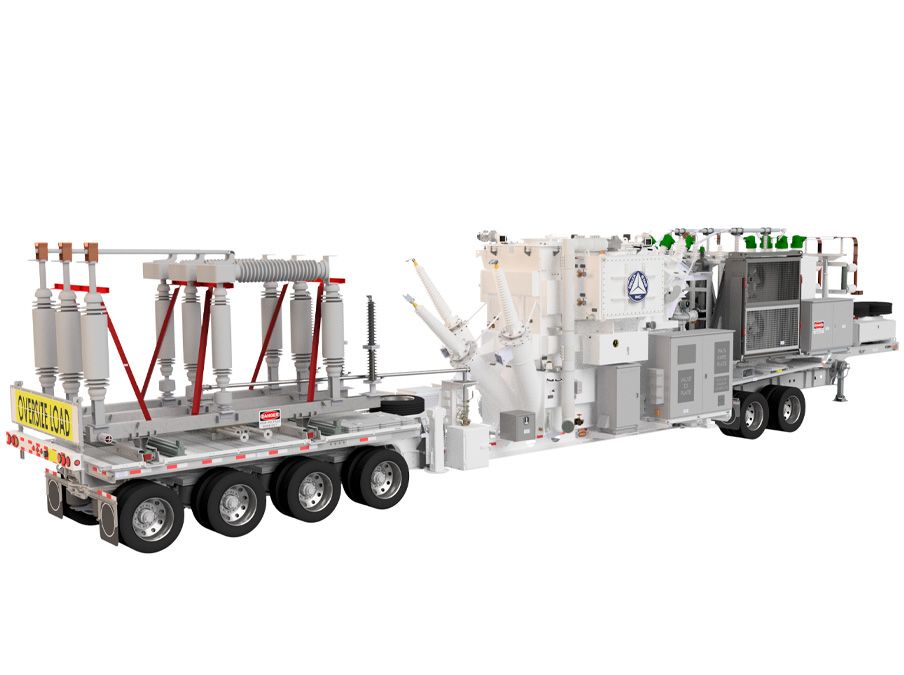

Delta Star Mobile substations (to 133 MVA / 345 kV)
Delta Star mobile substations to 133 MVA and 345 kV, the US-built fleet behind most North American mobiles
This model is part of SecondWatt’s transformer research catalogue. Specifications and price observations are included where supported by sources. Equipment availability and commercial terms require confirmation.
Delta Star mobile substation dossier: US-built to 133 MVA and 345 kV, 800+ unit fleet, remanufacturing channel, deployment roles, inspection points.
Delta Star traces to 1908 in Chicago as the Delta-Star Electric Company and has been employee-owned through an ESOP since its 1988 separation from H.K. Porter, with plants in Lynchburg, Virginia, San Carlos, California, and Saint-Jean-sur-Richelieu, Quebec. The company describes itself as the largest American-owned medium transformer manufacturer and the leading North American builder of mobile transformers, and states that more than 75% of the mobiles used in the North American market are its designs, with 800-plus units deployed and 850-plus employees. Those are the company's own figures.
The published ratings are higher than the class is often credited with. Mobile substations reach 133 MVA at 13.2-345 kV, portable substations reach 100 MVA at 15-345 kV, and mobile voltage regulators run 7 MVA at 5-69 kV. Auxiliary trailers cover 135 kV-class circuit switchers, 138 kV-class breakers and sub-230 kV low-voltage breakers. Units are delivered fully assembled and are built, in the company's words, to withstand 30-plus years of continuous use. IEEE standard citations, cooling class and BIL are not printed on the public product page.
No Delta Star mobile was listed with an open asking price in August 2026. The class moves through rental and dealer channels, with Belyea offering a 40 MVA mobile substation for rent, and through Delta Star's own mobile remanufacturing program, which is itself evidence of an active second-life market. Capacity is expanding: a 30.2 million USD, 149-job Lynchburg addition was announced in 2023 and a further Lynchburg expansion in April 2025.
Why it matters
Mobile substations are the only quick-deploy answer to transformer lead times that now reach 4 years, and Delta Star is the domestic incumbent with claimed 75% share of the installed NA mobile base. For campuses waiting on interconnection, a 133 MVA / 345 kV mobile covers full intake duty, and US-built means no Section 232 tariff exposure on the asset.
Who buys it
Utilities buy or rent mobiles for storm restoration, planned outages, and substation rebuilds; data center developers bridge interconnection while permanent transformers sit in 100-150+ week queues; mines and events take temporary service. The remanufacturing channel lets fleet owners recycle 20-year-old mobiles instead of joining new-build queues.
Role in the data center
Bridge intake substation carrying campus load between energization and delivery of the permanent yard transformers, or emergency spare capacity after a transformer failure. It is rented or bought against a schedule rather than a budget: a mobile deploys in days where the fixed unit it stands in for quotes 85-110 weeks at 25-50 MVA.
Key specifications
| Mobile substation ceiling | 133 MVA / 13.2-345 kV |
|---|---|
| Portable substation ceiling | 100 MVA / 15-345 kV |
| Mobile regulators | 7 MVA / 5-69 kV |
| Auxiliary trailers | 135 kV switcher / 138 kV breaker / <230 kV LV breaker |
| Design life claim | 30+ years continuous use |
| Deployed fleet | 800+ units |
| NA mobile share claim | >75 % |
| Lynchburg expansion | 30.2M USD / 149 jobs / +80,000 sq ft |
| Employees | 850+ |
| Founded | 1908, Chicago, as Delta-Star Electric Company |
| Ownership | employee-owned ESOP since the 1988 separation from H.K. Porter |
| Plants | Lynchburg VA, San Carlos CA, Saint-Jean-sur-Richelieu QC |
| Second-life channel | factory mobile remanufacturing to current specification |
| 2025 expansion | further Lynchburg expansion announced April 2025 |
Technical summary
Mobile substations: up to 133 MVA, 13.2-345 kV. Portable substations: up to 100 MVA, 15-345 kV. Mobile voltage regulators: 7 MVA, 5-69 kV. Auxiliary trailers: 135 kV circuit switcher, 138 kV breaker, <230 kV LV breaker. Delivery: fully assembled. Design life: built for 30+ years of continuous use. Fleet: 800+ mobile units deployed; 75% NA share claim. Plants: Lynchburg VA, San Carlos CA, Quebec; founded 1908, ESOP since 1988.
Major variations
Five builds share the trailer platform: mobile substations combining transformer, switchgear and protection on one or more trailers; transformer-only mobiles; portable skid substations; mobile voltage regulators; and auxiliary breaker and circuit-switcher trailers. Rating separates them more than construction does, with mobiles to 133 MVA and portables to 100 MVA. Remanufacturing is the sixth path: Delta Star converts aged mobiles to current specification in its own shops, which is the only structured second-life channel in this class.
Configurations and options
Five builds share the trailer platform and the choice between them drives both price and delivery: mobile substations to 133 MVA at 13.2-345 kV, portable substations to 100 MVA at 15-345 kV, transformer-only mobiles, mobile voltage regulators at 7 MVA and 5-69 kV, and auxiliary trailers covering a 135 kV-class circuit switcher, a 138 kV-class breaker and a low-voltage breaker below 230 kV. Rating separates the builds more than construction does. Units are delivered fully assembled and ready to install, and Delta Star states a design life above 30 years of continuous use. Factory remanufacture to current specification is the sixth path and the only structured second-life route in this class. BIL, cooling class and IEEE citations do not appear on the public product page as of September 2026, so those come off the unit data sheet.
Compatibility and dependencies
A mobile earns its price by landing on an existing yard in days, which makes the interface questions the whole purchase. Read the trailer's high-voltage and low-voltage termination arrangement, the primary and secondary voltages and connections, the impedance against the interrupting duty of the breakers it will feed, and the BIL against the arrester scheme. The protection and control package has to be one the operator's scheme will accept, and the unit needs a grounding-grid connection, level ground or a pad, and station service for cooling and controls. Auxiliary breaker and circuit-switcher trailers are ordered separately where the yard cannot supply that switching. Because every deployment is a transport event, IEEE C57.150-2023 applies at 10 MVA and above at each relocation, and road-legal weight, height and route survey have to be settled before the unit moves.
Pricing and availability
Trend: rising No mobile substation price history is published, so what follows describes the fixed transformers a mobile stands in for. Electrical Trader's price history, published 2026-04-01, puts power transformer prices up 77% between 2019 and 2026 and generator step-up units up 45% since 2019, on copper up roughly 70% and grain-oriented electrical steel up 80-100% from 2020 to 2025. Terrapin Construction Group had substation units at 65-110 weeks and GSUs at 100-150+ weeks on 2026-06-10, and PwC via pv magazine USA on 2026-05-11 put high-capacity units at up to four years. That queue is what creates demand for mobile capacity. Lead time, new: Engineered to order; quoted per project. Lead time, used or refurbished: 2-12 weeks. Warranty, used: 3-year typical from major US rebuilders.
Lifecycle and maintenance
Liquid-filled transformers routinely serve 30-40 years with annual oil screening, DGA on a 1-2 year cadence (or continuous online monitoring on critical units), and gasket or bushing service as tests dictate. Major US rebuilders remanufacture units to like-new condition with warranties up to 3 years (T&R Electric, Sunbelt Solomon), and reconditioned stock ships in days against 65-210 week new-build queues. Remaining paper life, estimated by furan testing, governs end-of-life valuation.
Thermal and emissions profile
Transformers produce no combustion emissions; the regulatory profile is efficiency and fluid. US distribution-class units fall under DOE 10 CFR 431 Subpart K efficiency standards, amended in 2024 with compliance from 2029 requiring 10-30% lower losses than 2016 levels. Fluid choice drives fire and environmental posture: mineral oil versus FR3 natural ester with a 360 C fire point and ready biodegradability. Legacy units require PCB screening, with clean units documented below 2 ppm.
Common failure points
- Windings — Dielectric failure; windings dominate major-failure statistics in CIGRE TB 642
- Bushings — Failure share rises with voltage class; OIP bushing faults can rupture tanks
- OLTC — Contact and mechanism wear; prominent failure source on substation units
- Winding deformation — Through-fault or transport damage shifting SFRA signature
- Cooling system — Pump, fan, and radiator degradation derating the unit
- Moisture and paper aging — Furans in oil and reduced degree of polymerization
Inspection checklist
DGA: dissolved gas analysis per IEEE C57.104; combustible-gas trend rise between 2 samples triggers investigation. Oil quality: dielectric breakdown, moisture, acidity, and furan tests; degree of polymerization below 200 marks end of paper life. Insulation resistance: megger HV/LV/ground; polarization index of 2.0 or higher passes. Power factor: insulation power factor testing; values above 1.0% on oil-filled windings warrant investigation. Turns ratio: TTR on all taps; deviation beyond 0.5% from nameplate fails. Winding resistance: three-phase balance within 2% between phases. Bushings: capacitance and power factor test; bushing failure share rises with voltage class per CIGRE TB 642. OLTC: inspect on-load tap changer diverter and selector; OLTCs are a leading failure component in CIGRE TB 642 fleet surveys.
Procurement channels
Direct from Delta Star for new units and for remanufactured mobiles from its own program. Rental is the other route, through operators such as Belyea, whose 40 MVA mobile substation was offered for rent in August 2026. Machinio and Savona list mobile substations without published prices, so the class is quoted rather than shopped. Utility mutual-aid pools hold additional units that never reach a public listing.
Regional notes
Delta Star builds for the North American 60 Hz ANSI and IEEE market from Lynchburg, Virginia, San Carlos, California and Saint-Jean-sur-Richelieu, Quebec, with the Quebec plant covering Canadian supply. The published pages state ratings and design life but do not cite IEEE standards, cooling class or BIL as of September 2026. Road transport permitting is set by each state and province the unit crosses, so a mobile bought for one service territory can face a different permit and route survey in the next.
