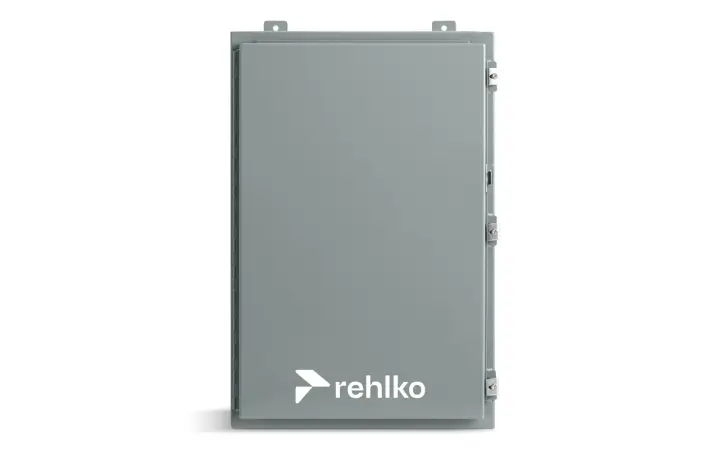

Kohler KCS Series standard open transition transfer switch, 30-4000 A
Manufacturer: Kohler
The one line in this category whose nameplate decodes itself, from a published position-by-position order key
This model is part of SecondWatt’s transfer switche research catalogue. Specifications and price observations are included where supported by sources. Equipment availability and commercial terms require confirmation.
Kohler KCS Series dossier: 30-4000 A ratings, the published order code that decodes any nameplate, MPAC controllers, and secondary market guidance.
KCS is the standard open transition member of Kohler's any-breaker-rated industrial transfer switch family, alongside KCP for programmed transition and KCC for closed transition. It spans 30 to 4000 A at 208 to 600 VAC, 50 or 60 Hz, in two, three or four pole configurations with solid, switched or overlapping neutral arrangements. Withstand and closing ratings run 10 kA to 200 kA RMS symmetrical by model, ampere rating and upstream coordination, listed under UL 1008 files E58962 and E86894.
The reason this line matters out of proportion to its market share is the published order code. Kohler's brochure works a full example, KBP-DMVA-0150S, position by position: family, mechanism, transition, controller, voltage class, poles and wires, enclosure, ampere rating and connection. That key decodes KCS, KCP, KCC, KBS, KBP and KBC without any help from a seller, which makes a used Kohler nameplate the most legible artefact in the whole category.
Two identity facts matter on any listing. Kohler Energy separated from Kohler Co. under Platinum Equity majority ownership in May 2024 and rebranded to Rehlko on 17 September 2024, while the KCS designation itself did not change. And the older nameplates a buyer will actually meet, the K-prefix codes from the 1990s and the GLS, ZCS, ZCB, KCT and KZATS strings that fill dealer listings, do not decode with the current key at all.
Why it matters
A published order key changes what a used listing is worth. On every other line in this category a buyer must chase a submittal drawing to learn poles, enclosure and controller; on a KCS nameplate those are readable in nine positions. That is the clearest argument in this category for treating manufacturer documentation quality as a component of residual value.
Who buys it
Facilities standardised on Kohler generator sets, plus dealers and end users who value the self-describing model code when buying sight-unseen. Rehlko announced a Wisconsin data center power systems assembly facility on 1 June 2026 and 1.8 GW of backup generator purchase agreements inside 60 days, so the installed base feeding this line is expanding into data center backup duty.
Role in the data center
Utility-to-generator transfer for house and support loads, with the KBS, KBP and KBC bypass models carrying the critical bus duty. The MPAC 1500 three-source capability suits sites with two utility feeds plus a generator.
Key specifications
| Ampere range | 30 to 4000 A |
|---|---|
| Voltage and frequency | 208 to 600 VAC at 50 or 60 Hz |
| Poles | 2, 3 or 4 with solid, switched or overlapping neutral |
| Open transition transfer time | under 100 (6 cycles at 60 Hz) ms |
| Withstand and closing rating | 10 to 200 RMS symmetrical kA |
| UL 1008 files | E58962 automatic, E86894 non-automatic |
| Enclosures | NEMA Type 1, 12, 3R, 4, 4X |
| Controllers | Decision-Maker MPAC 1200 and MPAC 1500 |
| Communications | Modbus RTU over RS-485 standard; Ethernet standard on MPAC 1500 |
| Smallest frame | 30-200 A at 791 mm H x 450 mm W and 28-31 kg |
| Largest frame | 4000 A at 2,311 mm H x 1,524 mm W and 975-1,056 kg |
| Operating temperature | minus 20 to 70 degrees C |
| Order code positions | 9 positions covering family, mechanism, transition, controller, voltage, poles, enclosure, amperes and connection |
| Seismic certification | IBC and OSHPD available as an option; no preapproval number published |
Technical summary
Ampere ratings: KCS 30-4000 A, with KCP and KCC from 150 A. Voltage and frequency: 208 to 600 VAC at 50 or 60 Hz. Poles: 2, 3 or 4 pole with solid, switched or overlapping neutral arrangements. Transition: KCS open at under 100 ms (6 cycles at 60 Hz); KCP programmed with timed centre-off; KCC closed. Withstand and closing rating: 10 kA to 200 kA RMS symmetrical by model, ampere rating and coordination. Listing: UL 1008, file E58962 for automatic and E86894 for non-automatic switches. Enclosures: NEMA Type 1, 12, 3R, 4 and 4X. Controllers: Decision-Maker MPAC 1200 and MPAC 1500, with MPAC 750 on lower-tier lines. Communications: Modbus RTU over RS-485 standard; Ethernet and Modbus TCP standard on MPAC 1500. Dimensions: 30-200 A at 31 by 18 in and 62-68 lb; 4000 A at 91 by 60 in and 2,149-2,328 lb. Operating temperature: minus 20 to 70 degrees C.
Major variations
Six model codes come off one key: KCS, KCP and KCC on the standard any-breaker-rated mechanism, and KBS, KBP and KBC on the bypass-isolation mechanism at 150 to 4000 A with MPAC 1500 as standard. A parallel specific-breaker-rated economy tier runs KSS and KSP at 40 to 1000 A, and a service entrance oriented KSSB model exists separately.
Configurations and options
The common industrial build is a three-pole or four-pole open transition switch with the MPAC 1200 controller in a NEMA 1 enclosure. Stepping to MPAC 1500 adds current-based load control with a current sensing kit, standard Ethernet and three-source system capability. Enclosure options run Type 1, 12, 3R, 4 and 4X.
Compatibility and dependencies
Any-breaker-rated and specific-breaker-rated mechanisms are different products: KCS carries the any-breaker rating while the KSS and KSP tier does not, and substituting one for the other changes the upstream coordination requirement. Load control on MPAC 1500 needs a current sensing kit that a used unit may not include.
Pricing and availability
Comparable secondary-market band: 2.44–12 $ per ampere. Trend: rising No price series exists. Five priced KCS observations cluster oddly: a 200 A new open-box unit at 2,050 USD (10.25 USD per ampere) against one 800 A part number at a single reseller in four condition tiers from 1,855 USD new down to 1,113 USD refurbished (2.32 down to 1.39 USD per ampere). The brand-level set of 24 observations spanning 2.44 to 12.00 USD per ampere is the better guide until more KCS-coded units trade publicly. Lead time, new: 24-40 weeks (category benchmark). Lead time, used or refurbished: Days to 4 weeks from dealer stock.
Lifecycle and maintenance
Manufacturers publish maintenance intervals for this equipment rather than a service life. The pattern across ASCO, Cummins and Kohler literature is consistent: a monthly electrical transfer test, an annual preventive visit covering enclosure cleaning, contact inspection and lug retorquing, and a lithium control battery replaced every two years on the lines that carry one. None of ASCO, Cummins or Kohler publishes a mechanical or electrical endurance figure in operations, and ASCO's own manuals state only that the non-replaceable main contacts are designed to last the life of the switch. That absence is why a used unit is priced on evidence of exercise and on controller availability rather than on a cycle count. Arc flash incident energy is calculated under IEEE 1584-2018 and is installation-specific, so NFPA 70E requires an electrically safe work condition before the enclosure is opened.
Thermal and emissions profile
A transfer switch produces no emissions. It is the device that decides when an emitting machine runs, so the environmental accounting belongs to the generator it starts and to the hours that generator accumulates meeting the monthly exercise obligations in NFPA 110. Two facts do belong to the switch itself. Low-voltage transfer equipment is air-insulated, so sulphur hexafluoride is not part of this product class and should never be claimed as a differentiator. The end-of-life recovery case is copper, silver-alloy contacts and a steel enclosure, and the working exposure is arc flash, calculated under IEEE 1584-2018 and managed through the NFPA 70E process.
Common failure points
- Main contacts — Arc erosion pits and can weld the contacts, so the switch fails to transfer or fails to break
- Controller board — Power supply instability or logic fault stops the switch communicating with the generator control
- Voltage sensing drift — Pickup and dropout thresholds drift, so the switch does not register a real source loss
- Actuator and springs — Solenoid or linear actuator failure, capacitor failure or spring fatigue leaves the switch mid-travel
- Terminations — Vibration and moisture loosen lugs and corrode terminals, producing heat at the connection
- Exercise neglect — A switch that has not transferred in months fails on the first real outage
Inspection checklist
Withstand and closing rating: match the nameplate WCR to the actual upstream device, because UL 1008 Edition 9-2022 does not let a specific-breaker rating carry over to a different breaker. Rating convention: establish whether the WCR is specific-breaker or any-breaker time-based, commonly 3-cycle, since the 2 conventions are not interchangeable. Ampere frame and poles: confirm the frame rating and whether the unit is 2, 3 or 4 pole. Neutral configuration: a 3-pole solid-neutral switch dropped into a separately derived system will nuisance-trip ground-fault relays. Transfer test under load: operate normal to alternate and back, the monthly test NFPA 110 requires, and time it against the 10-second Type 10 threshold. Contact condition: inspect for pitting and erosion; discoloration is normal and the manufacturer instruction is to use light emery paper rather than a file.
Procurement channels
Surplus Record carries 27 Kohler transfer switch listings, third behind ASCO and Cummins, and Radwell stocks at least one KCS part number across four condition tiers. Most of the Kohler-brand inventory carries legacy or non-current model codes rather than KCS strings, which is why brand-level pricing and model-level pricing diverge here more than anywhere else in the category.
Regional notes
North American product to UL 1008 with NEMA enclosures. Documentation is split across three live domains after the rebrand: the legacy Kohler resource library still hosts the spec sheets and manuals, an interim Kohler Energy domain carries no public document library, and the current Rehlko commercial site carries the product page.
