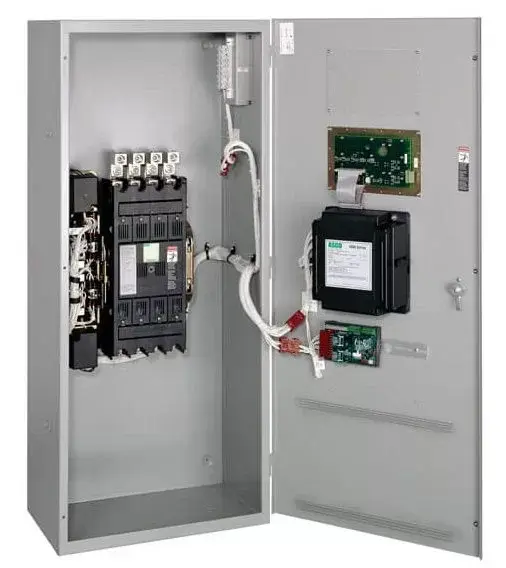

ASCO Power Technologies 4000 Series ATB automatic transfer and bypass-isolation switch, 30-4000 A

ASCO's discontinued bypass-isolation tier, withdrawn in November 2023 and explicitly never replaced

ASCO Power Technologies 4000 Series ATB automatic transfer and bypass-isolation switch, 30-4000 A is one of 7 automatic transfer switches tracked in the SecondWatt catalogue, each with specifications, lead times and indicative secondary-market pricing.

ASCO 4000 Series ATB dossier: bypass-isolation ratings to 4000 A, the November 2023 withdrawal, Group 5 controller support, and used market guidance.

ATB decodes as automatic transfer and bypass-isolation switch, confirmed verbatim in ASCO's own operator manual nomenclature. The 4000 Series ATB was the mid-tier bypass-isolation product between the 300 Series, which offers no bypass at all, and the 7000 Series, which remains in production. It spans 30 to 4000 A up to 600 V, with closed transition available at under 100 milliseconds of source overlap and within 5 electrical degrees. Both 4000 Series products were discontinued on 20 November 2023: the non-bypass ASCOLVATS4000 and the bypass ASCOLVATB4000. The bypass product page states plainly that it has not been replaced, and directs buyers to customer care. After-sales service continues, and the functional successor a specifier will be quoted is the 7000 Series with bypass isolation, though ASCO has published that succession statement only for the older Series 962, not for the 4000. The reason this record still matters is the controller. The 4000 Series shares its Group 5 controller with the still-current 7000 Series, and Schneider Electric's own support documentation lists replacement part K601800-004 for the 4000 against K601800-002 for the 7000. A discontinued power section with a live controller part number is a serviceable asset, and the secondary channel reflects that: new surplus 4000 Series stock was still being listed in August 2026, nearly three years after withdrawal.

Why it matters

A discontinued bypass-isolation line is the clearest test of whether a used market has real structure. Here it does: the controller part number is still catalogued, after-sales service continues, and new surplus inventory persists nearly three years past withdrawal.

Who buys it

Facilities with an installed 4000 Series fleet buying like-for-like replacements or spares, and budget-constrained projects that need bypass isolation without 7000 Series pricing. Because the line is discontinued and unreplaced, every purchase is effectively a decision to extend an existing standard rather than to start one, and that decision should be made against the confirmed availability of the Group 5 controller rather than against the switch itself.

Role in the data center

Critical bus transfer with maintenance-without-outage capability, in installations that standardised on this line before withdrawal. New designs are specified on the 7000 Series bypass product instead.

Technical summary

Ampere ratings: 30 through 4000 A across 14 published frame sizes Voltage: up to 600 VAC with discrete taps from 115 to 600 V Poles: 2-pole and 3-pole confirmed in the ampere tables; 4-pole shown only in product illustrations Transition types: automatic 2-position, closed transition under 100 ms overlap within 5 electrical degrees, delayed transition, and non-automatic Withstand and closing rating: 10 kA at 30 A, 22 kA at 70-150 A, 65 kA at 800-1200 A, 125 kA at 1600-2000 A Listings: UL 1008, CSA 22.2 No. 178-1978 and IEC 60947-6-1 Enclosures: Type 1, 3R, 4, 4X stainless and 12, plus secure double-door variants Controller: Group 5, microprocessor with LCD, keypad programming and 16 selectable operating voltages Communications: optional 72A serial module and 72E connectivity module for PowerQuest monitoring Status: both bypass and non-bypass products discontinued 2023-11-20, after-sales service continuing

Configurations and options

The specification build is a bypass-isolation switch with the Group 5 controller and an electrical operator allowing manual shunting of the primary transfer mechanism. Communications were optional rather than standard, through the 72A serial or 72E connectivity module feeding ASCO's PowerQuest monitoring software.

Compatibility and dependencies

The Group 5 controller is shared with the 7000 Series but carries a different replacement part number, so the two are not interchangeable by assumption. The withstand and closing rating at 4000 A is an any-breaker figure at 100 kA, which is lower than the 125 kA specific-breaker rating at 1600-2000 A and must be coordinated with the actual upstream device.

Pricing and availability

Comparable secondary-market band: 5–25 $ per ampere. Trend: up Lead time, new: Not offered (discontinued 2023-11-20). Lead time, used or refurbished: Days to 4 weeks from dealer stock where available.

Lifecycle and maintenance

A bypass-isolation switch is bought so the automatic section can be serviced or replaced while load stays energised, which changes the maintenance economics rather than the maintenance interval. The monthly transfer test and the annual preventive visit still apply, and NFPA 110 adds a 36-month, four-hour test for Level 1 systems. Value concentrates in the power section and the bypass mechanism, both of which outlive several controller generations, so a controller retrofit is the normal route to extending service life. ASCO, Eaton and Russelectric all publish retrofit or modernisation programmes for the installed base, and the existence of those programmes is what sets a floor under a used power section.

Common failure points

• Bypass interlocks — Solenoid interlocks bind or get defeated, so the bypass sequence cannot be completed safely
• Drawout hardware — Racking rails, guides and lifting hardware go missing between sites, stranding the automatic section
• Bypass contacts — The bypass path is rarely exercised, so its contacts and mechanism age untested
• Main contacts — Arc erosion pits and can weld the automatic section contacts
• Controller board — Controller failure disables automatic transfer while the bypass path stays manual
• Closed transition paralleling — A closed transition unit that overruns its overlap window trips the utility protection

Inspection checklist

Bypass mechanism — confirm a true bypass-isolation type with a drawout automatic section, not a 2-position switch with a separate maintenance bypass panel Isolation position — verify the isolation handle disconnects both primary and control power so the automatic section can be withdrawn Interlocks — solenoid interlocks must prevent out-of-sequence operation, and no handle should ever be forced past 1 of them Bypass under load — demonstrate a live bypass and return, because maintenance without a 100% load interruption is the entire reason the unit costs more Withstand and closing rating — match the WCR to the upstream device under UL 1008 Edition 9-2022, and record whether it is 3-cycle or 30-cycle Cycle rating — a 30-cycle rated switch and a 3-cycle switch are different products and price accordingly Transition type — confirm open, delayed or closed transition, and for closed transition the utility approval and the overlap limit, commonly 100 ms or less Delay settings — record the programmed transition centre-off delay, adjustable across 0 to 600 seconds on several lines Contact condition on both sections — inspect the automatic and the bypass contacts separately, because only the automatic section is exercised monthly Controller — identify the controller group and confirm its replacement part number is still catalogued Ampere frame and poles — confirm the frame rating, 3 or 4 poles, and switched versus solid neutral Service records — request the monthly transfer log and, for Level 1 systems, the 36-month, 4-hour test record Drawout hardware — inventory the racking rails, guides and lifting hardware physically, because they go missing between sites Enclosure and access — a freestanding bypass unit needs front and rear working space; verify NEMA 1 or 3R construction against the room Rigging — freestanding frames at 1,000 A and above run into thousands of pounds and will not pass a standard doorway

Procurement channels

Secondary channel only. New surplus 4000 Series stock was still listed in August 2026, including an 800 A three-phase unit at Depco and a 4000 A bypass unit through Surplus Record. After-sales service and the Group 5 controller replacement part remain available from the manufacturer, which is what makes the discontinued power section worth buying at all.

Regional notes

North American withdrawal dated 2023-11-20. ASCO's own product page records that a UK single-way bypass 4000 Series remained on the ASCO SE and UK site, so regional availability is not uniform and should be checked rather than assumed.
