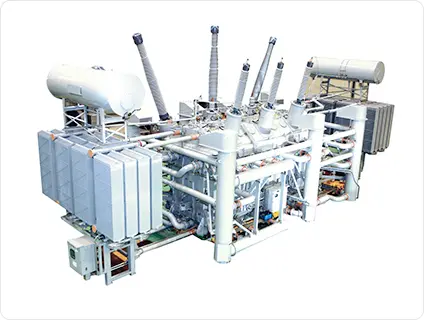

HD Hyundai Electric HV and EHV power transformers, Montgomery, Alabama
HD Hyundai extra-high-voltage power transformers built in Montgomery, Alabama, with 765 kV-class capability due April 2027
This model is part of SecondWatt’s transformer research catalogue. Specifications and price observations are included where supported by sources. Equipment availability and commercial terms require confirmation.
HD Hyundai power transformers: Montgomery, Alabama EHV production, a 0.00% antidumping margin in the 2022-23 review, 765 kV capability by 2027.
HD Hyundai Power Transformers USA in Montgomery, Alabama was established in 2011 as the first US-based transformer plant of a Korean power equipment maker. Plant revenue grew from roughly 100 million USD in 2017 to roughly 400 million USD in 2025. Prior investments total 118 million USD across the 2011, 2018 and 2023 phases (55, 44 and 19 million USD respectively). A 200 million USD expansion broke ground on 2026-03-06, adding a 312,000 sq ft facility, about 200 hires, and 765 kV-class manufacturing and testing by April 2027. The plant produced its 1,000th ultra-high-voltage transformer in August 2026.
Trade posture is the differentiator. In the 2022-23 administrative review of the Korean large power transformer antidumping order, published 2025-04-08, HD Hyundai Electric drew a 0.00% margin while Iljin and LS Electric carried 16.87% and the all-others cash deposit rate was 22.00%. Preliminary results for the 2023-24 review were published 2026-02-10, so a buyer relying on the margin should check the current review rather than the 2025 final. Montgomery-built units are domestic production and do not enter under the order at all, and the US plant reduces exposure to the Section 232 derivative tariffs that took effect 2025-08-18.
HD Hyundai publishes its MVA maxima, BIL and cooling-class tables on the Korean corporate product page rather than in a US datasheet. Secondary supply is thin: one factory-new, never-energized Hyundai 33/44/55 MVA 69 kV unit sat in US trader stock, contact for pricing, and no used energized Hyundai large power transformer was listed for sale.
Why it matters
Montgomery is one of the few US plants adding EHV capacity on a dated schedule: 765 kV capability by April 2027, against 4-year class lead times. The 1,000-unit UHV milestone demonstrates a production base US buyers can qualify today, and the tariff-clean posture removes 16.87-22.00-point cost uncertainty that follows competing Korean imports.
Who buys it
Utilities and transmission owners sourcing EHV units with domestic content, plus data-center-driven interconnect projects. The 0.00% antidumping margin makes Hyundai the lowest-friction Korean-lineage supply, and gray-market buyers watch trader stock for project-cancellation units like the observed 69 kV example.
Role in the data center
Extra-high-voltage interconnect transformer for transmission-served campuses, sitting in the utility yard rather than anywhere inside the building. Domestic manufacture is the procurement argument: on federally touched projects it carries a domestic-content advantage, and on any project it removes the tariff and antidumping variables from the landed cost.
Key specifications
| US plant established | 2011 |
|---|---|
| Expansion investment | 200M USD / 312,000 sq ft |
| 765 kV capability | April 2027 target |
| UHV production milestone | 1,000th unit (Aug 2026) |
| Montgomery revenue | ~100M (2017) to ~400M (2025) USD |
| Antidumping margin | 0.00 % (2022-23 final) |
| Peer margins | 16.87% (Iljin, LS); 22.00% all-others |
| Observed trader unit | 33/44/55 MVA, 69 kV, 2025 build, never energized price on request |
| Prior US investment phases | 55 (2011), 44 (2018), 19 (2023) million USD |
| Expansion hiring | ~200 new hires |
| Expansion timeline | groundbreaking 2026-03-06; completion target April 2027 |
| Antidumping review period | 2022-23 final results, published 2025-04-08 |
| Later review status | 2023-24 preliminary results published 2026-02-10 |
| Section 232 derivative tariff | 50% on non-US steel and aluminum content, effective 2025-08-18 |
Technical summary
Class: extra-high-voltage power transformers. Plant: Montgomery, Alabama, established 2011, the first US transformer plant of a Korean power equipment maker. 765 kV-class manufacturing and testing: target April 2027. Expansion: 200 million USD, 312,000 sq ft, about 200 hires, groundbreaking 2026-03-06. Prior investment phases: 55 million USD (2011), 44 million (2018), 19 million (2023). Milestone: 1,000th ultra-high-voltage transformer produced August 2026. Plant revenue: about 100 million USD (2017) to about 400 million USD (2025). Antidumping margin: 0.00% in the 2022-23 final results published 2025-04-08. Observed trader unit: 33/44/55 MVA, 69 kV wye to 34.5 kV wye, 2025 build.
Major variations
The split that matters is build origin. Montgomery-built units are US-standard, domestically produced and outside both the Korean antidumping order and the import side of Section 232; Korean-built units serve global orders and carry both exposures when they enter the United States. Within the Montgomery output, current production centres on the 230-345 kV utility classes, and the 2027 expansion adds 765 kV-class manufacturing and testing. Duty covers generator step-up, autotransformer and step-down designs; the published catalog tables for MVA, BIL and cooling class sit on the Korean corporate product page.
Configurations and options
Duty covers generator step-up, autotransformer and step-down designs, and current Montgomery output centers on the utility extra-high-voltage classes, with 765 kV-class manufacturing and testing targeted for April 2027 through the 200 million USD, 312,000 sq ft expansion that broke ground on 2026-03-06. The commercially decisive choice is build origin, not any feature: Montgomery-built units are domestic production, while Korean-built units enter the United States under the large power transformer antidumping order and the Section 232 derivative tariffs, and that moves landed cost more than any option on the specification sheet. HD Hyundai publishes its MVA maxima, BIL and cooling-class tables on the Korean corporate product page rather than in a US datasheet as of August 2026, so rating, impedance, tap arrangement and cooling class come off the project data sheet and nameplate.
Compatibility and dependencies
This equipment sits in the utility yard, and the coordination set is the standard transmission one. High-voltage bushings go to the yard bus or a gas-insulated connection and the low-voltage side to bus duct or cable. Impedance has to be checked against the interrupting duty of the breakers downstream, BIL against the arrester scheme, and the winding connection and neutral arrangement against the grounding scheme. A never-energized 33/44/55 MVA unit at 69 kV wye to 34.5 kV wye, built in 2025, sat in US trader stock: on a wye-to-wye unit the grounding and zero-sequence arrangement has to be read off the nameplate before it can drop into an existing scheme. Tap changer control power, cooling-stage station service and IEEE C57.150-2023 transport handling at 10 MVA and above all apply. On federally touched projects the domestic-content documentation is itself a dependency.
Pricing and availability
Trend: rising Electrical Trader's price history, published 2026-04-01, puts power transformer prices up 77% between 2019 and 2026 and generator step-up transformers up 45% since 2019, on copper up roughly 70% and grain-oriented electrical steel up 80-100% from 2020 to 2025. It records Q2 2025 lead times of 128 weeks for power transformers and 144 weeks for GSUs. PwC figures reported by pv magazine USA on 2026-05-11 put high-capacity units at up to four years, with GSU demand up 274% between 2019 and 2025. Lead time, new: Contract-scheduled; class 120 weeks average, 80-210 weeks large. Lead time, used or refurbished: 2-12 weeks. Warranty, used: 3-year typical from major US rebuilders.
Lifecycle and maintenance
Liquid-filled transformers routinely serve 30-40 years with annual oil screening, DGA on a 1-2 year cadence (or continuous online monitoring on critical units), and gasket or bushing service as tests dictate. Major US rebuilders remanufacture units to like-new condition with warranties up to 3 years (T&R Electric, Sunbelt Solomon), and reconditioned stock ships in days against 65-210 week new-build queues. Remaining paper life, estimated by furan testing, governs end-of-life valuation.
Thermal and emissions profile
Transformers produce no combustion emissions; the regulatory profile is efficiency and fluid. US distribution-class units fall under DOE 10 CFR 431 Subpart K efficiency standards, amended in 2024 with compliance from 2029 requiring 10-30% lower losses than 2016 levels. Fluid choice drives fire and environmental posture: mineral oil versus FR3 natural ester with a 360 C fire point and ready biodegradability. Legacy units require PCB screening, with clean units documented below 2 ppm.
Common failure points
- Windings — Dielectric failure; windings dominate major-failure statistics in CIGRE TB 642
- Bushings — Failure share rises with voltage class; OIP bushing faults can rupture tanks
- OLTC — Contact and mechanism wear; prominent failure source on substation units
- Winding deformation — Through-fault or transport damage shifting SFRA signature
- Cooling system — Pump, fan, and radiator degradation derating the unit
- Moisture and paper aging — Furans in oil and reduced degree of polymerization
Inspection checklist
DGA: dissolved gas analysis per IEEE C57.104; combustible-gas trend rise between 2 samples triggers investigation. Oil quality: dielectric breakdown, moisture, acidity, and furan tests; degree of polymerization below 200 marks end of paper life. Insulation resistance: megger HV/LV/ground; polarization index of 2.0 or higher passes. Power factor: insulation power factor testing; values above 1.0% on oil-filled windings warrant investigation. Turns ratio: TTR on all taps; deviation beyond 0.5% from nameplate fails. Winding resistance: three-phase balance within 2% between phases. Bushings: capacitance and power factor test; bushing failure share rises with voltage class per CIGRE TB 642. OLTC: inspect on-load tap changer diverter and selector; OLTCs are a leading failure component in CIGRE TB 642 fleet surveys.
Procurement channels
Direct with HD Hyundai Power Transformers USA for new units, quoted per project. Gray-market supply exists at the margins: Transformer Traders held a factory-new, never-energized 33/44/55 MVA 69 kV unit sourced from a cancelled project, contact for pricing. No used energized Hyundai large power transformer was listed for sale in August 2026, which follows from a US installed base that is recent and utility-held.
Regional notes
Korean-built Hyundai units enter the United States under the large power transformer antidumping order, where HD Hyundai Electric drew a 0.00% margin in the 2022-23 final results published April 2025, and under the Section 232 derivative tariffs of 50% on non-US steel and aluminum content effective 2025-08-18. Montgomery-built units are domestic production and carry neither burden. Preliminary results for the 2023-24 review were published in February 2026, so the applicable rate should be checked against the current review rather than the 2025 final.
