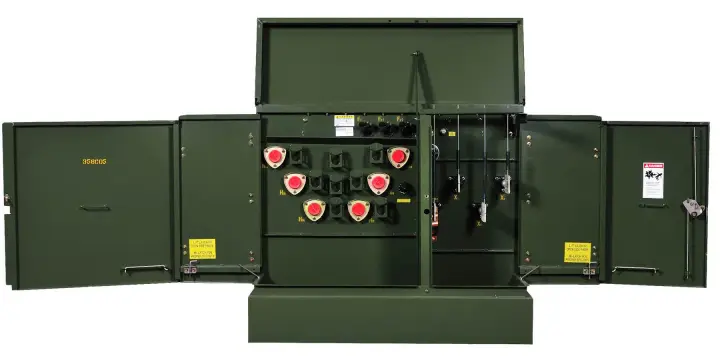

ERMCO Three-phase pad-mounted transformers (30-3,000 kVA)

ERMCO three-phase pad-mounts, co-op-owned volume production from the plant that built its 9-millionth transformer

ERMCO Three-phase pad-mounted transformers (30-3,000 kVA) is one of 32 data center transformers tracked in the SecondWatt catalogue, each with specifications, lead times and indicative secondary-market pricing.

ERMCO three-phase pad-mount dossier: 30-3,000 kVA at 2.4-35 kV, IEEE C57.12.34 and RUS builds, class pricing comps, inspection checklist, failure points.

Who buys it

Electric co-ops are the core channel, followed by municipal utilities, developers, and data center site contractors filling 40-65 week pad-mount gaps from used stock. RUS compliance matters to co-op buyers specifically. Rebuilders absorb ERMCO cores readily because parts commonality across the nine-million-unit fleet simplifies remanufacture.

Role in the data center

Utility-side and campus pad-mount distribution at 300-3,000 kVA, the class most often bottlenecking site energization schedules.

Key specifications

Technical summary

Range: 30-3,000 kVA, three-phase Primary: 2.4-35 kV; secondary through 600 V BIL: 150 kV available at top voltage class Construction: oil-filled, 65 C rise Design standard: IEEE C57.12.34; RUS-compliant Finish: exceeds IEEE coating spec; 160 in-lb impact, 2,000-hr salt spray Bushings: externally clamped Warranty: 2 years Plants: Dyersburg, Greeneville, Bristol TN; Reynosa MX Scale: 9-millionth transformer produced at Dyersburg

Pricing and availability

Comparable secondary-market band: 10–42 $ per kVA. Trend: up Lead time, new: 40-65 weeks (pad-mount class). Lead time, used or refurbished: 1-8 weeks. Warranty, used: 3-year typical from major US rebuilders.

Lifecycle and maintenance

Liquid-filled transformers routinely serve 30-40 years with annual oil screening, DGA on a 1-2 year cadence (or continuous online monitoring on critical units), and gasket or bushing service as tests dictate. Major US rebuilders remanufacture units to like-new condition with warranties up to 3 years (T&R Electric, Sunbelt Solomon), and reconditioned stock ships in days against 65-210 week new-build queues. Remaining paper life, estimated by furan testing, governs end-of-life valuation.

Common failure points

• Bushings — Moisture ingress and partial discharge leading to flashover or tank rupture
• Gaskets and seals — Oil seepage at bushings, valves, and radiator headers
• Tap changer — Contact wear and mechanism faults; leading maintenance component in fleet surveys
• Winding insulation — Dielectric failure, the most common failure mode in CIGRE TB 642 data
• Tank corrosion — Base and cabinet rust on pad-mounted units
• Moisture in oil — Reduced dielectric strength and accelerated paper aging

Inspection checklist

Oil quality — dielectric breakdown, moisture, and acidity tests; verify PCB content documented below 2 ppm on older units DGA — dissolved gas analysis per IEEE C57.104; investigate any combustible-gas trend rise between 2 consecutive samples Insulation resistance — megger HV/LV/ground; polarization index of 2.0 or higher passes Turns ratio — TTR on all tap positions; deviation beyond 0.5% from nameplate fails Winding resistance — verify three-phase balance within 2% between phases Bushings and wells — inspect for cracks, tracking, and oil weep; replace suspect bushing wells before energization Gaskets and seals — inspect bushings, valves, and radiator headers; oil seepage is the top pad-mount defect Tank and cabinet — corrosion survey at base and sills; enclosure integrity per IEEE C57.12.28 class requirements Fusing and switches — inspect Bay-O-Net or current-limiting fuses and loadbreak switch function where fitted Tap changer — exercise the de-energized tap changer through all 5 positions; verify contact condition Nameplate verification — confirm kVA, impedance, BIL, and DOE 10 CFR 431 efficiency vintage against the test report Accessories — verify oil level, temperature, and pressure gauges plus pressure relief device function Fluid identification — confirm mineral oil versus FR3 ester fill matches nameplate; esters carry a 360 C fire point Load test — energize and verify secondary voltage within 5% at each phase under load Records — factory test report, DGA history, and loading history; missing history reprices the unit toward as-is

Procurement channels

Co-op supply agreements and RUS channels for new; Surplus Record for used ERMCO units (price-on-request); rebuilders (Sunbelt Solomon, T&R) for reconditioned equivalents with 3-year warranties.
