Vertiv Geist Monitored rPDU, including VP43301 at 30 A across 36 outlets
Manufacturer: Vertiv
The longest warranty in the category at five years, and the widest new-to-used spread on one model
This model is part of SecondWatt’s pdu research catalogue. Specifications and price observations are included where supported by sources. Equipment availability and commercial terms require confirmation.
Vertiv Geist Monitored rPDU dossier: 30 A across 36 outlets, 1% metering to IEC 62053-21, a 5-year warranty and the widest new-to-used spread here.
Vertiv completed its acquisition of Geist, then a privately held rack PDU manufacturer in Lincoln, Nebraska with more than 250 employees, on 1 February 2018. The Geist rack PDU catalogue divides into three tiers: Basic without monitoring, Monitored for network-connected units reporting power and environmental data, and Switched for units adding outlet control. Monitored splits further into unit-level and outlet-level on selected models, so the tier name alone does not tell a buyer whether per-outlet data is available.
The representative VP43301 is a 0U vertical unit at 200 to 240 V single phase, 30 A on a NEMA L6-30P twistlock, with 36 combination C13 and C19 outlets in banks of six across two breakers. It measures 1683 by 51 by 51 mm, runs to 60 degrees C, carries a scrolling rotatable LED display, supports up to 16 remote sensors, and is UL and cUL listed to 62368-1. Input monitoring is stated against ANSI C12.1 and IEC 62053-21 at 1% accuracy class, which is the middle of the category's six-fold accuracy range.
Two facts favour this line commercially. Vertiv publishes a five-year limited warranty when the unit is registered within 120 days, against three years otherwise, which is the longest standard term in the category. And Vertiv publishes dated, active firmware release notes, with version 6.3.0 issued on 20 December 2024 covering the IMD modules, which is exactly the support signal a used buyer needs in a category where firmware rather than wear ends a unit's life.
Why it matters
The VP4551V shows the widest new-to-used spread observed on a single model anywhere in this category: 2,968 dollars new against 250.95 used, or 123.67 against 10.46 dollars per outlet. That twelve-fold gap on identical hardware is the clearest illustration of how far a used rack PDU can discount against new.
Who buys it
Enterprise and colocation operators standardising on the Vertiv ecosystem, and edge deployments using the Vertiv Intelligence Director aggregation. The used channel is active on this line, with a 60 A VP4551V trading at roughly a tenth of its new distributor price, which makes it one of the better value propositions among refurbished rack PDUs.
Role in the data center
Cabinet power distribution with unit-level or outlet-level monitoring and environmental sensing, in enterprise, colocation and edge deployments aggregated through Vertiv's management layer. Outlet-level and unit-level variants share the tier name, so the model number decides which is fitted.
Key specifications
| Tier structure | Basic, Monitored and Switched, with Monitored split into unit and outlet level |
|---|---|
| VP43301 input | 200 to 240 V single phase at 30 A on NEMA L6-30P |
| VP43301 outlets | 36 combination C13 and C19 in banks of 6 across 2 breakers |
| Line input options | 230 V single phase and 230/400 V three phase at 16 and 32 A |
| Metering accuracy | 1 accuracy class to ANSI C12.1 and IEC 62053-21 % |
| Network protocols | HTTPS, SNMP v1, v2c and v3, LDAP, RADIUS, TACACS+, RSTP, SSH, Syslog |
| Daisy chain limit | 40 units per the datasheet; 50 devices on one IP address per the brochure |
| Environmental sensors | up to 16 remote sensors through an RJ connection |
| Dimensions | 1683 x 51 x 51 mm, 0U vertical |
| Operating temperature | up to 60 degrees C |
| Certifications | UL and cUL listed 62368-1, FCC Part 15 Class A, RoHS |
| Warranty | 5 years if registered within 120 days, 3 years otherwise |
| Firmware currency | version 6.3.0 released 2024-12-20 for the IMD modules |
| Named vulnerability | CVE-2024-6387 reached the IMD-5 module and was patched December 2024 |
Technical summary
Tiers: Basic, Monitored and Switched, with Monitored splitting into unit-level and outlet-level. VP43301 input: 200 to 240 V single phase at 30 A on a NEMA L6-30P twistlock. VP43301 outlets: 36 combination C13 and C19, in banks of 6 across 2 breakers. Line input options: 230 V single phase and 230/400 V three phase at 16 and 32 A. Metering: input monitoring to ANSI C12.1 and IEC 62053-21 at 1% accuracy class. Network: HTTPS, SNMP v1, v2c and v3, LDAP, RADIUS, TACACS+, RSTP, SSH, SMTP, Syslog. Daisy chain: up to 40 units on the VP43301 datasheet; up to 50 devices on one IP address per the brochure. Environmental sensors: up to 16 remote sensors through an RJ connection. Dimensions: 1683 by 51 by 51 mm, 0U vertical; 2U horizontal options exist. Operating temperature: up to 60 degrees C, with high-temperature variants published. Certifications: UL and cUL listed 62368-1, FCC Part 15 Class A, RoHS. Warranty: 5-year limited if registered within 120 days, 3-year standard otherwise.
Major variations
Monitored tier model numbers include VP4551V, VP7811B, VP8830, VP8832, VP8841, VP8865 through VP8868, and the VP433xx and VP463xx families. Vertiv also documents this line under several overlapping names across different documents, including Geist Upgradeable Rack PDU, Vertiv Intelligent Rack PDU and Geist rPDU, plus a universal input variant spanning 120 to 415 V.
Configurations and options
The common build is a 0U vertical unit with combination C13 and C19 outlets on a twistlock inlet, with the intelligent monitoring device module carrying the network and sensor functions. Visible light communication through a mobile application is published as a local commissioning route, and high-temperature variants extend the ambient rating.
Compatibility and dependencies

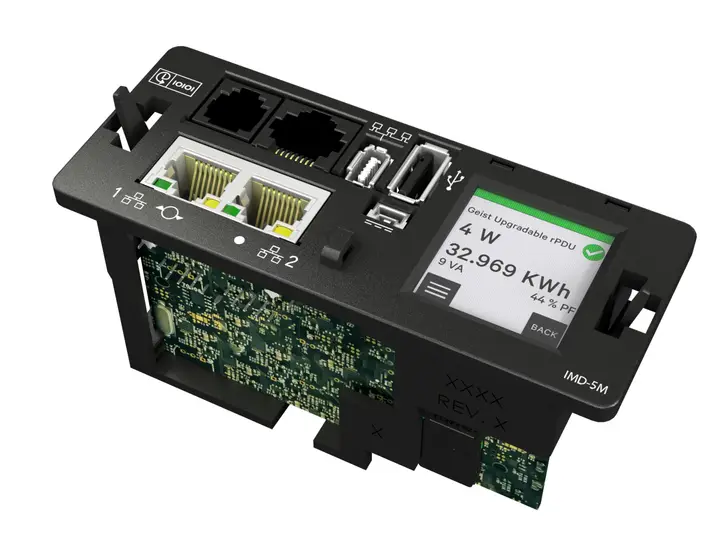

The intelligent monitoring device module determines firmware support, so the module generation matters more than the chassis when assessing a used unit. Two Vertiv documents give different aggregation figures, 40 daisy-chained units against 50 devices on one IP address, and the second figure refers to the Intelligence Director rather than to a simple chain.
Pricing and availability
Published price range: $251 used to $2,968 new per unit. Trend: stable No published price series exists. Three observations frame the spread: a 24-outlet VP7N60AA at 60 A listed new at 2,968 USD or 123.67 per outlet, a 16-outlet PDU1420T at 30 A listed new at 1,242.17 or 77.64, and a 24-outlet VP4551V at 60 A listed used at 250.95 or 10.46. The used VP4551V against its new equivalent is a twelve-fold gap on comparable hardware, the widest observed on one model in this category. Lead time, new: Distributor stock, with some SKUs showing out of stock. Lead time, used or refurbished: Days to 2 weeks through marketplace and refurbished channels.
Lifecycle and maintenance
A rack PDU has almost no wearing parts in the power path, so service life is set by firmware support rather than hardware fatigue. Warranty terms cluster at two to five years: Raritan two extendable to five, Eaton three on the G4 against two on the G3, CyberPower three, and Vertiv five if registered within 120 days. What actually ends a unit's life is the controller: when a manufacturer stops issuing firmware, a networked PDU becomes an unpatchable device on a production network. That is why controller replaceability matters more than any mechanical specification here, and why Eaton publishing an upgrade path from its G3 network card to the G4 module, and Raritan shipping a hot-swappable controller, are the most commercially significant features in this category. Geist IMD-5 firmware 6.3.0 of December 2024 is the patched baseline; earlier controllers carry CVE-2024-6387.
Thermal and emissions profile
A rack PDU has no emissions of its own. Its environmental relevance runs in two directions: what its metering enables, and what happens to the hardware at end of life. Outlet-level metering is the measurement layer under capacity planning, chargeback billing and stranded-capacity recovery, so accuracy class is an efficiency question rather than a feature one. Published accuracy runs from 0.5% on the tightest product to 3% on a mainstream metered unit, and only the tightest tier cites IEC 62053-21 Class 0.5. At end of life the unit is an IT asset rather than electrical infrastructure: extrusion, copper busbar, a controller board and relays. Schneider publishes 843 kg of carbon dioxide equivalent and 53% recyclability for one metered model.
Common failure points
- Firmware obsolescence — An unsupported controller cannot be patched, leaving published vulnerabilities open on a networked device
- Firmware licensing — Network management card firmware sits behind a paid subscription at one major manufacturer since Q3 2023
- Controller or network card failure — The PDU keeps distributing power but disappears from the management system
- Outlet retention wear — Contacts lose retention force and a cord drops out under vibration or during cable work
- Breaker nuisance tripping — A branch breaker trips below nameplate under normal load
- Residual configuration — A used unit arrives carrying the previous owner's accounts, directory settings and network configuration
Inspection checklist
Metering tier: establish which of the 5 rungs the unit actually occupies, because basic, metered inlet, metered by outlet, switched and switched metered by outlet are different products. Metering accuracy: published accuracy spans 0.5% on a Raritan PX4 to 3% on an APC AP8858, a 6-fold difference that decides whether the data can support chargeback billing. Accuracy standard cited: confirm whether the datasheet names IEC 62053-21 and a class, because 1% corresponds to Class 1 and only Class 0.5 is utility grade. Firmware version and support: confirm the unit can still receive firmware, since a networked PDU that cannot be patched is a permanent exposure. Firmware licensing: Schneider moved network management card firmware to paid subscription in Q3 2023, so budget for a licence rather than assuming free updates.
Procurement channels
New stock through IT distribution and retail channels including Tech-America and Best Buy, with some SKUs out of stock. Used and refurbished units appear on marketplace and retail-marketplace channels, including a refurbished VP4551V offered through a third-party seller without a published price. Vertiv publishes no branded warranted-refurbished programme for Geist rPDUs as of August 2026.
Regional notes
North American and EMEA configurations are documented separately, with the North American line on twistlock inlets at 200 to 240 V and the EMEA brochure covering 230 V single phase and 230/400 V three phase. Certifications cover UL and cUL 62368-1 with EN 60950 and EN 55032 cited in the European brochure.
