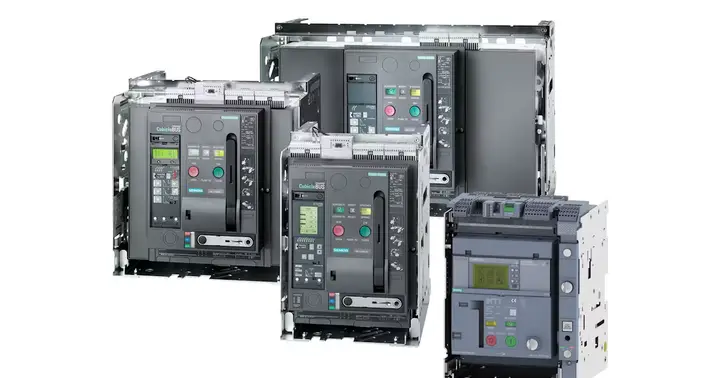

Siemens SENTRON 3WL air circuit breaker (phase-out October 2026)

Siemens SENTRON 3WL air breakers, 630-6,300 A workhorses entering their aftermarket era as production ends

Siemens SENTRON 3WL air circuit breaker (phase-out October 2026) is one of 41 data center switchgear tracked in the SecondWatt catalogue, each with specifications, lead times and indicative secondary-market pricing.

Siemens SENTRON 3WL dossier: 630-6,300 A air breakers priced 5,000-14,999 USD used as October 2026 phase-out lands, retrofit economics, inspection.

SENTRON 3WL is Siemens AG's long-running LV air circuit breaker family, 630-6,300 A in IEC 60947-2 and UL 1066 builds with ETU trip units, and it is the category's live transition story: Siemens has announced phase-out with production ending October 2026 and 3WA as the designated successor and retrofit path. Attribution correction as elsewhere: Siemens AG Smart Infrastructure, not Siemens Energy. The used market is already priced and deepening: a used 3WL1112 1,250 A 4-pole unit at 5,000 USD, a new-surplus 3,200 A electrically-operated unit at 12,500 USD, and a 4,000 A-class WL breaker at 14,999 USD, with trip-unit modules trading separately near 1,250 USD. US-market WL breakers (the ANSI-built siblings from Siemens' Grand Prairie line) share cubicle ecosystems and dealer channels. Every phase-out follows the same arc: spares demand rises as production ends, reconditioners stock up, and prices firm until the retrofit wave (3WA conversion kits) caps them. The 22%-off-curve NETA finding for aged LV breakers makes injection testing the non-negotiable acceptance step on every used 3WL.

Why it matters

An announced end date converts a commodity breaker into a scarcity asset on a schedule: October 2026 is the category's clearest tradable catalyst. The observed 5,000-14,999 USD band will move as that date passes, and SecondWatt's index can document the move in real time, exactly the pricing intelligence the platform exists to publish.

Who buys it

Owners of 3WL-equipped switchboards, a fleet spanning two decades of data centers, hospitals, and plants, buy spares ahead of the production stop; reconditioners build inventory; retrofit-averse operators lock in identical replacements while they exist. Price-driven buyers weigh used 3WL against 3WA retrofit economics.

Role in the data center

Main and feeder ACBs across two decades of Siemens-equipped LV switchboards; the spares and retrofit decision now sits on every such lineup's maintenance plan.

Key specifications

Technical summary

Range: 630-6,300 A, three frame sizes Standards: IEC 60947-2; UL 1066 (US WL siblings) Trip units: ETU series, withdrawable and fixed builds Phase-out: production ends October 2026 Successor/retrofit: SENTRON 3WA with conversion kits Observed used: 3WL1112 1,250 A 4P at 5,000 USD Observed new-surplus: 3,200 A EO unit at 12,500 USD Observed 4,000 A class: 14,999 USD Acceptance rule: injection test (22% of aged LV breakers off-curve per NETA)

Pricing and availability

Published price range: $5,000 – $14,999. Trend: up Circuit breakers are up 47% since 2021 category-wide, and the 3WL's announced end date adds a scarcity kicker: new-surplus 3,200 A units at 12,500 USD already trade near half-frame-size used Masterpact levels. Expect firming through the October 2026 production stop, then a cap as 3WA retrofit kits absorb demand. Lead time, new: Orderable until October 2026; then retrofit/spares only. Lead time, used or refurbished: 1-4 weeks (dealer and eBay stock). Warranty, used: 1-year typical from reconditioning dealers.

Lifecycle and maintenance

LV power circuit breakers serve 30-40 years on 3-5 year maintenance cycles per ANSI/NETA MTS and NFPA 70B, with mechanism lubrication and injection testing the critical items. A deep reconditioning ecosystem (Relectric, NAS, Bay Power, Bullock) tests to NETA specifications and warrants units for 1 year. OEM trip-unit retrofit programs (Eaton PXR, ABB EntelliGuard R, Siemens 3WA retrofit) extend installed platforms past electronics obsolescence, which sustains used-breaker values.

Common failure points

• Mechanism springs and lubrication — Slow trips, trip-free on close, failure to latch on aged units
• Trip unit electronics — Nuisance trips or no-trip from aged or obsolete electronics
• Contacts and arc chutes — Overheating and interruption failure from eroded contacts or cracked chutes
• Secondary wiring — Control faults from damaged secondary disconnects and aux switches
• Provenance and counterfeits — Counterfeit or mis-labeled breakers fail catastrophically under fault
• Cassette and racking wear — Misalignment and cluster contact damage on worn cradles

Inspection checklist

Mechanism — exercise open/close 10+ cycles; verify charge/close/trip sequence without trip-free behavior Trip curve — primary injection test; NETA field data shows 22% of LV power breakers off their published curves Secondary injection — verify all 4 protection functions (LSIG) against settings; record as-found/as-left values Contact resistance — micro-ohm test each pole; investigate readings above 1.5x sister poles Insulation resistance — megger at 1,000 V per ANSI/NETA MTS acceptance tables Contact wear — inspect arcing contacts and wear indicators against the OEM replacement limit Arc chutes — remove and inspect for cracks, erosion, and metal splatter; replace damaged chutes Lubrication — verify mechanism grease condition; dried lubricant is the leading slow-trip cause on 20+ year units Racking — exercise draw-out mechanism through connect/test/disconnect; verify shutter operation Auxiliary wiring — verify secondary disconnects, charging motor voltage (24-125 V options), and aux contacts Trip unit vintage — identify electronics generation; obsolete trip units reprice the breaker toward core value Counterfeit screen — verify serial numbers with the OEM; counterfeit LV breakers documented since the 2007 CPSC recall Ratings match — confirm frame, sensor/rating plug, and interrupting rating (kA at 480 V) against the application Listing match — verify cassette/cradle compatibility and UL 1066 or UL 489 listing matches the switchgear type Records — factory test report, service history, and injection results; missing records reprice toward as-is

Procurement channels

eBay (INMATETO and peers), Surplus Record's Siemens breaker listings, and reconditioning dealers; trip-unit modules trade separately. Injection testing at acceptance is mandatory on aged units.
