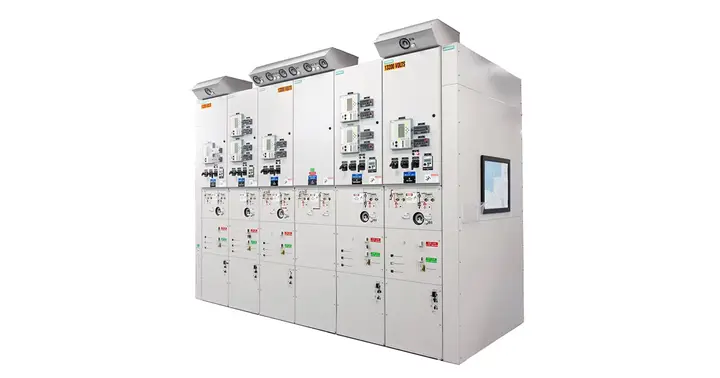

Siemens 8DB10 gas-insulated switchgear (double busbar)
Siemens 8DB10, the double-busbar variant of the 8DA/8DB GIS platform for redundancy-critical substations
Siemens 8DB10 gas-insulated switchgear (double busbar) is one of 41 data center switchgear tracked in the SecondWatt catalogue, each with specifications, lead times and indicative secondary-market pricing.
Siemens 8DB10 dossier: double-busbar GIS to 40.5 kV and 40 kA for redundancy-critical substations, attribution correction, market structure, inspection.
Why it matters
Double-busbar MV GIS is the redundancy endgame of compact switchgear, and its absence from every surplus channel proves the pattern this category documents: the more engineered the lineup, the less it trades. Buyers should plan spares and service contracts at purchase, because the secondary market will not rescue them later.
Who buys it
Transmission-adjacent utilities and redundancy-driven campuses specify 8DB10 for two-bus operating schemes; data center intake substations use it where concurrent maintainability extends to the MV bus itself. No used channel exists to serve, so spares and service contracts have to be negotiated at the time of purchase.
Role in the data center
Two-bus MV intake substations for campuses whose concurrent-maintainability requirements extend to the medium-voltage bus.
Key specifications
| Architecture | double busbar |
|---|---|
| Voltage classes | 12 / 24 / 40.5 kV |
| BIL | 75 / 125 / 185 kV |
| Busbar ceiling | 5,000 A |
| Short-time withstand | 40 kA / 3 s |
| Internal arc | IAC A FL / FLR 40 kA 1 s |
| Owner correction | Siemens AG Smart Infrastructure |
| SF6-free siblings | 8DAB 24 / 8DAB 40 (Clean Air) |
Technical summary
Architecture: double busbar (8DA10 = single) Voltage classes: 12 / 24 / 40.5 kV BIL: 75 / 125 / 185 kV Busbar: up to 5,000 A; feeders 2,750-3,150 A Short-time withstand: 40 kA / 3 s Internal arc: IAC A FL / A FLR 40 kA 1 s Interruption: vacuum; SF6 insulation only Mechanical endurance: 30,000 operations (vacuum interrupters) Standards: IEC 62271-1/-100/-200 SF6-free path: Clean Air 8DAB 24 / 8DAB 40 siblings Owner: Siemens AG Smart Infrastructure
Pricing and availability
Trend: up Lead time, new: 60-104 weeks (MV GIS class). Lead time, used or refurbished: No used channel (sealed-for-life). Warranty, used: 1-year typical from reconditioning dealers.
Lifecycle and maintenance
Gas-insulated switchgear targets 35-40 year service from sealed-for-life compartments with minimal maintenance: density monitoring, PD surveys, and mechanism service. Sealed tanks cannot be repaired in the field, so gas loss or internal fault usually ends the asset. EU F-gas and CARB rules add end-of-life SF6 recovery and reporting obligations that must be priced into any SF6 unit, while SF6-free designs (clean air, dry air, C4-FN mixtures) remove that liability entirely.
Common failure points
- Gas leakage — Density alarms and lockout; insulation margin lost as pressure falls
- Partial discharge in compartments — PD at spacers, particles, or terminations progressing to internal fault
- Operating mechanism — Spring and motor failures on switch and breaker drives
- Cable terminations — Tracking in cable boxes and poorly seated plug-in connectors
- Density monitor drift — False alarms or missed low-gas conditions from drifted gauges
- End-of-life gas liability — SF6 recovery and reporting costs land on the owner at decommissioning
Inspection checklist
Gas density — verify density monitors against nameplate fill (150 kPa class systems); alarm thresholds intact Leak rate — review gas top-up logs; leakage above 0.5% per year fails modern acceptance Gas quality — test SF6 moisture and decomposition before transfer; SO2 presence flags internal arcing F-gas compliance — verify EU 2024/573 and CARB status; new SF6 MV gear is barred from the EU market from 2026 Partial discharge — UHF or acoustic survey per IEC 60270 practice; PD is the dominant latent defect Vacuum interrupters — hipot test breaking units; interruption is vacuum even in gas-insulated designs Mechanism — exercise and verify spring charge; check counters against 10,000-operation class ratings Terminations — inspect cable boxes for tracking; verify stress cones and plug-in connectors seated Enclosure — verify sealed-compartment integrity (IP65 class HV parts), pressure relief, and corrosion Interlocks — verify 3-position switch logic (closed/open/earthed) and padlock provisions Gas handling — confirm certified handling equipment and trained personnel for any gas transfer Monitoring — verify density and PD telemetry channels report correctly to the control system Nameplate — confirm kV class, BIL (75-185 kV in MV GIS), kA rating, and busbar current Standards — IEC 62271-200 (or -203 HV) type-test documentation present and matching configuration Records — gas logs, factory routine tests, and service history; sealed units without logs reprice sharply
Procurement channels
Siemens channels only; zero secondary supply observed. Spares and service contracts at purchase are the availability strategy.
